Friedrich ES15M33 User Manual
Page 31
31

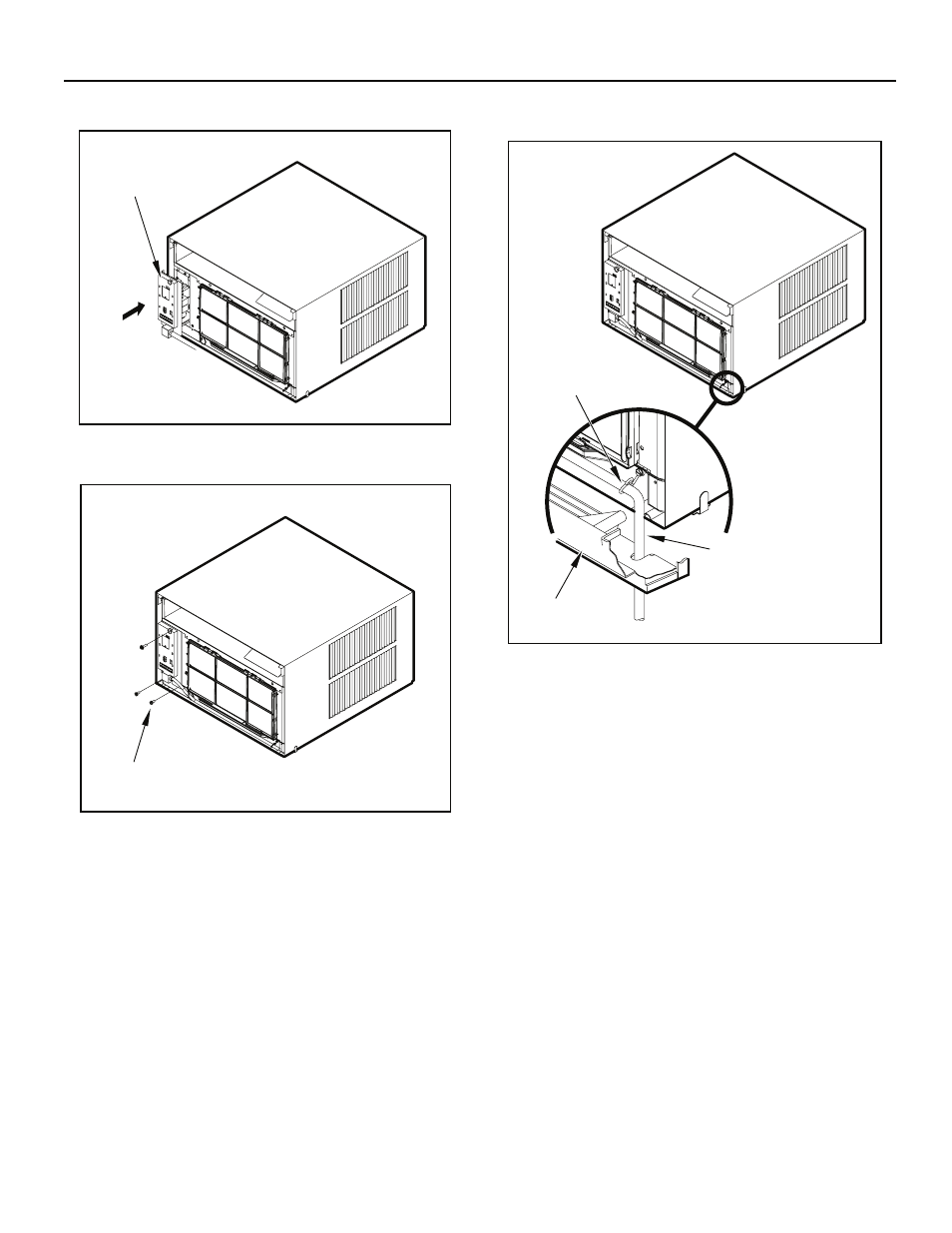

STEP 19.
Carefully push electrical control panel back into chassis.
FRR059
ELECTRICAL
CONTROL PANEL
Figure 35
STEP 20.
Reinstall the 3 screws removed earlier to secure electrical
control panel.
FRR060
ELECTRICAL CONTROL PANEL SCREWS (3)
(RETAINED FROM STEP 1)
STEP 21.
If running power cord to the right of the unit install the cord
into the cord retainer clips along the bottom front of the unit.
FRR061
CORD RETAINER
CLIPS
FRONT
GRILLE
POWER
CORD
Figure 36
Figure 37
