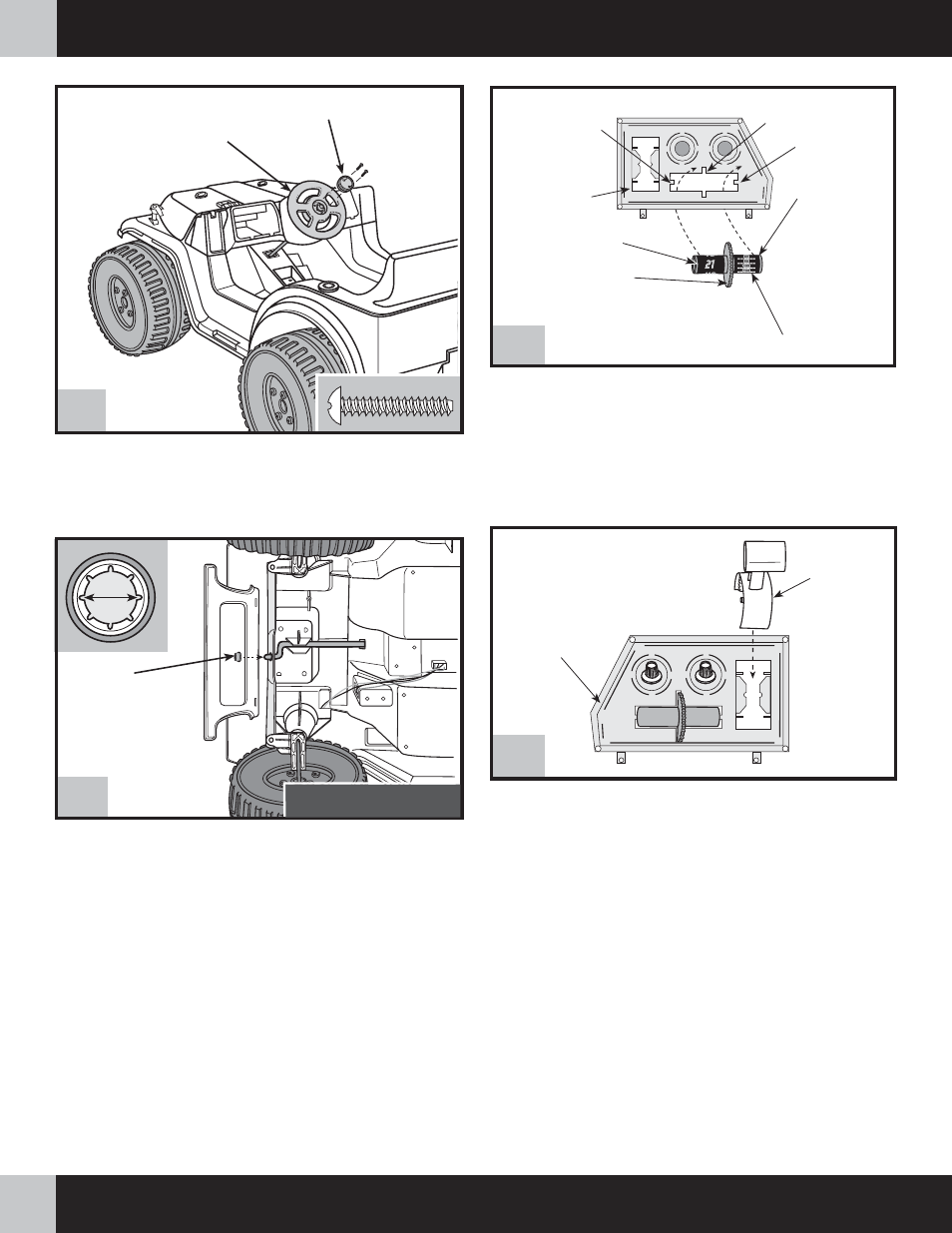

ASSEMBLY F
J0713pr-0920
7
• Fit the steering wheel cap into the center of the steering wheel with
the screw holes aligned.
• Insert two #8 x 1" screws into the holes in the steering wheel cap
and tighten.
• Position the vehicle body on its side.
• Fit a cap nut onto the end of the steering column.
• While supporting the steering column tap the cap nut with a hammer
to secure it on the steering column.
• Turn the vehicle body upright.
Cap Nut
5
6
8
Steering Wheel
Steering Wheel Cap
.437"
BOTTOM VIEW
• Using safety scissors, separate the activity panel and the instrument
panel. Dispose of the plastic connector.
• Apply labels 12 and 13 to the radio dial.
• From the back of the activity panel: fit one end of the radio dial onto a
tab on the activity panel; position the center gear in the slot; and then
press firmly to snap in the other end of the radio dial to the other tab
on the activity panel.
Radio Dial
Label 13
Label 12
Activity Panel
Gear
Slot
Tab
Tab
• Turn the activity panel over. With the wide part of the shifter handle
outward, insert and snap the shifter into the activity panel.
• Set the activity panel aside.
Activity Panel
Shifter
