FS-8700-24 ControlNet Driver Manual Page 5 of 12

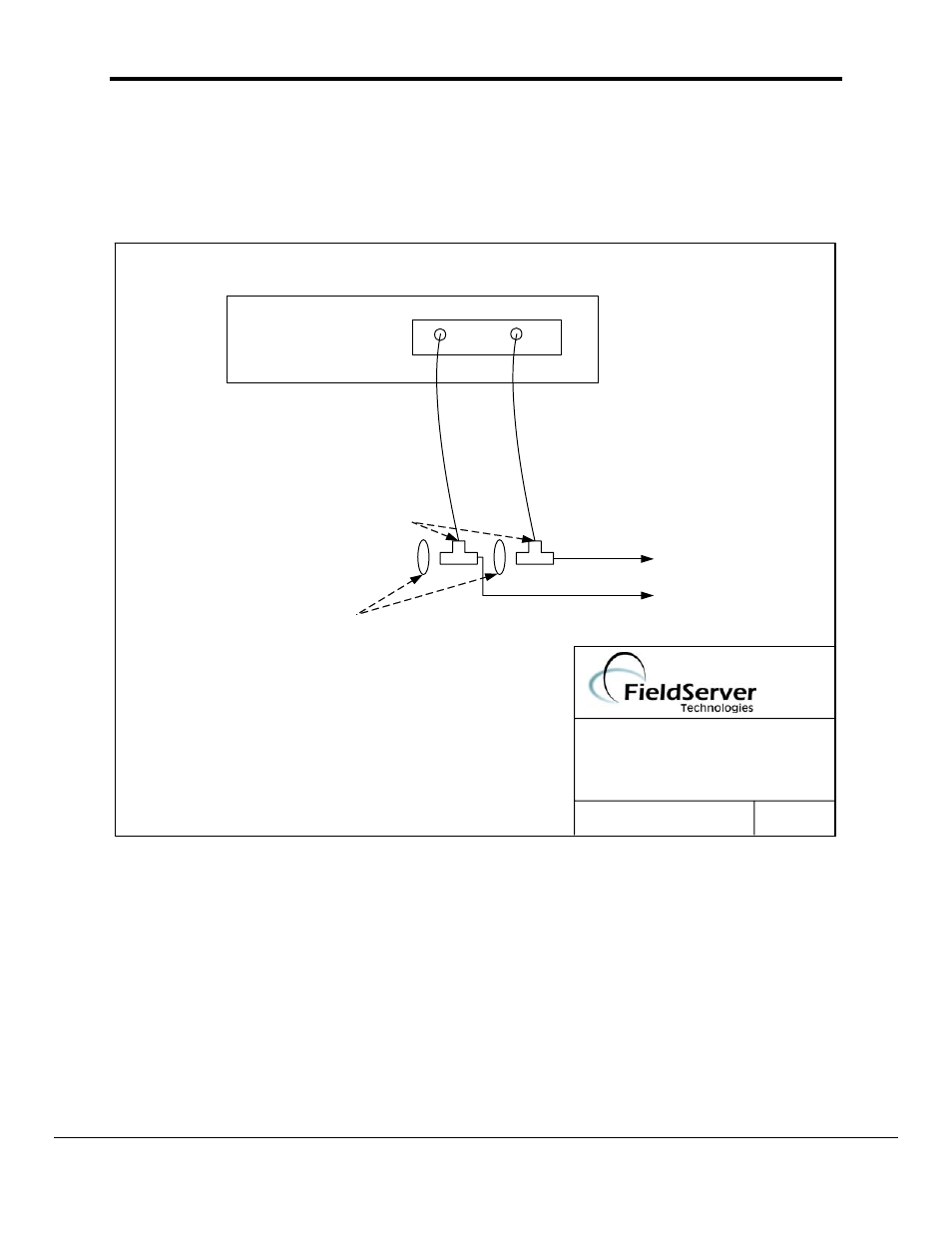

3. Hardware Connections
The FieldServer is connected to the ControlNet Network with 75 ohm coaxial cable. If the
ControlNet is not wired in redundant mode, ensure that all connectors are connected to the
COM A port. A 75 ohm terminator must be placed at either end of the ControlNet Bus.
BASE NAME:
FILE NAME:
FS8700-24
FIELDSERVER
CONTROLNET
CONNECTION DIAGRAM
DATE: 11/4/05
BY: MC
(408)-262-2299
FS-x40
SST-5136-CN-ISA
A B
To ControlNet Network
75 O network terminators
75 O T-pieces
