Fisher LNS-W03 User Manual

Page 4

MOUNT THE LENS COVER. (See figure-6)

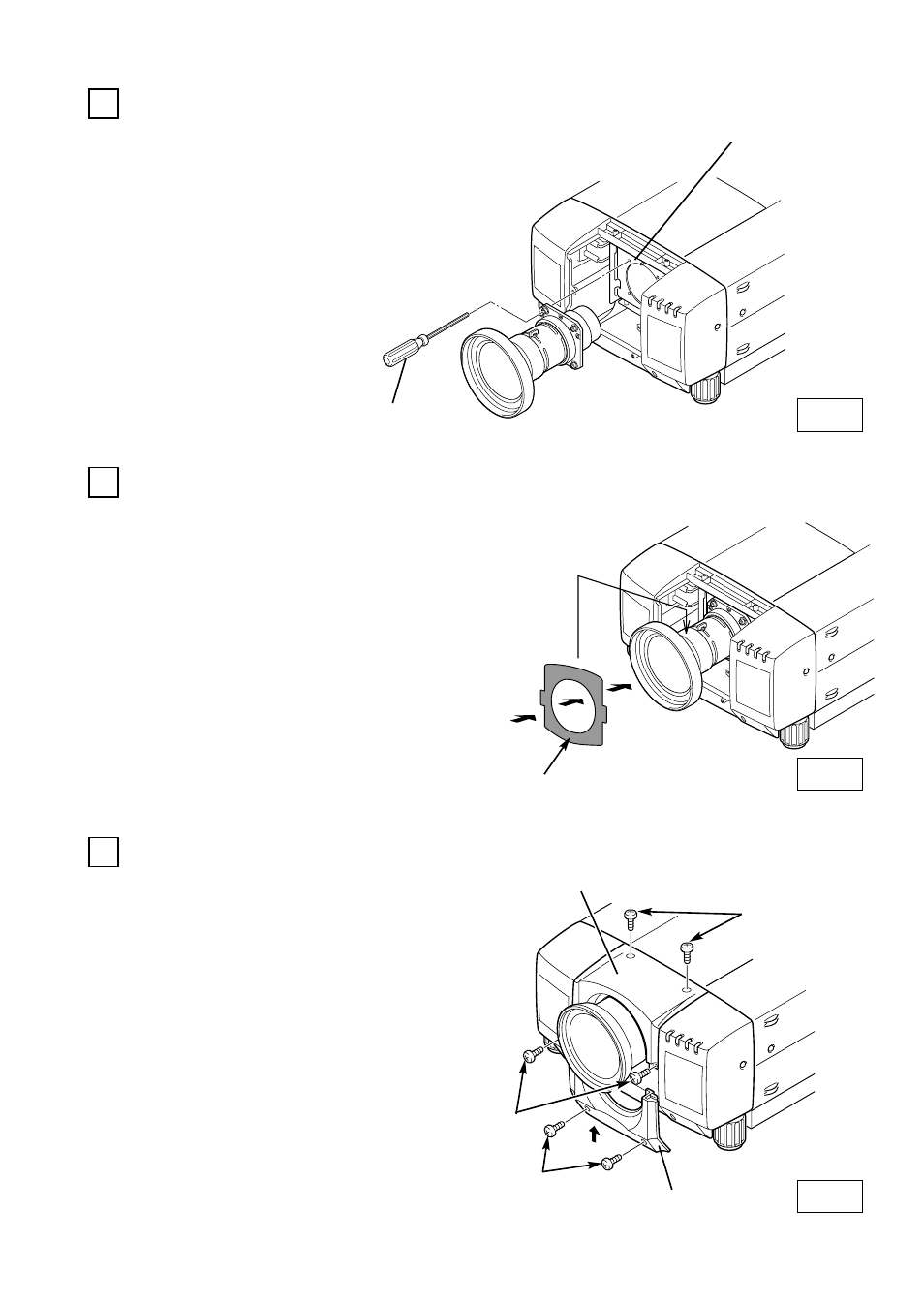

INSTALL THE LENS. (See figure-4)

1. Remove protective caps(front and

back) on the lens.

2. Mount the lens on mounting bracket

of the main cabinet with 4 screws.

Use the screws included with the lens.
Use the driver included with the lens to
fasten the screws.

(After using, keep it for latter use.)

INSTALL THE LIGHT-BLOCK SHEET. (See figure-5)

Install the light-block sheet around the lens
as shown in the illustration. Use the sheet
included with the lens.

Make sure the part no. and mark (TOP and
BACK) on Light-Block Sheet and set them
properly.

1. Insert the upper part lens cover and fix

them with screws A (4 screws).

2. Insert the lower part lens cover and fix

them with screws B. (2 screws).

LENS MOUNTING BRACKET

ATTACHED DRIVER

UPPER LENS COVER

LOWER LENS COVER

Fig-4

Fig-5

Fig-6

When in install the both upper and lower
lens covers, install the light-block sheet so
that it should be placed in the guide slot.
(place of the cover plate had been placed.
See figure-2.) If the installation of light-block
sheet is incorrect, it will be the cause of
leakage of light or the dust entering at the
main cabinet.

LIGHT-BLOCK SHEET
Type FE1
(Part No. 610 280 2634)

-3-

ADJUST FOCUS

Adjust focus following Focus Adjustment on
page 6.
