5. MAINTENANCE, ADJUSTMENTS AND CALIBRATIONS
Page 123
© 2007 DH Instruments, a Fluke Company
Table 26. RPM4 Illustrated Parts Breakdown of Electronic Chassis (see Figure 20)
# REQUIRED
DESCRIPTION
PART NO.
1 Micro
card
401365
4 Standoff
SS-5172-200-00
10 Screw
.30C80KCSS
11 Lock
washer
.30NLOCS
1 Driver
board
401745
1 Power
supply
103284
4 Standoff
.30C300SFTS
4 Washer
.30NWSFS
1
Cable assembly, DC power
401962
1
Cable assembly, AC power
401964

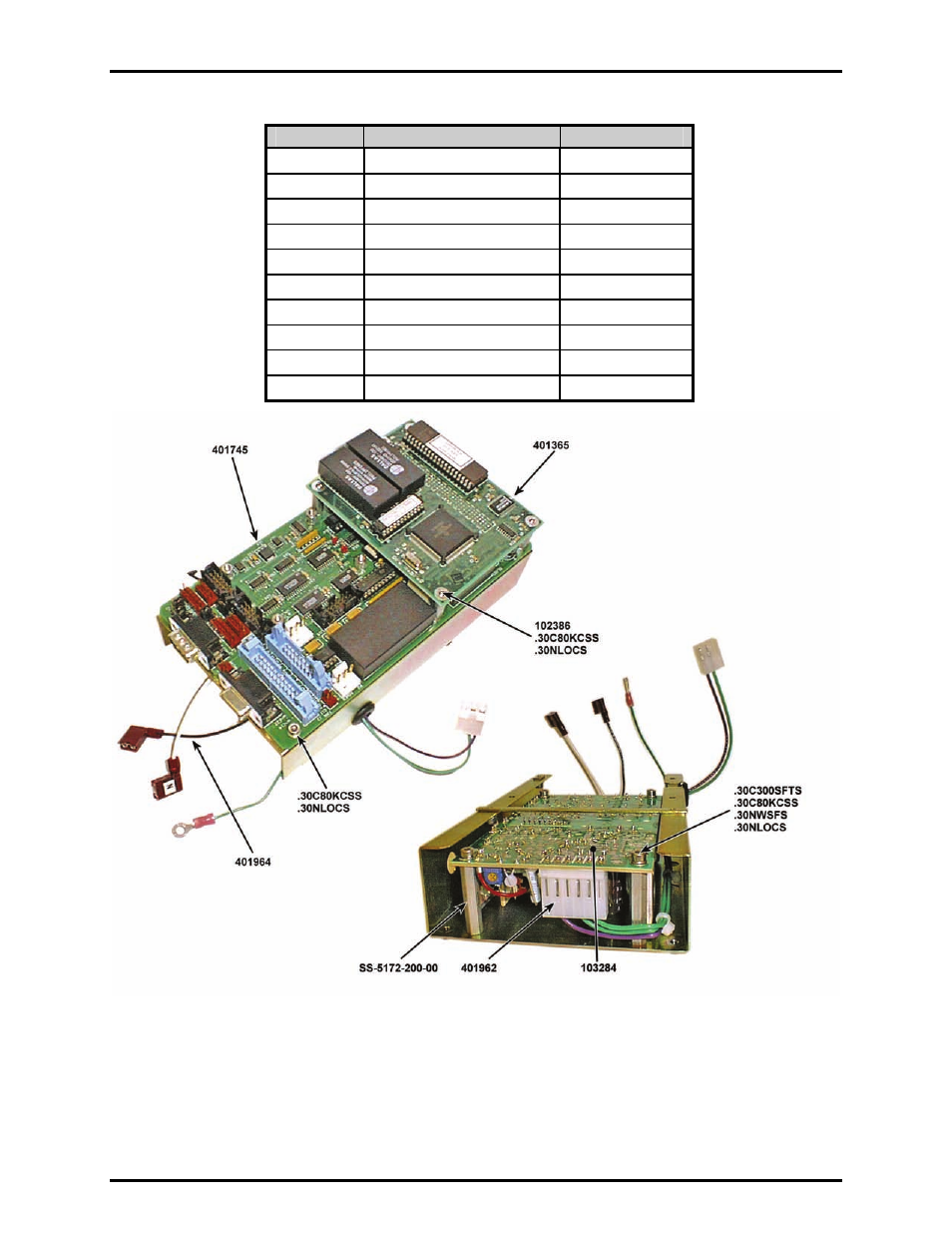

Figure 20. RPM4 Illustrated Parts Breakdown of Electronic Chassis
