Table 24. RPM4 Illustrated Parts Breakdown of Internal Assembly (see Figure 18)
# REQUIRED
DESCRIPTION
PART NO.
1 Bracket,
barometer
123549
1 Barometer
assembly
401898-06
1 Cable
assembly,
barometer
401966
8 Screw
.30C60KCSS
14 Lock
washer
.30NLOCS
6 Screw
122037-Z
1 Adaptor
APCR206CR16WN
1 Tubing,
vinyl
APO2PV170
1 Tubing,
polyurethane
3814-7-BK-RL
1 Ferrite
sleeve
ZCAT1518-0730T
1 Electronic
chassis
123565
5 Nut
123707
5 Screw
100550-Z

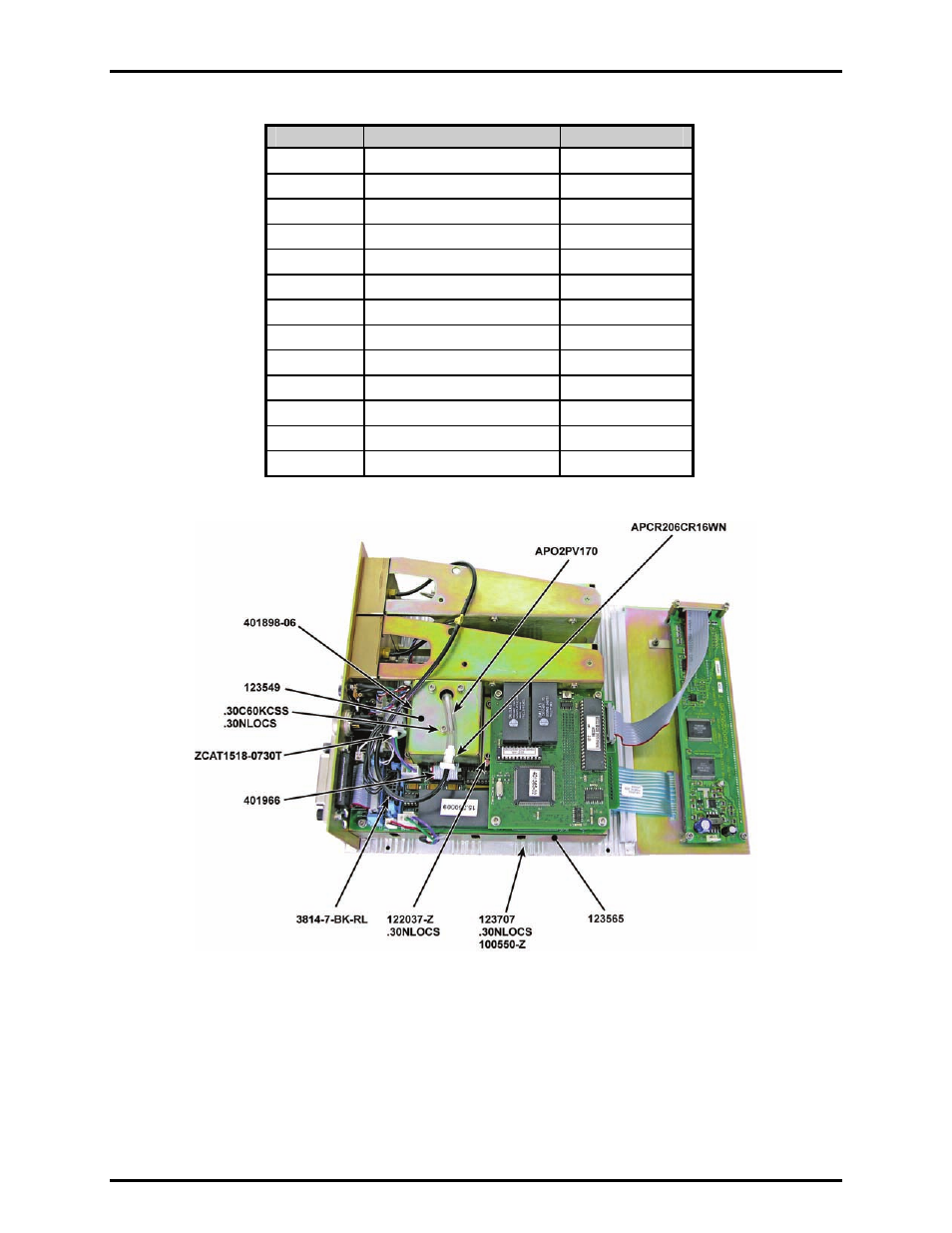

Figure 18. RPM4 Illustrated Parts Breakdown of Internal Assembly
