RPM4/HPMS A70M/A20M-AF OPERATION AND MAINTENANCE MANUAL
© 2007 DH Instruments, a Fluke Company Page 122
Table 25. RPM4 Illustrated Parts Breakdown of Internal Assembly (see Figure 19)
# REQUIRED DESCRIPTION PART NO.
1 Manifold, A20M 123521
1 Manifold, A70M 124410
14 Screw, M3 .30C60KCSS
14 Lock washer, M3 .30NLOCS
4 o-ring, 5-193 5-193-V884-75
2 Bracket, transducer 123583
2 Cowling, transducer 123511
2 Transducer 807029
1 Tee 209-1
2 Union SS-100-6
2 Adaptor, ss SS-100-1-0S
2 Adaptor, barb MH-1012-V
1 Plug, ss 124411

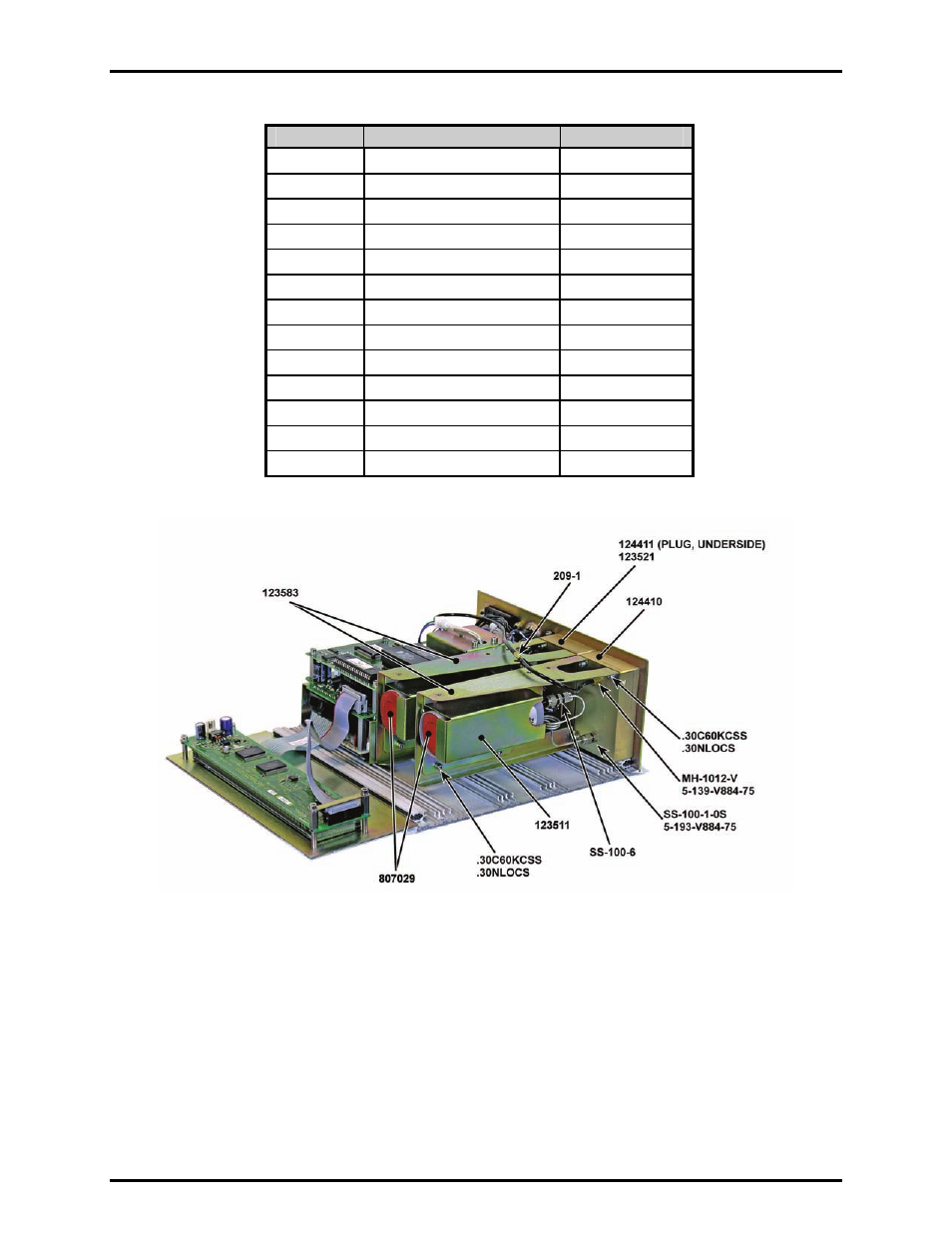

Figure 19. RPM4 Illustrated Parts Breakdown of Internal Assembly
