RPM4/HPMS A70M/A20M-AF OPERATION AND MAINTENANCE MANUAL
© 2007 DH Instruments, a Fluke Company
Page 118
5.4.4.7
COOLING FAN
The cooling fan is mounted on the RPM4 rear panel and connected to the main
board. It is a 12V brushless DC fan.
5.4.5
Q-RPT MODULE PNEUMATIC SCHEMATIC

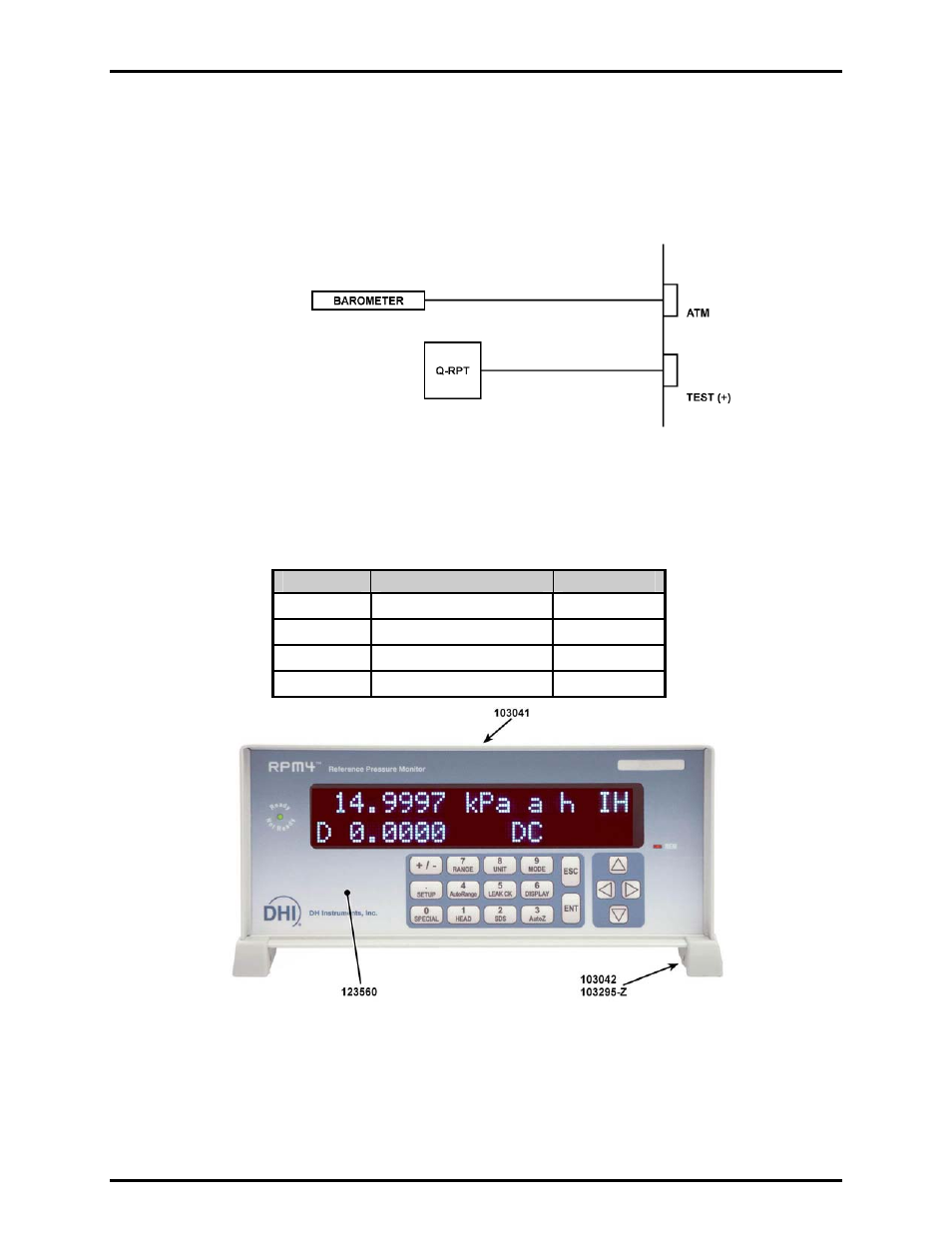

Figure 14. Pneumatic schematic of RPM4 Q-RPT Module
5.5
RPM4 ILLUSTRATED PARTS BREAKDOWN
Table 21. RPM4 Front Panel Illustrated Parts Breakdown (see Figure 15)
# REQUIRED
DESCRIPTION
PART NO.
1 Enclosure,
top
103041
4 Feet,
set
103042
4 Screw,
feet
103295-z
1
Key pad overlay
123560
Figure 15. RPM4 Illustrated Parts Breakdown of Front Panel
