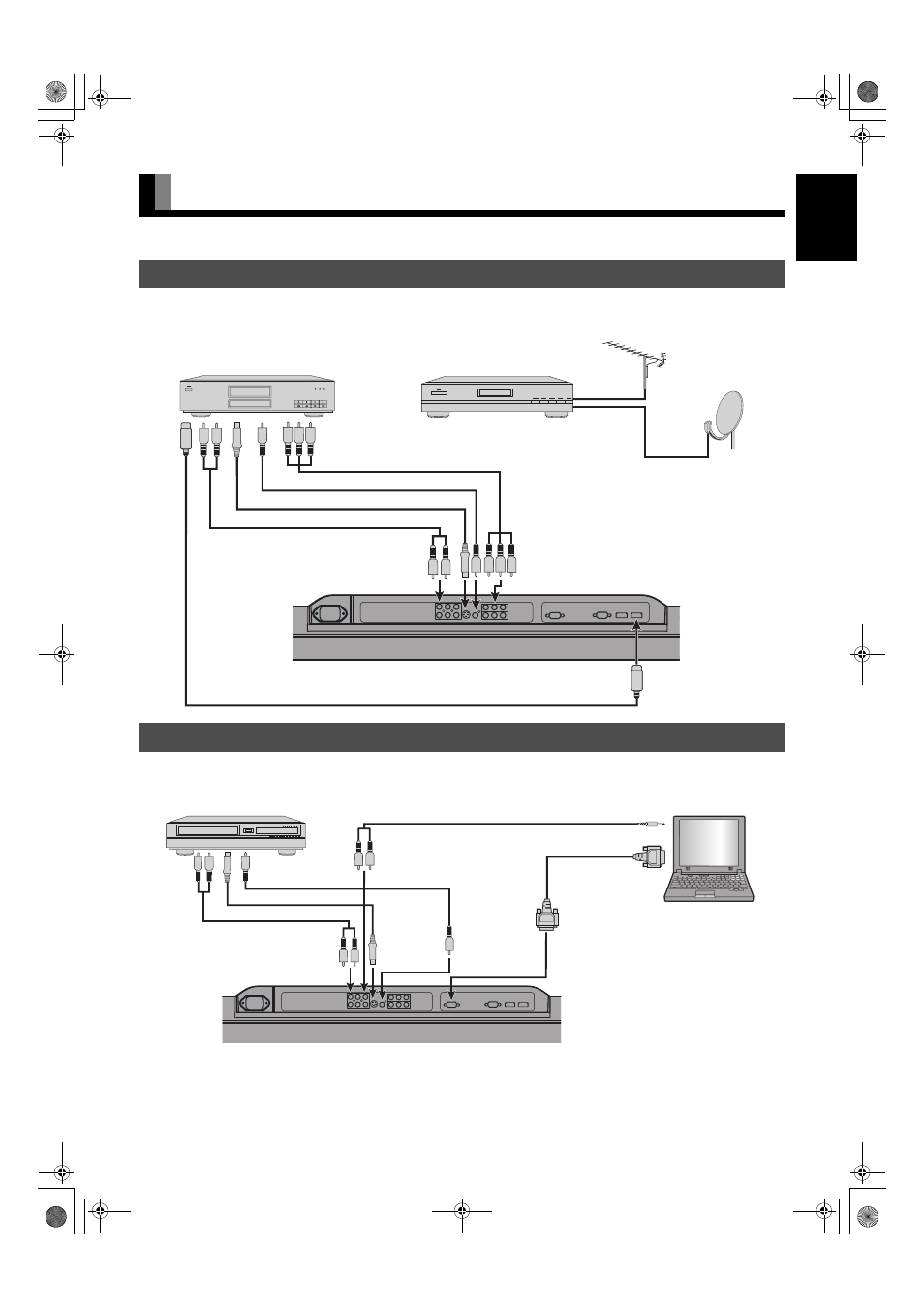

CONNECTING THE DISPLAY TO EXTERNAL EQUIPMENT
• Connect the video signal cable to the HDMI input terminal, component video input terminal, S-video input terminal, or the video input terminal.
• If the equipment to be connected is equipped with HDMI output terminal and component video output terminal, it is recommended to
connect to one side or the other. (If the HDMI output is connected, an Audio signal cable does not need to be connected.)
• Connect the video signal cable to either the S-video input terminal or the video input terminal.
• If the unit to be connected is equipped with S-video output terminal, it is recommended to connect to the S-video terminal.
• As the cable for connecting a PC differs with the PC model, please consult your dealer for information on the right cable to purchase.
DVD RECORDER/PLAYER, SATELLITE TUNER
VCR/PC
To S-video output
To video output
To component video output
To audio outputs
Antenna (commercially available product)
To HDMI output
To HDMI input
To video input
To S-video input
To audio inputs
Display bottom
To component video input
To video output
To S-video output
To audio outputs
To S-video
input
To audio inputs
To video
input
Display bottom
To RGB output
(mD-sub)
To RGB input
(mD-sub)
To audio inputs
To audio output
Note
• Unplug the power cord from the AC outlet before you connect external components.
• Also refer to the instructions for the component to be connected.
• When inputting audio, connect to the terminals corresponding to the used video input or RGB input.
