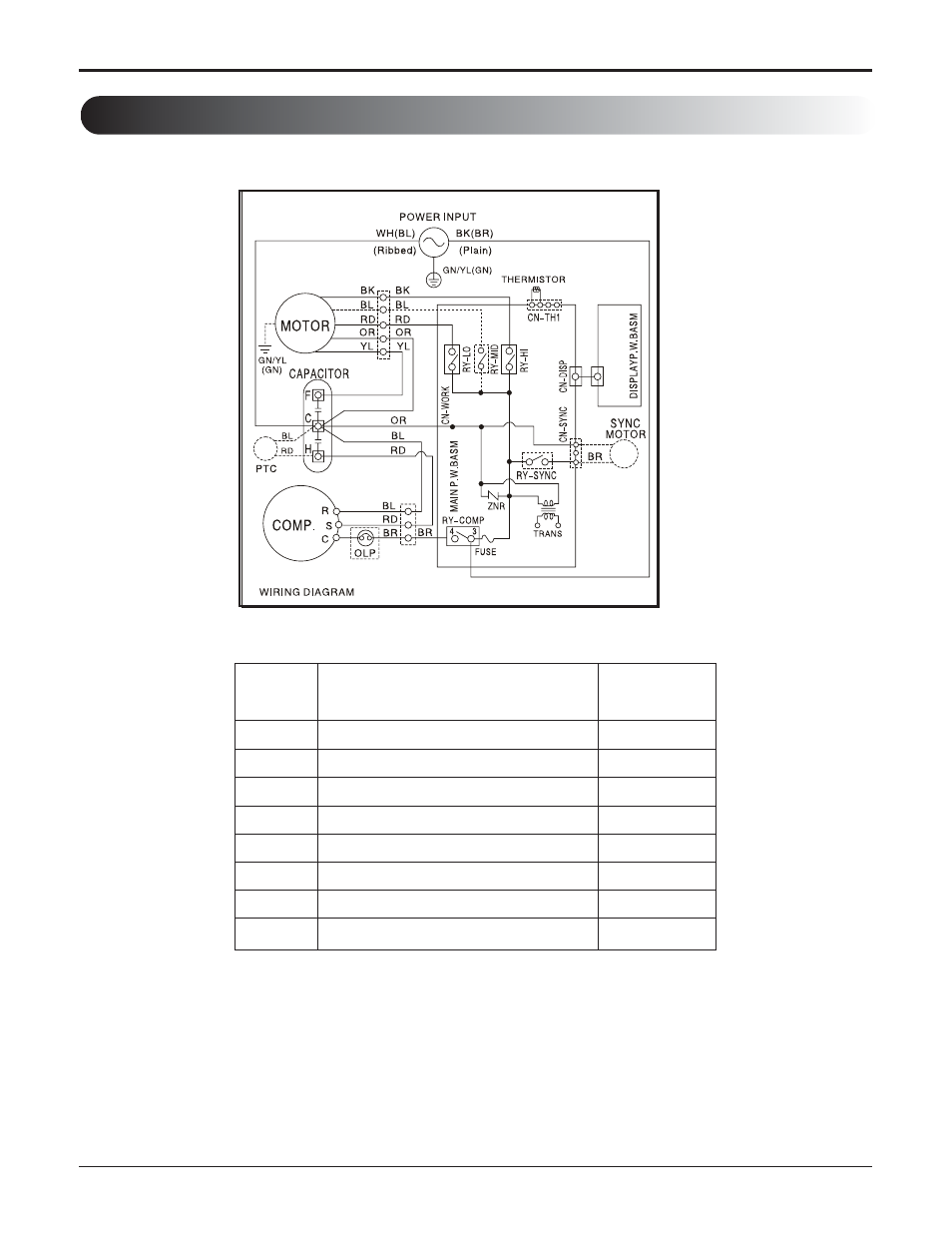

Schematic Diagram

Circuit Diagram

LOCATION

NO.

1

2

3

4

5

6

7

8

Q'TY

PER SET

1

1

1

1

1

1

1

1

DESCRIPTION

POWER CORD ASSEMBLY

FAN MOTOR

COMPRESSOR

DISPLAY P.W.B ASSEMBLY

MAIN P.W.B ASSEMBLY

THERMISTOR

CAPACITOR

OWERLOAD PROTECTOR

(SMPS)

250V/T2A
(250V/T3.15A)

MEZ62420707

WH
(BL)

15

Room Air Conditioner
