1. INSTALLATION
1-13
Note 1: Use cable type DPYC-1.5 (or equivalent) for the power cable.
Conductor
S = 1.5 mm
φ
= 1.56 mm
2
DPYC-1.5
Armor
Sheath
φ
= 11.7 mm

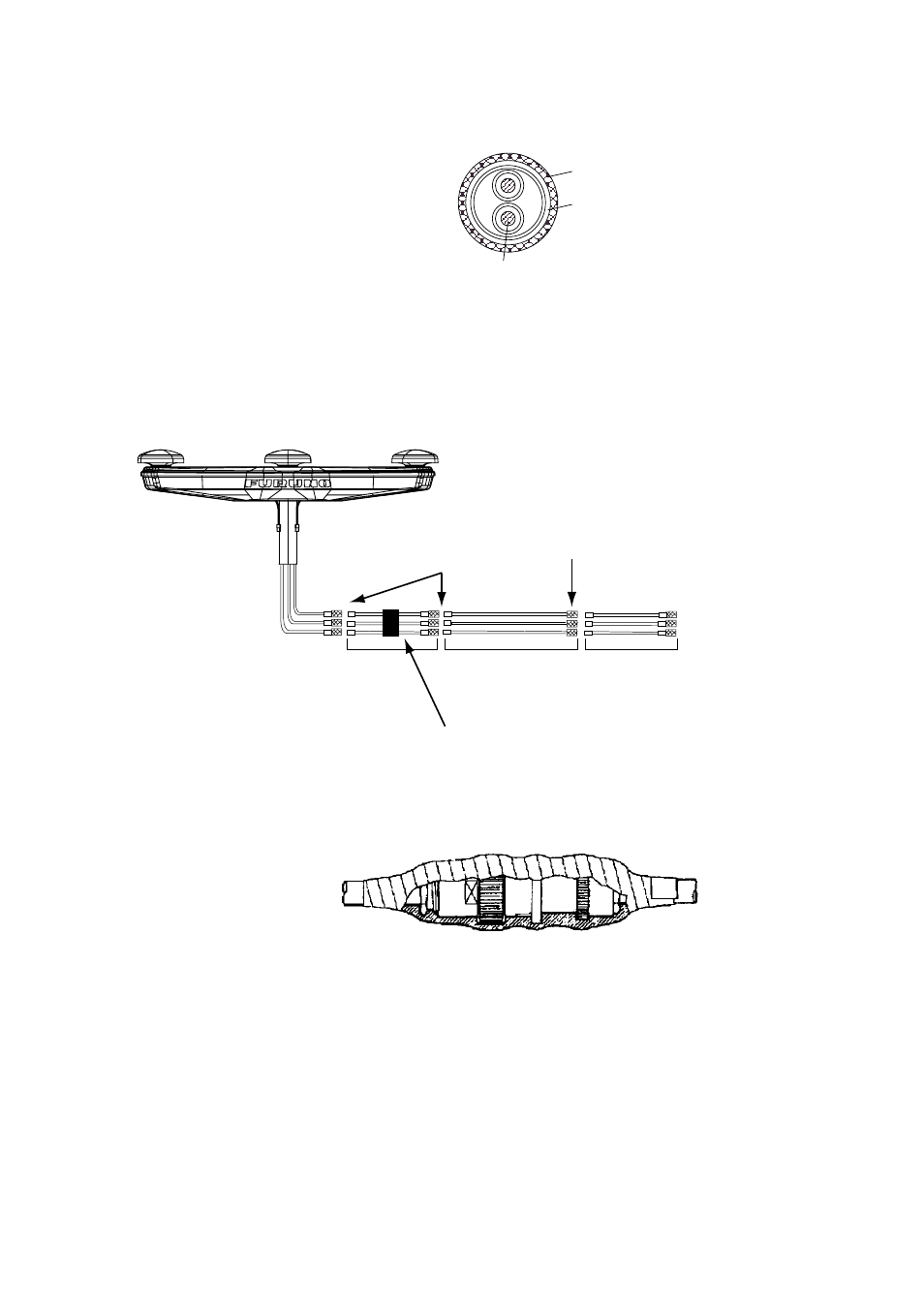

Sectional view of coaxial cable DPYC-1.5
Note 2:
The optional antenna cable set (CP20-01700 or CP20-01710) allows
you to extend antenna cable length to 30 m (50 m). See next page for
how to attach the connector.
1 m 1 m 30 or 50 m
Attach connector
N-P-8DFB in field;
wrap each junction with tape.
Wrap each
junction with
tape.
Collectively wrap the coaxial cables with vulcanizing
tape at the point where they are fastened with the
cable tie.
To processor
unit
How to install the optional antenna cable set
