PREFACE
22
INSTALLING THE
CD PLAYER
Unpacking
The 808 Signature Reference CD Player is supplied with the following
accessories:
• MSR+ remote control with batteries, manual, and spare key caps.
• Meridian Comms lead.
• Power cord.
• This manual.
If any of these items are missing please contact your dealer.
NOTE: You should retain the packaging in case you need to transport the
unit.

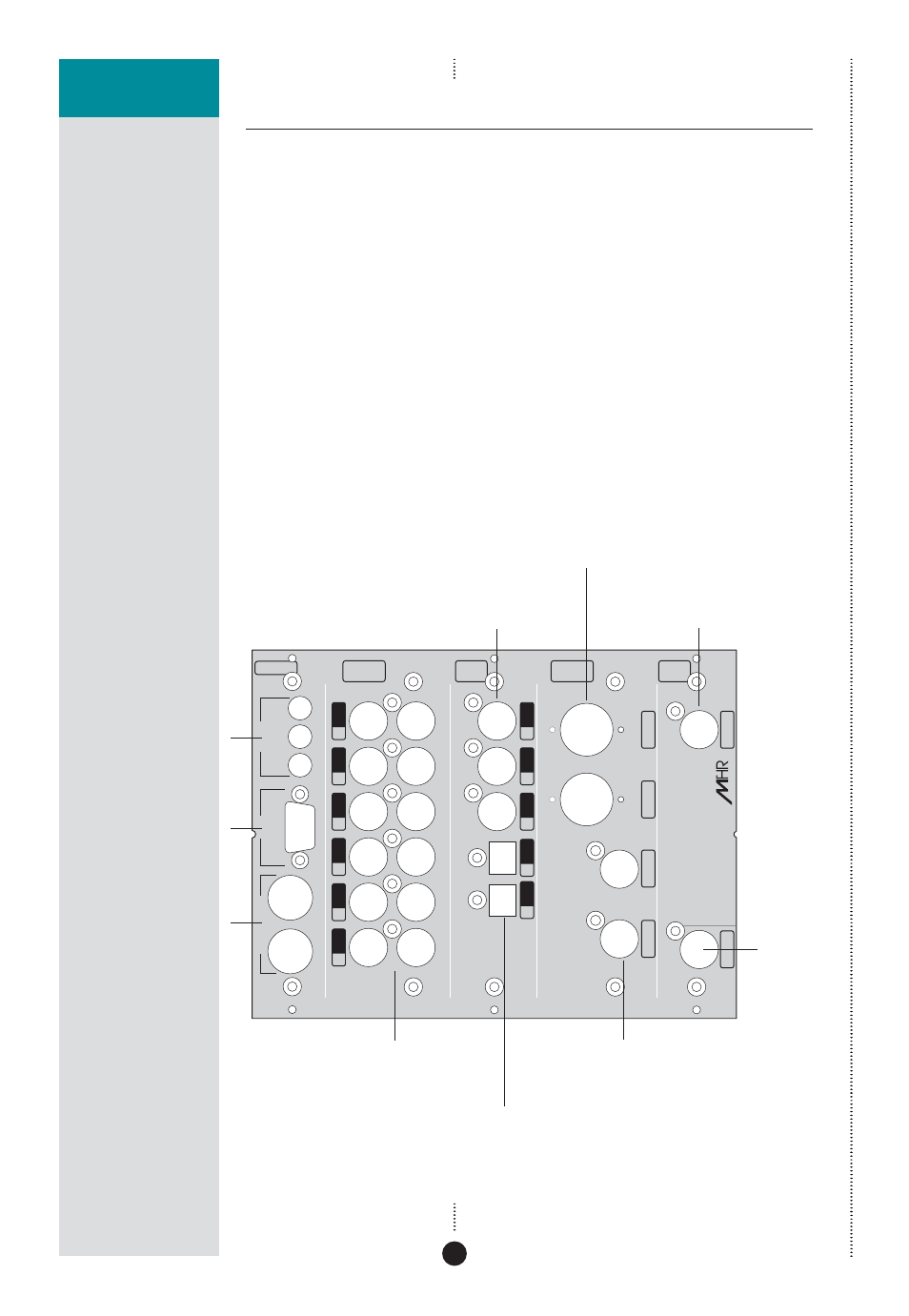

Back panel
The following diagram gives details of the back panel connections:
DIGITAL
OUTPUT
MAIN
MERIDIAN COMMS
3
TRIGGER
2
1
RS232
COMPUTER ANALOGUE
INPUT
ANALOGUE
OUTPUT
DIGITAL
INPUT
RIGHT
LEFT
LEFT
O2
O1
D3
D2
D1
GAME
SAT
DISC
AUX
DVD
A6
RIGHT LEFT
RIGHT LEFT
A5
A4
A3
A2
A1
RIGHT
AUX
VCR2
VCR1
TAPE
CABLE
TV
RADIO
Auxiliary
digital
output
(not always
available)
Meridian
Comms
RS232
connections
Trigger
outputs
Analogue inputs
(808i only)
Digital optical inputs
(808i only)
Unbalanced
analogue outputs
Digital coax inputs
(808i only)
Balanced analogue
outputs
Digital coax outputs
