Assembly

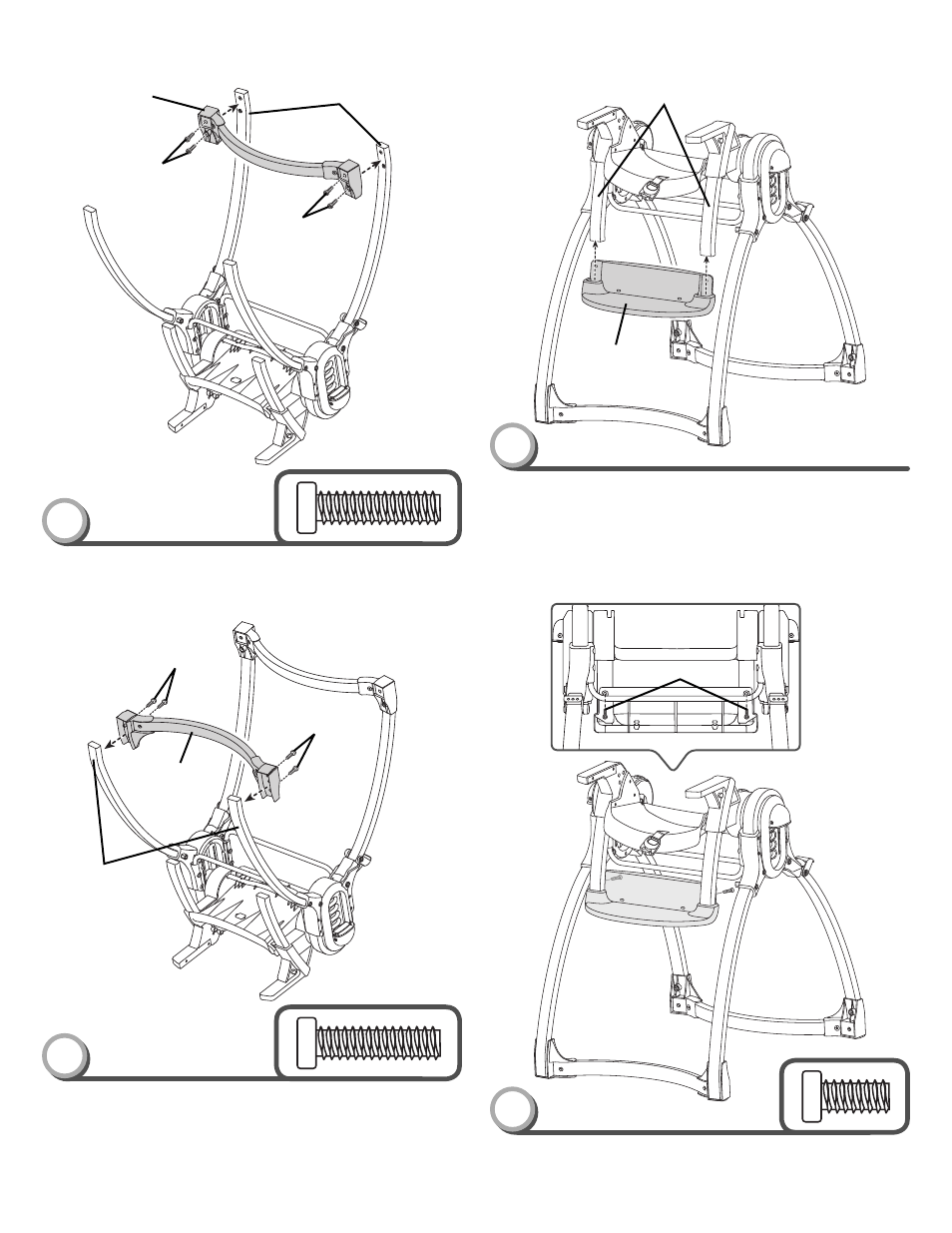

Fit the back base onto the bottom of both back legs, as shown.
•
Insert two M6 x 28mm screws into
•
each back leg and tighten.
Fit the sockets on the footrest onto the posts on the front of
•
the assembly.
Slide the footrest up onto the posts.
•
Hint: You may want to lower the seat to assemble the footrest.
Refer to page 13 for instructions to lower the seat.
Fit the front base onto the bottom of both front legs.
•
Insert two M6 x 28mm screws into
•
each front leg and tighten.
Turn the assembly upright.
•
9
10
Back Base
M6 x 28mm
Screws
M6 x 28mm
Screws
Back Legs
Front Base
Front Legs
Footrest
Posts
11
While holding the footrest in place, insert two M6 x 15mm screws
•
into the holes on the back of the footrest and tighten.
12
BACK VIEW
M6 x 15mm Screws
M6 x 28mm
Screws
M6 x 28mm
Screws
