Window locking
bracket
Fig. 9
Fig. 10

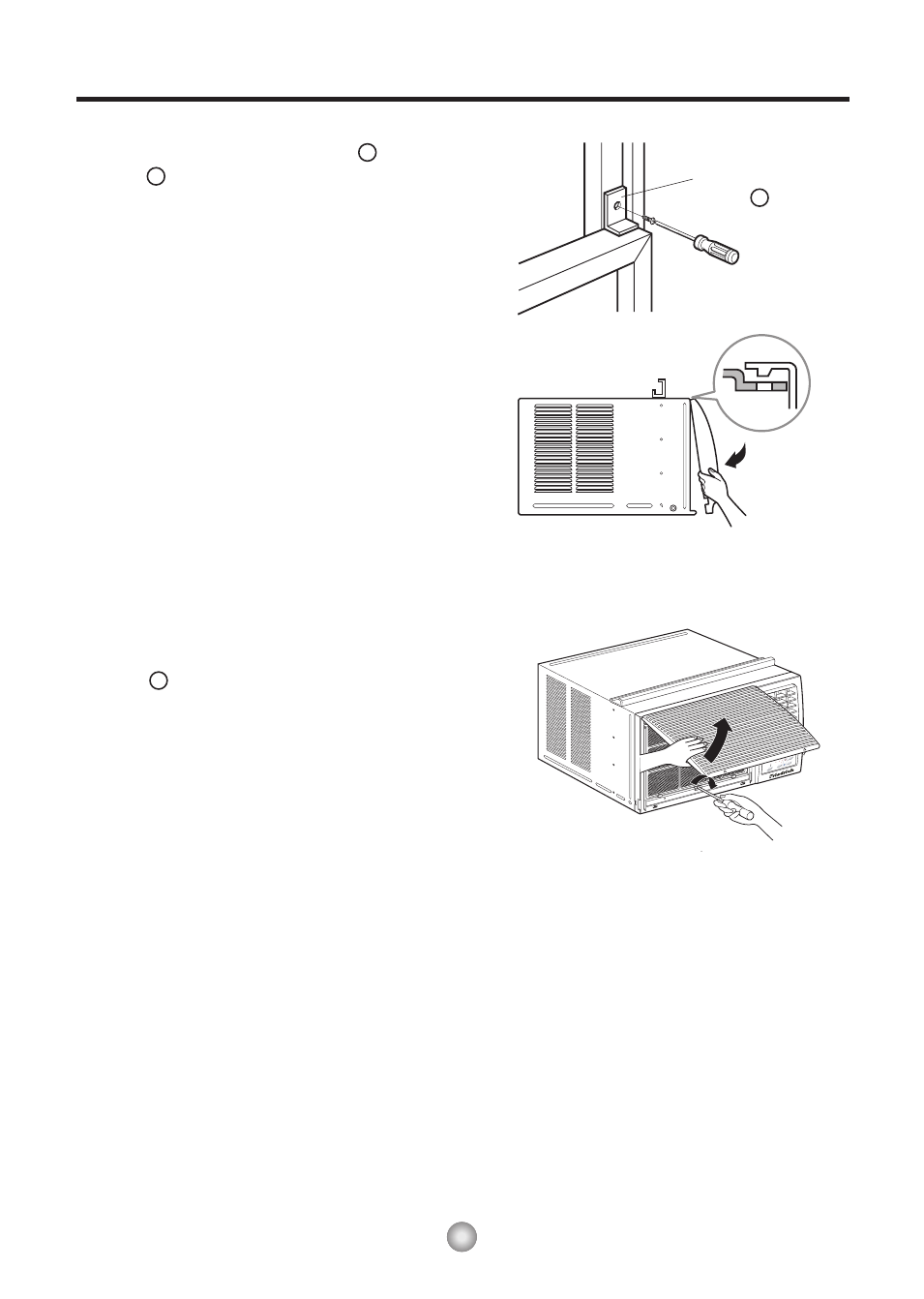

12. Attach the Window Locking Bracket with a Type C
screw . ( Fig. 9)
13. Attach the front grille to the cabinet by inserting the
tabs on the grille into the tabs on the front of the
cabinet. Push the grille in until it snaps into place.
(Fig. 10)
14. Pull down the inlet grille and secure it with a Type A
screw through the front grille. ( Fig. 11)
15. Window installation of room air conditioner is now
completed. See ELECTRICAL DATA for
plugging the power cord into the properly
rated electrical outlet.
10
10
3
1
Fig. 11
Power Mode Timer 0n/0f f
Temp Cool Mone y Saver ® Fan Only Dry
Auto Swin g
