4
En
Connecting the speakers
Caution: Make sure the power cables for your other AV components are disconnected from the AC wall outlets
before making any connections.

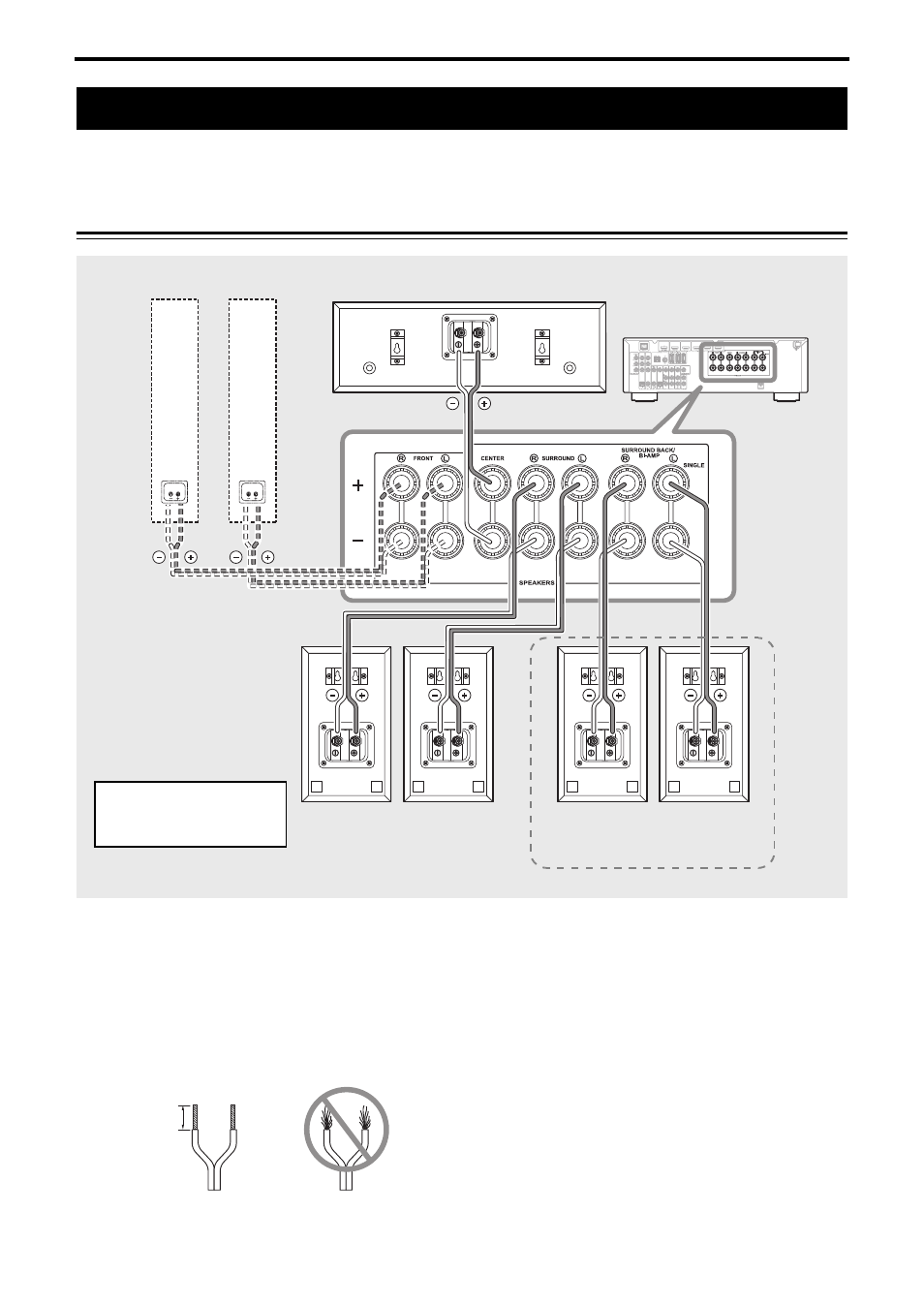

Connection diagram
■ Preparing the speaker cables
Once you’ve positioned the speakers, you’ll need to
prepare the speaker cables for connecting the
speakers.
1
Remove about 15 mm (5/8") of insulation from
the end of each speaker cable.
2
Twist the bare wires tightly.
Notes
• Do not bundle or roll up excess cable.
• Twist the bare wires tightly so the individual strands
are not splayed.
• Be careful not to injure yourself while preparing the
speaker cables.
Connecting the speakers
Center speaker
Amplifier
Front speakers
Right Left
Note: The exact layout of
the speaker terminals
depends on your amplifier.
Surround speakers
Right Left
Surround back speakers
(NS-PA150 only)
Right Left
Good No Good
15 mm (5/8")
