Assembly

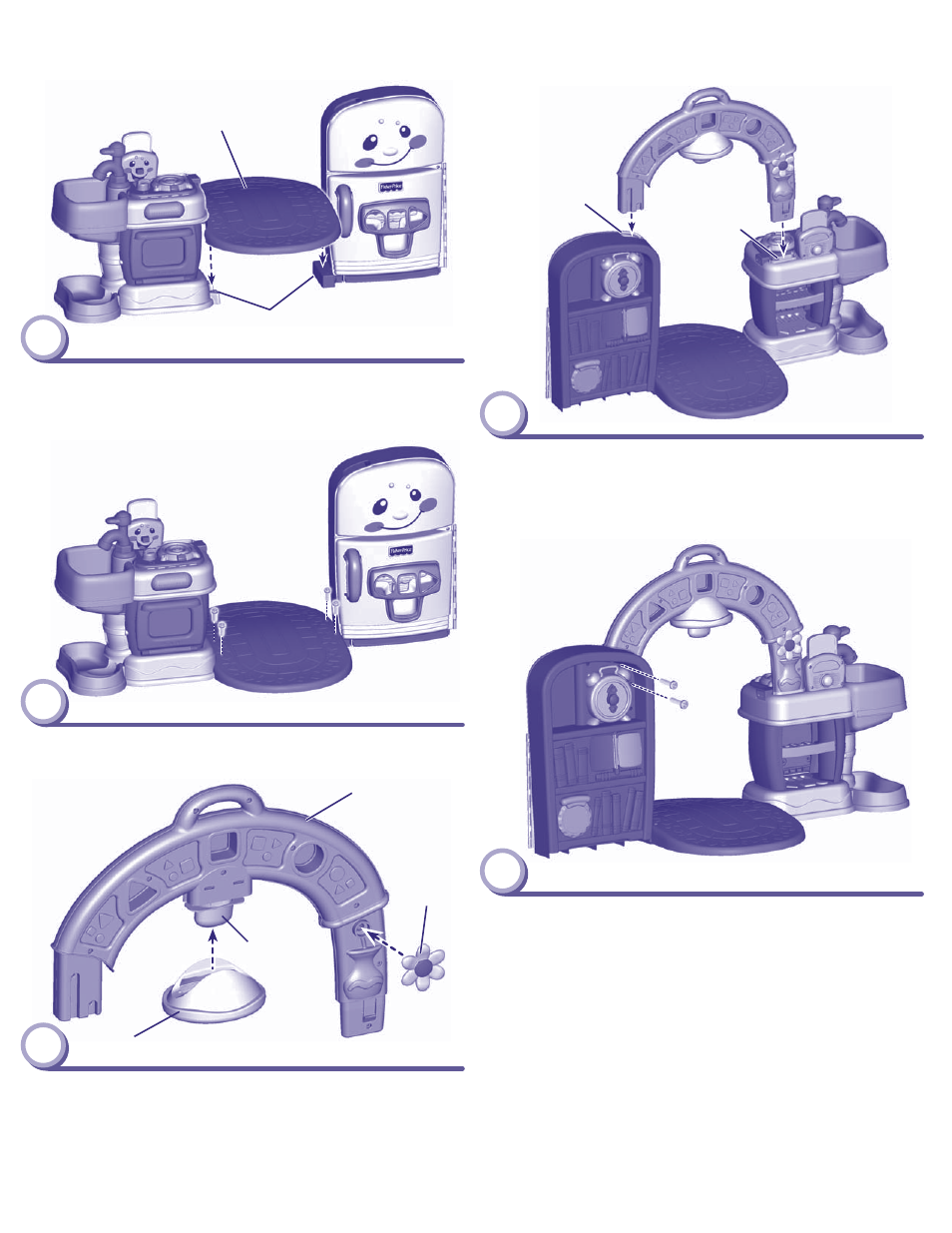

• Position the main assembly and the refrigerator as shown.
• Fit the rug grooves to the tabs on the base of the main assembly
and the tab on the base of the refrigerator.
Rug
• Position the arch with the shapes facing you. Slide and "snap" the
kitchen light to the arch over the "light bulb".
Hint: The kitchen light is designed to be assembled to the arch one
way. If it doesn't "snap" onto the arch, turn it around and try again.
• Check to be sure the kitchen light is assembled properly by pulling it
down. If you can remove it, please repeat this assembly step.
• Insert and "snap" the flower into the hole in the arch.
Arch
(Shapes Side)
• Insert two screws into the back of the refrigerator, near the clock.
Tighten the screws.
Assembly is now complete.
Flower
Kitchen Light
• Insert four screws into the rug and tighten.
Tabs
5
"Light
Bulb"
Slot
Slot
1 9
1 10
1 11
1 12
• Insert and "snap" the arch into the slot in the top of the
refrigerator and the countertop.
1 13
