3
FGH
First
Please connect
cable system or
an antenna to the
terminal on the back
Then press the MENU key
2 3
1
4
7 8
0 9
5 6
INPUT
CAPTIO N SLEEP MENU
MUTE
RECAL L
POW ER RESET
DVD SAT AUX
VCR TV CABLE
VOL
VOL
CH
CH
TRAC KING
STOP REC
PAUSE
DISPL AY V-GUID E
ENTER PLAY
UHF/VHF/CATV
75 Ω
Please wait
TV is searching
for your channels
AS
MENU CH VOL VOL POWER CH + _
MENU
❷
❸
❹

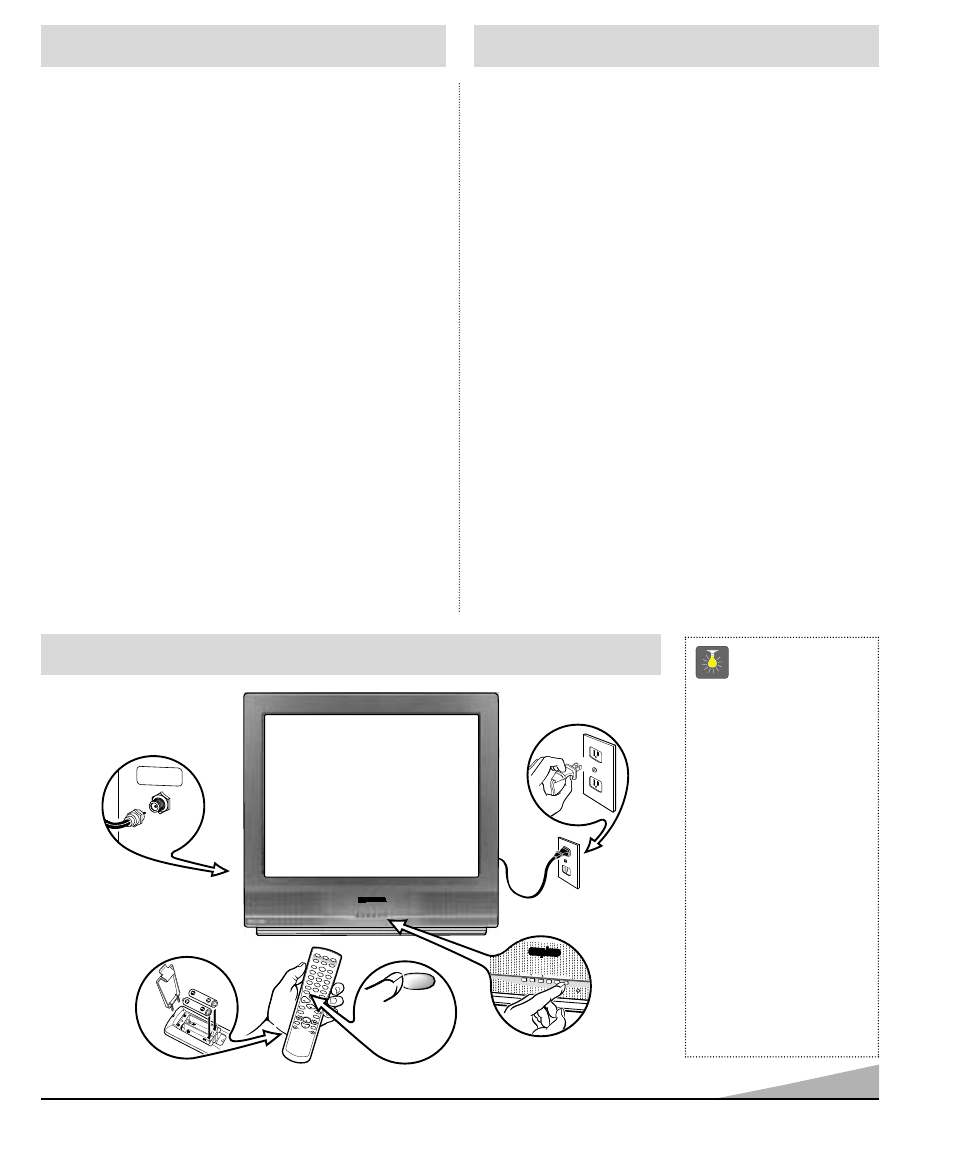

BASIC SETUP
(See Hookup
on page 4.)
❺ ➊
(Install batteries, see page 5.)
(Switch on Power.)
QuickTips
■ Do not position the TV
in a confined area.
Allow normal air circu-
lation for electronic
parts.
■ Position your TV at
least 2 feet from stereo
speakers. The magnets
in the speakers may
affect the picture
quality.
■
The TV will automati-
cally select the correct
Antenna mode for the
type of signal you
connect.
SPECIFICATIONS
PICTURE TUBE SIZE
(Measured Diagonally) . . . . . . . . . . 27-inch Flat screen
PICTURE RESOLUTION . . . . . . . . . 330 Lines
. . . . . . . . . . . . . . . . . . . . . . . . . . . Video Input 700 Lines
ANTENNA INPUT . . . . . . . . . . . . . . UHF/ VHF/CATV 75
Ω
POWER REQUIREMENT . . . . . . . . . 120VAC 60Hz
POWER . . . . . . . . . . . . . . . . . . . . . 110.7 watts
HORIZONTAL DIM. (Width) . . . . . . . 26.1 in. (664mm)
VERTICAL DIM. (Height) . . . . . . . . 24.7 in. (629mm)
DEPTH DIM. (Thickness) . . . . . . . 19.3 in. (489mm)
WEIGHT (Approx.) . . . . . . . . . . . . . 88.2 lbs. (40.0 Kg.)
SOUND . . . . . . . . . . . . . . . . . . . 2 Speakers, Size 8 cm
AMPLIFIER . . . . . . . . . . . . . . . . . . Built-in with 3.W/Ch
A/V INPUT JACKS . . . . . . . . . . . . . Video Input and Audio Input
. . . . . . . . . . . . . . . . . . . . . . . . . . . (2 sets-R/L),
. . . . . . . . . . . . . . . . . . . . . . . . . . S-Video Input (2 sets)
AUDIO OUTPUT JACKS . . . . . . . . . Audio Output (R/L-Fixed and
. . . . . . . . . . . . . . . . . . . . . . . . . . . Variable) (RCA Connectors)
◆ Trilingual On-Screen Menu
◆ Automatic Channel Search
◆ Auto Shut Off
◆ Closed-Captioning/QuikCap
◆ Comb Filter
◆ Velocity Modulator
◆ Digital picture controls
with on-screen display
◆ MTS stereo/dbx ® /SAP
Decoder
◆ Color Enhancer
◆ Auto Flesh Tone
◆ XDS (Extended data service)
station call letters, title of
show, ratings
◆ Factory preset adjustments
for picture/sound
◆ Initial Channel
◆ Bass/ Treble
◆ Front Surround Sound
◆ Audio/ Video Input Jacks
(2 sets-R/L)
◆ S-Video Input Jack (2 sets)
◆ Audio Output Jacks (Fixed
and Variable levels)
◆ V-Guide (Parental Control)
◆ Auto Clock
◆ Sleep Timer (3 hours)
◆ TV Reset
181 Channel Tuning System
VHF Channels 2-13
UHF Channels 14-69
Cable TV (CATV) 1, 14-125
Automatic Fine Tuning
VHF and Cable Channels
Universal/Multimedia
Remote Control
VCR/TV/CABLE/DVD/SAT/AUX
Large Glow-in-the-Dark basic
operating keys
Numbered Channel
Selection
Channel Scanning
Volume
Mute
Power Enter
Recall Display
Sleep Caption
Reset Menu
V-Guide Input
VCR /DVD keys
FEATURES
dbx ® is a registered trademark of
Carillon Electronics Corporation
CAUTION: FCC Regulations state that improper modifications or
unauthorized changes to this unit may void the user’s
authority to operate the unit.
Because it’s products are subject to continuous improvement, Fisher
reserves the right to modify product design and specifications
without notice and without incurring any obligation.
