1-1
1. MOUNTING
1.1 Mounting of Transceiver Unit
General mounting considerations
The transceiver unit can be mounted on the overhead, a bulkhead, on a tabletop, or in a console
(flush mounting).
When selecting a mounting location keep the following points in mind:
• Make sure the location is strong enough to support the unit under the conditions of continued
vibration and shock normally encountered on the boat. Where necessary, reinforce the mount-
ing location by lining block or doubling plate.
• Locate the unit where it is easily accessible and does not interfere with personnel or opera-
tion of other equipment; for example, ship’s wheel.
• Leave enough space around the sides and rear of the unit so a service technician can access
the connectors for maintenance.
• Observe the compass safe distance listed in the Safety Instructions to prevent deviation of a
magnetic compass.
• If the equipment is to be installed without the hanger, leave sufficient space underneath the
the equipment to allow for circulation of cooling air.
Mounting on overhead, bulkhead or tabletop
1. Using the hanger as a template, mark hole locations.
2. Fix the hanger with four sets of self-tapping screws and washers (supplied). (If extra support
is required, drill six pilot holes and use bolts, nuts and flat and slotted washers instead of the
tapping screws.)
3. Screw washers and knobs into the unit. Set the unit to the hanger and tighten the knobs.
112
306
265
115
Tapping
screw
303
126
90
150
190
100 100
For added support,
use nuts, bolts and
washers instead of
tapping screws.
155
150
Washer
Knob
M5 bolt
Slotted washer
Flat washer
Flat washer
M5 nut
Flat
washer

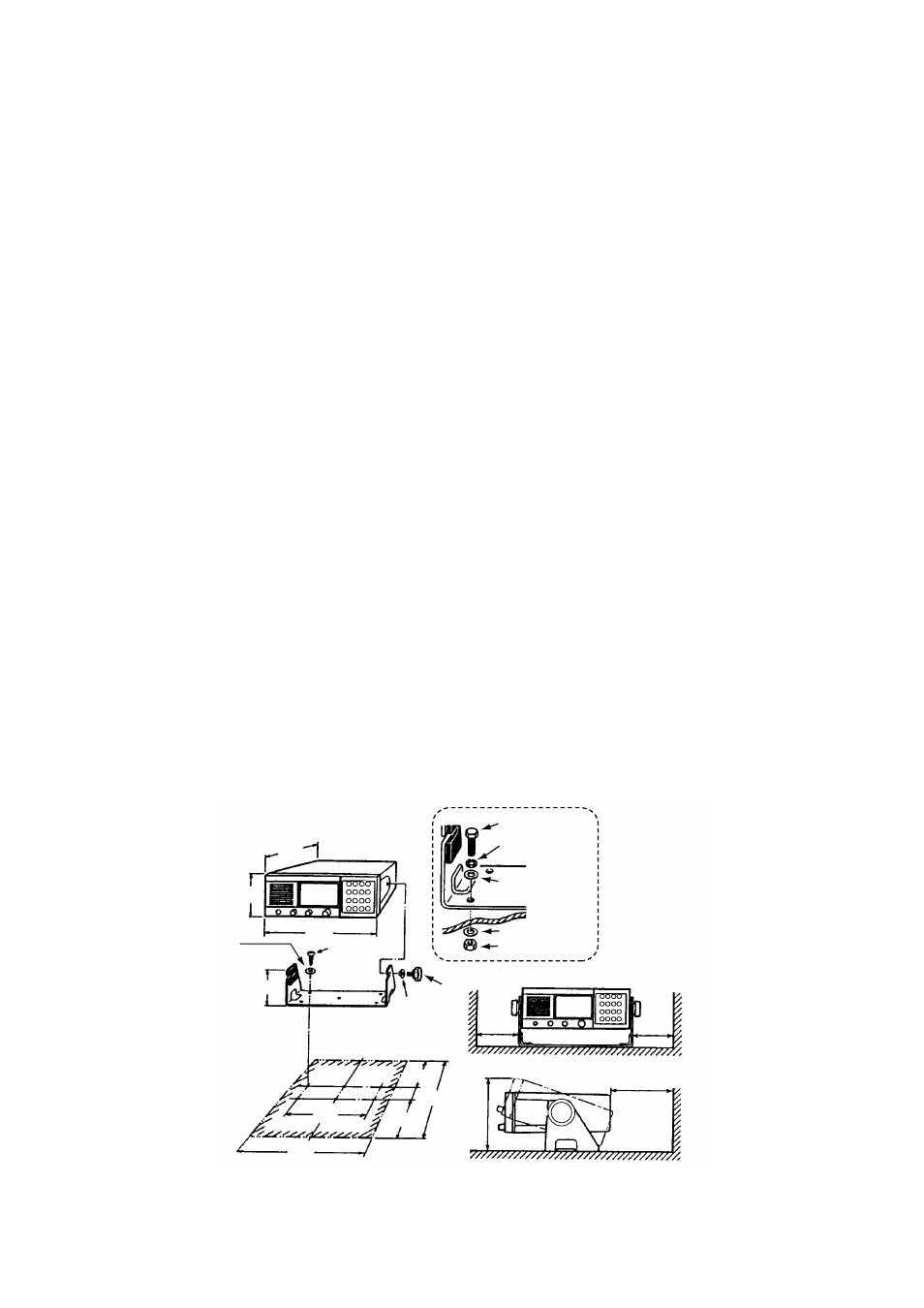

Figure 1-1 How to install the transceiver unit in the hanger
