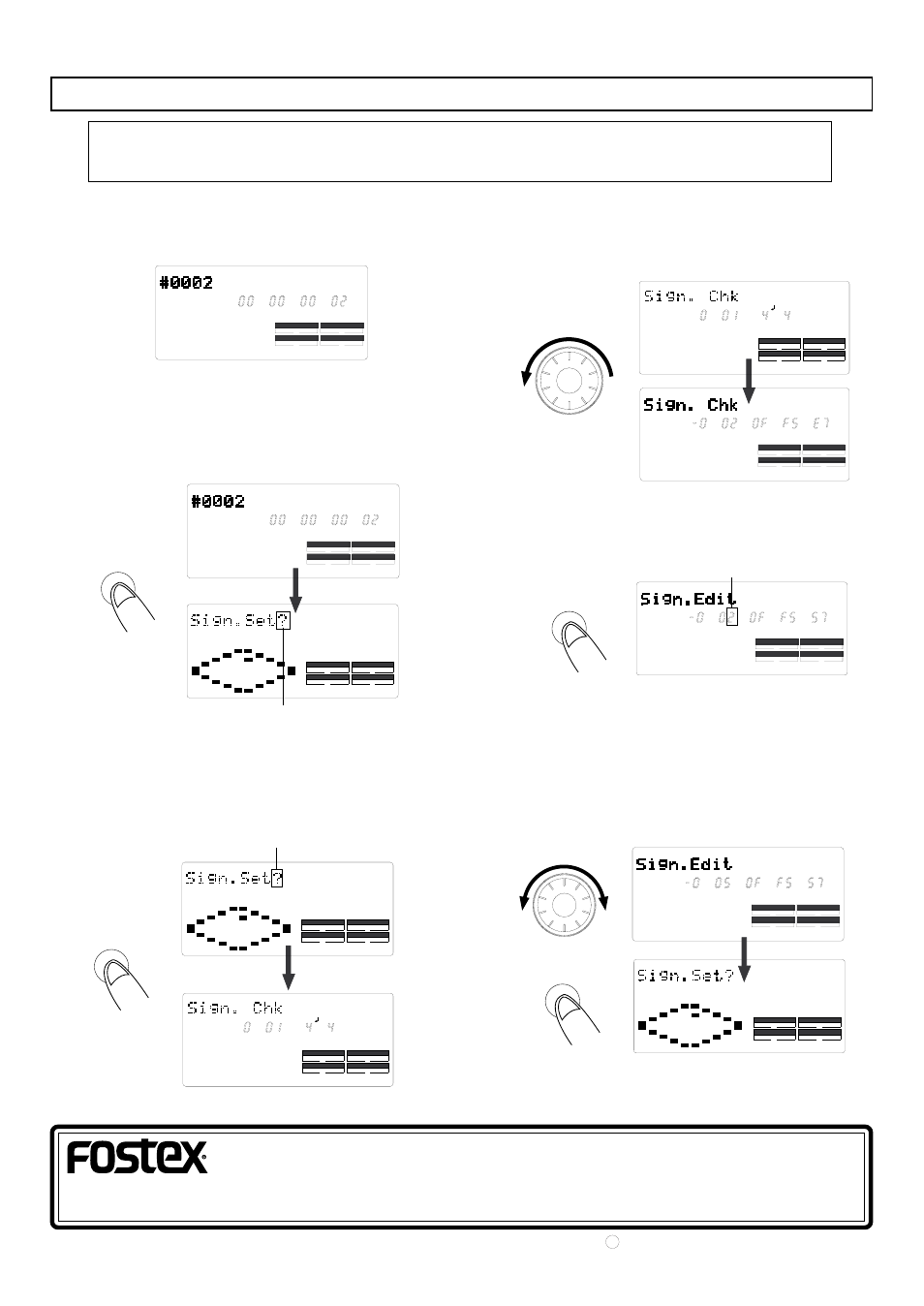

1. Preselect the program to which offset is to be setup.
The following example shows in the display that
program 2 have been selected.
2. Switch to the SETUP mode by pressing the SETUP
key.
In the initial setup, the [Sign. Set?] menu will be
displayed (If a different menu is displayed, rotate
the JOG dial to display the [Sign. Set?] menu.).
3. Then press the EXECUTE/YES key.
The display will change to [Sign. Chk] and the
presently set beat will be shown. In the initial setup,
the display will show that the first bar is set to 4/4
beat.
4. Rotate the JOG dial counter-clockwise.
The offset figure of the presently set bar is displayed
and in the initial setup, [-002BAR OFFSET] will be
displayed as shown below.
5. Press the EXECUTE/YES key.
Simultaneous with entering [Sign. Edit] mode, [2] of
-002BAR will blink and the BAR offset figure can then
be edited.
6. Enter the desired offset figure by rotating the JOG
dial, and then press the EXECUTE/YES key.
Any offset figure in the range of 2~9 can be input
(Example below show that [5] had been entered for
the BAR figure.). When the EXECUTE/YES key is
pressed after input of the above number, the offset
figure thus input will be setup and the display will
change to the [Sign. Set?] menu.
7. Exit from the SETUP mode by pressing the EXIT/NO
key.
Setup procedures for BAR/BEAT/CLK offset
Offset setups can be executed for each program. The setup content will be
maintained even though power is switched off.
