P8990a-0920
10

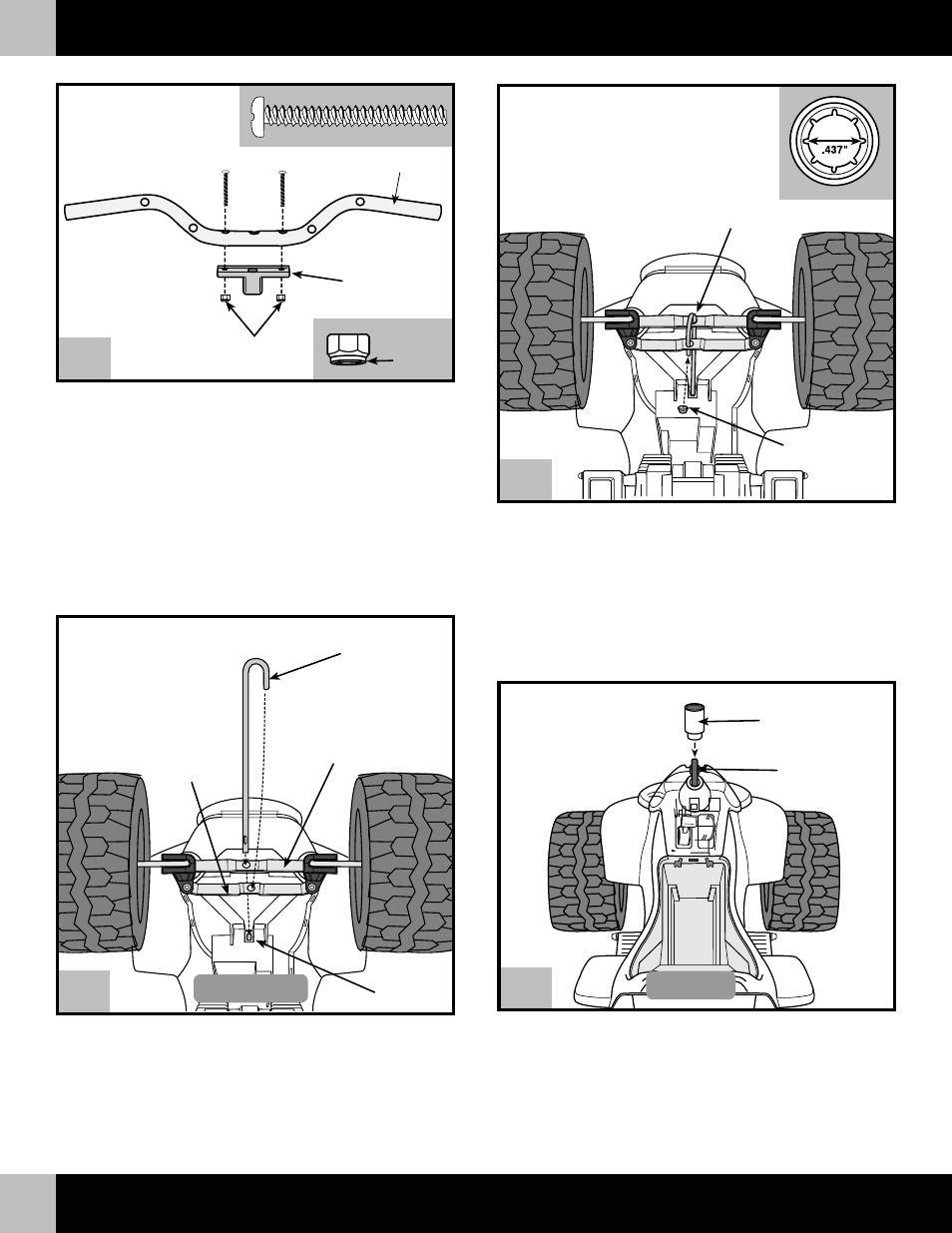

Hint: You may want the help of another adult to support the
steering column near the steering linkage while assembling the
handlebar to the vehicle.
• Slide the steering bushing, narrow side down, onto the
steering column and into the vehicle neck.
• Fit a .437 cap nut on the curved end of the steering column.
• Support the steering column and tap the cap nut with
a hammer to secure it on the end of the steering column.
Hint: You may need the help of another adult to support the
other end of the steering column while you tap the cap nut with
a hammer.
• Lower the front end of the vehicle.
• Position the handlebar upright.
• Fit the handlebar neck to the bottom of the handlebar.
• Insert two #10 x 1
5 /
8
" screws down through the handlebar and
handlebar neck.
• Fit a #10 lock nut onto the ends of both screws. Make sure the
rounded side of the lock nut is down.
• While holding a lock nut steady with an adjustable wrench
(or pliers), tighten the screw. Repeat this procedure to tighten
the other screw.
• Set the handlebar assembly aside for assembly step 14.
12
ASSEMBLY
12
13
P8990a-0920
Rounded
Side
11
• Lift the front end of the vehicle.
• Slide the straight end of the steering column through the
hole in the upper steering linkage and out through the hole
in the vehicle.
• Insert the curved end of the steering column into the hole in
the lower steering linkage.
Steering
Column
Lower Steering
Linkage
Upper Steering
Linkage
Hole
Steering
Column
Cap Nut
Steering
Column
Steering Bushing
Top View
Handlebar
Neck
Handlebar
Bottom View
#10 Lock Nuts
