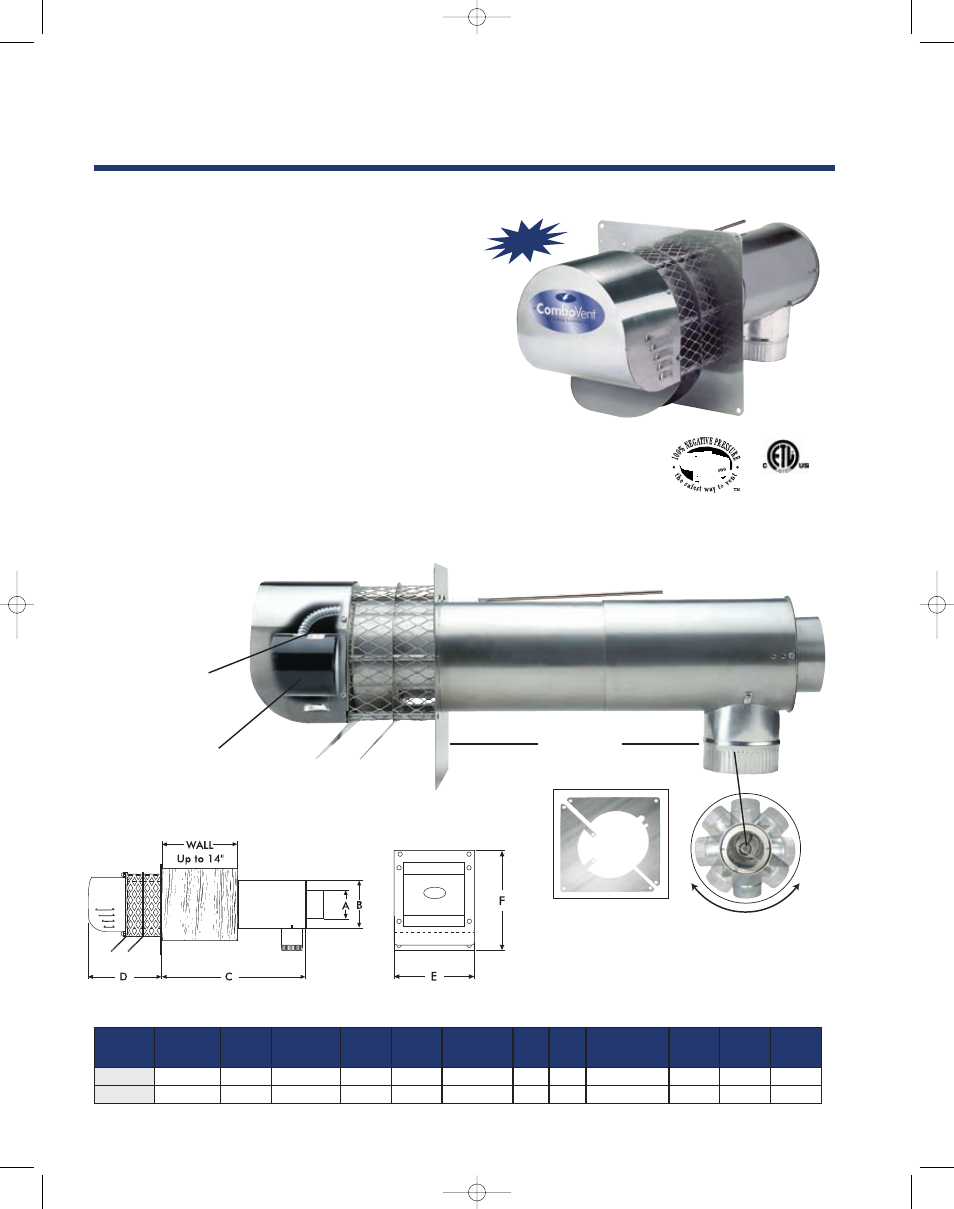

ComboVent
™
Combustion Air. Power Venting. Combined.
Introducing the most versatile, easiest to install,
easiest to service, all inclusive combustion air/vent
system ever made.
Up to14"
S t a i n l e s s S t e e l
A - Telescoping stainless steel body
Accommodates walls up to 14” thick
B - Combustion air connection included
Provides fresh air directly to burner
Coupler rotates 360° for easy installation
C - Two piece backing plate
Can be mounted at any point during installation
Easier to Service
D - Slotted hood with larger screws
Saves time during annual service
E - Quick-connect electrical coupling
Allows for easy motor access
Two piece backing plate
Telescoping stainless steel body
Accommodates walls up to 14" thick
Quick-connect
electrical coupling
Slotted hood with
larger screws
D
E
C
B
A
NEW
Model
Volts
Hz
Amps
Watts
RPM
Thermal
Protection
A
B
C
D
E
F
CV-4
115
60
1.7
138
3000
YES
4"
6"
11
3
⁄
4
"-17
3
⁄
4
"
9
1
⁄
2
"
9"
9"
CV-5
115
60
1.3
144
3100
YES
5"
7"
11
3
⁄
4
"-17
3
⁄
4
"
10
3
⁄
4
"
12"
12
1
⁄
4
"
Specifications and Dimensions
•Combustion air
connection included
•Coupler rotates 360° for
easy installation
A total system for combustion air
and venting.
