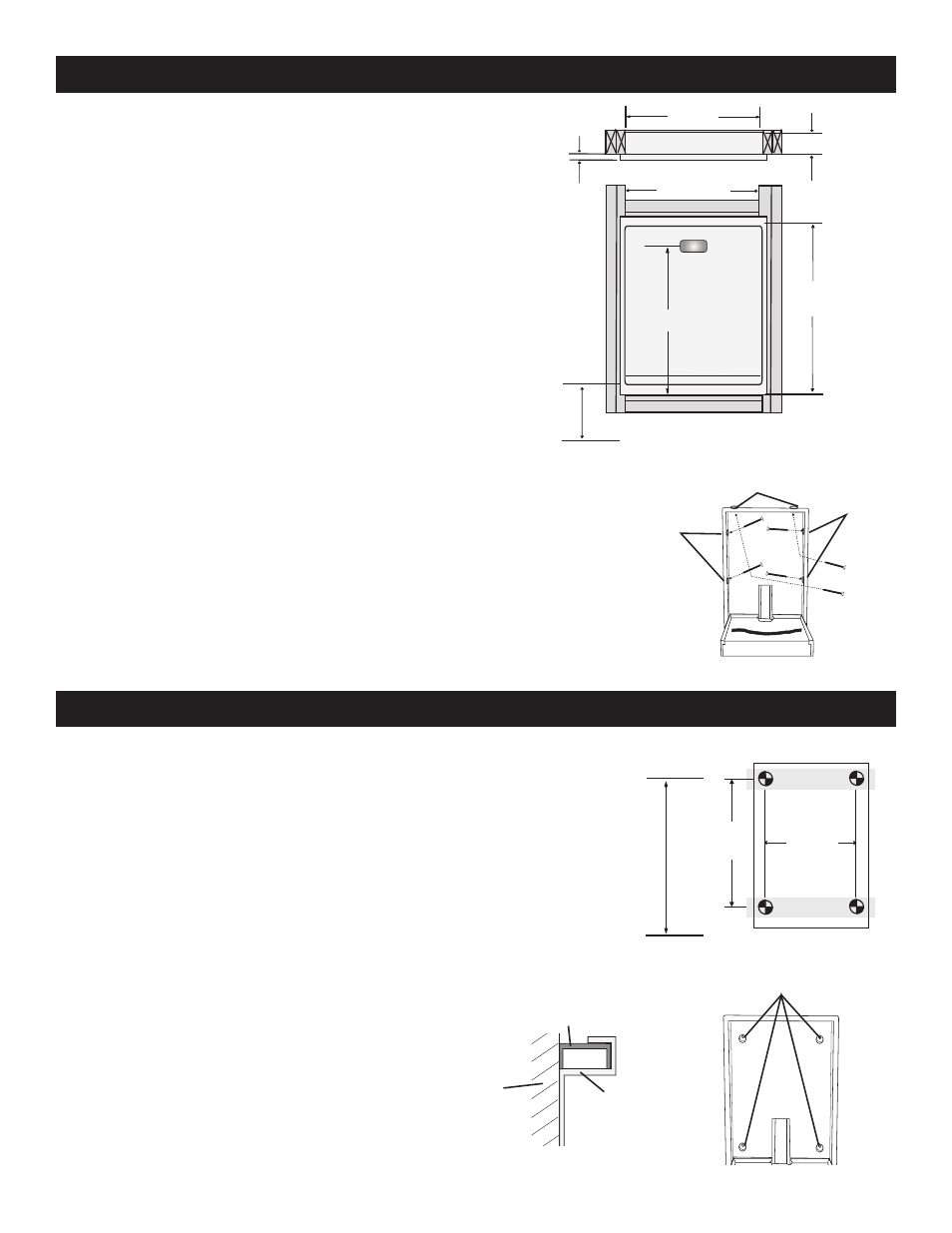

Foundations 100-SSV User Manual
Page 3
2
For A. D. A. compliance, top of lower double stud should be
30.5“ (78 cm) from the floor.
Recommended Blocking:
Wood double stud blocking is necessary. Contact an architect and
building official to make sure the blocking is adequate and complies
with building codes (Fig. b).
1. Slide changer into blocking area and mark mounting hole location
on blocking studs.
HINT: This may require 2 additional people to help hold changer
in position while you are marking the locations.
2. Shim changer for a snug fit.
3. Align holes in changer with marked holes and secure using the
appropriate fasteners (Fig. c).
NOTE: It is installers responsibility to provide correct fastereners
for other substrates.
4. Ensure all six (6) fasteners are tight.
INSTALLATION - RECESSED
INSTALLATION - SURFACE-MOUNT
Recommended Blocking:
If the walls do not have studs on center, then additional blocking is necessary
(Fig. d).
Contact an architect or building contractor to make sure the blocking is adequate
and complies with building codes.
For A. D. A. compliance, measure up 62 3/4” (159 cm) from the floor and mark the
wall. This locates the position for the top left attachment hole.
NOTE:
- Changer MUST be mounted to studs (Fig. e).
- This unit incorporates a finishing collar that seats behind the changer’s
outside flange. Center the collar as the unit is being tightened against
the wall (Fig. f).
Fig. c
Recess
Mounting
Holes
Recess
Mounting
Holes
Recess
Mounting
Holes
22-1/2" (571 mm)
Rough-in
Double Stud
Double Stud
D
ou
bl
e
S
tu
d
D
ou
bl
e
S
tu
d
34-1/8"
(867 mm)
Rough-in
3-7/8"
(98.6 mm)
1"
(25.4 mm)
22-1/2"
(571 mm)
For A. D. A.
Compliance
30.5”
(78 cm)
TOP
VIEW
FRONT
VIEW
A. F. F
30-1/2”
(775 mm)
Fig. b
Fig. e
Surface-Mount
Holes
26"
(660 mm)
on center
16"
(406 mm)
on center
Top
For A. D. A.
Compliance
62 3/4”
(159 cm)
A. F. F
Fig. d
Fig. f
Collar
Unit
Wall
