APPENDIX
AP-20

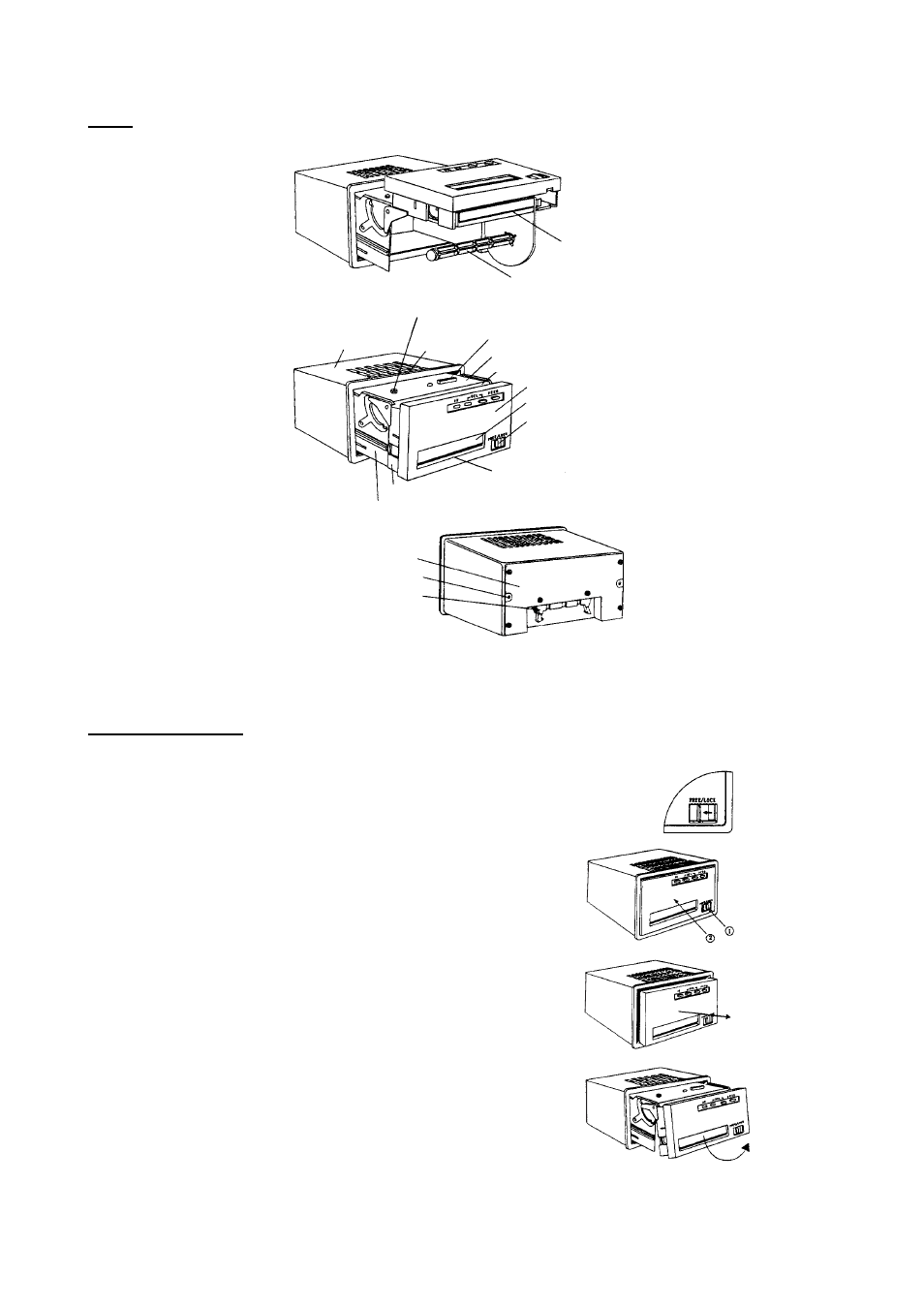

Parts
Paper feed slot
Shaft
DIP switch
Guard plate A
Guard plate B
Front panel
Cutter
Lock lever
VR for adjusting printing density
Vent Case
Feeder
Frame of printer
Frame of case
Rear panel
Screw hole for fixing case
I/O connector
4. Operation
Loading roll paper
1) Unlocking the Slide lock
Slide the Lock lever at the right bottom of the panel
to the FREE position to unlock the front panel1.
2) Pushing the panel
Push the center of the front panel about 2 mm
inward. Release, and panel pops out by about
10mm 2.
3) Pulling out the panel
Place thumb and index finger at top and bottom of
panel and pull the panel forward until you feel
some resistance.
4) Pulling the panel upward
Pull the panel upward. When you hear a click,
continue pulling the panel upward to 90° until you
hear a click again.
