Parts diagram – Fisher-Price BARBIE SPORT MOBILE 74557 User Manual
Page 7

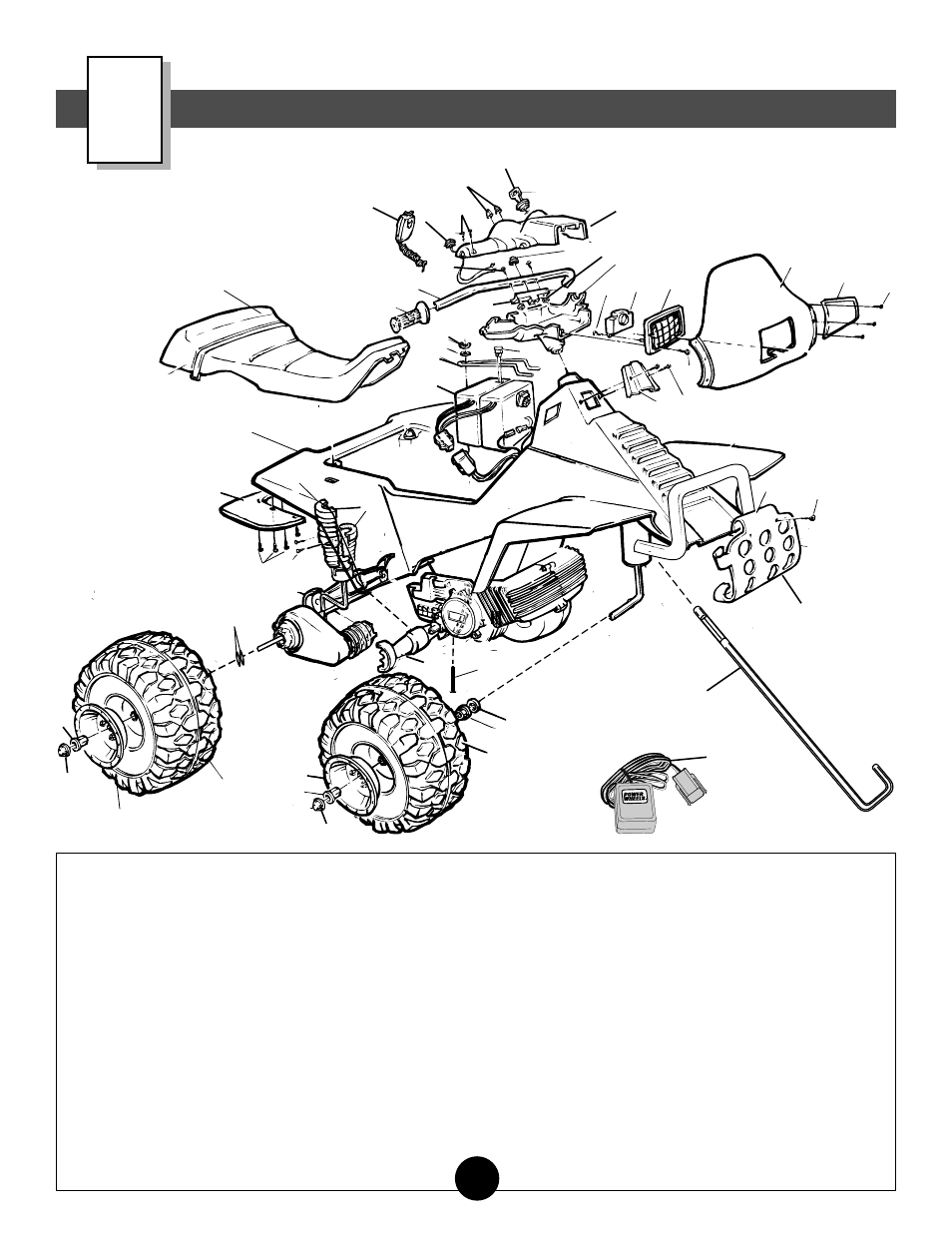

Parts Diagram
7
1.
Vehicle Body
2.
Steering Column
3.
Front Wheel - 2
4.
Rear Wheel - 2
5.
Hubcap - 4
6.
Right Mudflap
7.
Small Shock Half - 2
8.
Large Shock Half - 2
9.
Seat
10.
6 Volt Battery - 2
11.
Battery Retainer
12.
12 Volt Charger
13.
Brushguard
14.
Rear Axle Cover - Short Half
15.
Rear Axle Cover - Long Half
16.
Key Assembly
17.
Microphone
18.
Windshield
19.
Hand Grip - 2
20.
Left Hand Guard - 2
21.
Cover Plate
22.
Handlebar Housing - Top Half
23.
Handlebar Housing - Bottom Half
24.
Handlebar
25.
Sound Box with Wiring Harness
26.
Handlebar Neck
27.
Headlight Guard and Rim
28.
Hex Bushing - 4
29.
Round Bushing - 2
30.
Lock Nut - 2
12
13
14
38
15
41
16
22
17
18
19
20
21
1
2
3
4
5
5
6
7
8
9
10
11
23
24
25 27
29
31
37
32
33
34
34
35
35
34
25
34
36
36
39
40
40
D
31.
Wing Nut
32.
30 Amp Fuse - 2
33.
3
/
4
" Screw - 6
34.
1
/
2
" Screw (black) - 22
35.
1
/
2
" Screw (silver) - 10
36.
Large Washer - 6
37.
Small Washer
38.
Carriage Bolt
39.
1
1
/
2
" Screw - 2
40.
Cap Nut - 5
41.
Radio Knob - 2
Not Shown
Label Sheet
Left Mudflap
Right Hand Guard
28
28
40
12-VOLT
CHARGER
30
26
