1. Vehicle Body
2. Front Axle
3. Seat
4. Motor Assembly
5. Handlebar
6. Sport Bar
7. Foot Peg Assembly
8. Rear Axle Support
9. Washer Plate - 2 10. Steering Linkage
11. Wheel - 4
12. Rear Axle
13. Round Washer - 2
14. Key Assembly
15. Microphone
16. Rectangular Bushing
with Extension - 4
17. Round Bushing - 4
18. Rectangular Bushing - 4
19. #8 x
7 /
8
" Trusshead Screw - 2
20. #8 x 5 /
8
" Trusshead Shoulder Screw - 2
21. #8 x 1 1 /
4
" Screw
22. #8 x 3 /
4
" Screw - 4
23. .354 Cap Nut - 4
Not Shown
Label Sheet

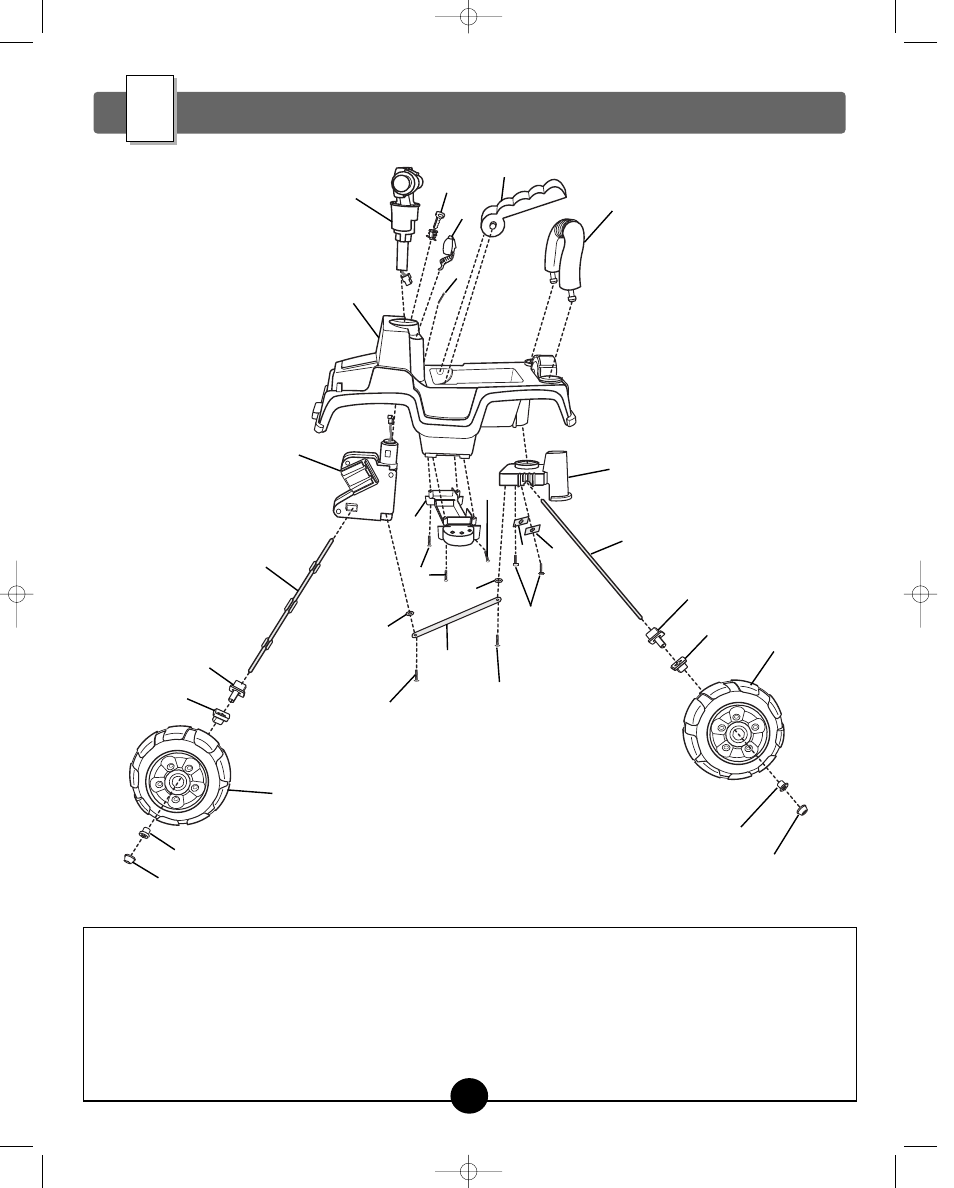

Parts Diagram
D
10
22
2
18
13
23
17
18
17
19
4
16
8
9 9
23
20
5
3
6
21
14
15
16
11
22
1
12
11
13
7
20
5
Note: Some parts shown are assembled to both sides of the vehicle.
