Page 4
2.
Display Unit
10.4" TFT color LCD (VGA: 640 x 480 pixels)
3.
Color
8 or 16 colors
4.
Display Mode
(1) Full Circle scan (2) Zoom (x 1.5) (3) Vertical scan
(4) Vertical Sounder (5) Full/Half Circle and Vertical scan
(6) Full Circle and History (7) Full Circle and Strata
(8) Full Circle and VideoPlotter
5.
Audio monitor
1000 Hz
6.
TX Output Power
0.8-1.2 kW
7.
Beamwidth (at -3 dB)
60 kHz:
15° (H) x 12° (V) 88 kHz:
11.5° (H) x 9.5° (V)
150 kHz:
6.5° (H) x 6.5° (V)
8.
Transducer Control
Tilt
0° to -180° at 3° or 6° steps (in vertical scan)
+5° to -90° at 1° steps (in full circle scan)
Training sector
Manual or automatic training at 6° or 12° steps in search sector 6°-
360°
Target Lock
By L/L or Echo position
9.
Interface
NMEA 0183 Ver 1.5, 2.0 (IEC 61162-1)
Input:
DBS, DBT, DPT, GGA, GLL, HDG, HDM, MDA,
MTW, RMA, RMC, VDR, VHW, VTG
Output:
SSTLL
10. Language
English, Spanish, Danish, Portuguese,
French, Norwegian, Italian, Swedish, Thai
Power Supply
Transceiver unit
12-24/32 VDC, 55 W
Hull unit
12/24-32 VDC, 55 W
(200 W while raising/lowering transducer)
EMC AND ENVIRONMENT
(Complies with IEC 60945)
Display unit:
-15°C to +55°C
Water resistance
IEC IPX5, USCG CFR 46 (Display unit)
EQUIPMENT LIST
Standard
1.
Display Unit MU-100C
1 unit
2.
Control Unit CH-252
1 unit
3.
Hull Unit CH-254 (travel 400 mm) or CH-255 (travel 250 mm)
1 unit
4.
Transceiver unit CH-253
5.
Installation materials and spare parts
1 set
6.
Interface unit IF-8000 (Blackbox type only)
1 unit
Option
1.
Remote controller CH-256
2.
Rectifier RU-1746B-2
3.
External speaker SC-05WR
4.
1 m tall steel tank (06-007-1570), 1.8 m tall steel tank (SHJ-0001),
3.5 m tall steel tank (06-007-1571), 1 m tall FRP tank (SHJ-0022),
1.8 m tall FRP tank (06-007-1573), 1 m tall aluminum tank (OP10-5),
5.
NMEA cable
MJ-A6SPF0012-050 (5 m), MJ-A6SPF0011-050 (5 m),
MJ-A6SPF0012-100 (10 m), MJ-A6SPF0011-100 (10 m),
6.
Motion sensor MS-100 or Clinometer BS-704
7.
Interface unit IF-8000
475 18.7"
431 17"
4- 6
250 9.8"
294 11.6"
16.5
0.7"
455 17.9"
76 3"
9
300 11.8"
206 8.1"
169 6.7"
290 11.4"
327 12.9"
357 14.1"
86 3.4"
90 3.5"
210 8.3"
11
160 6.3"

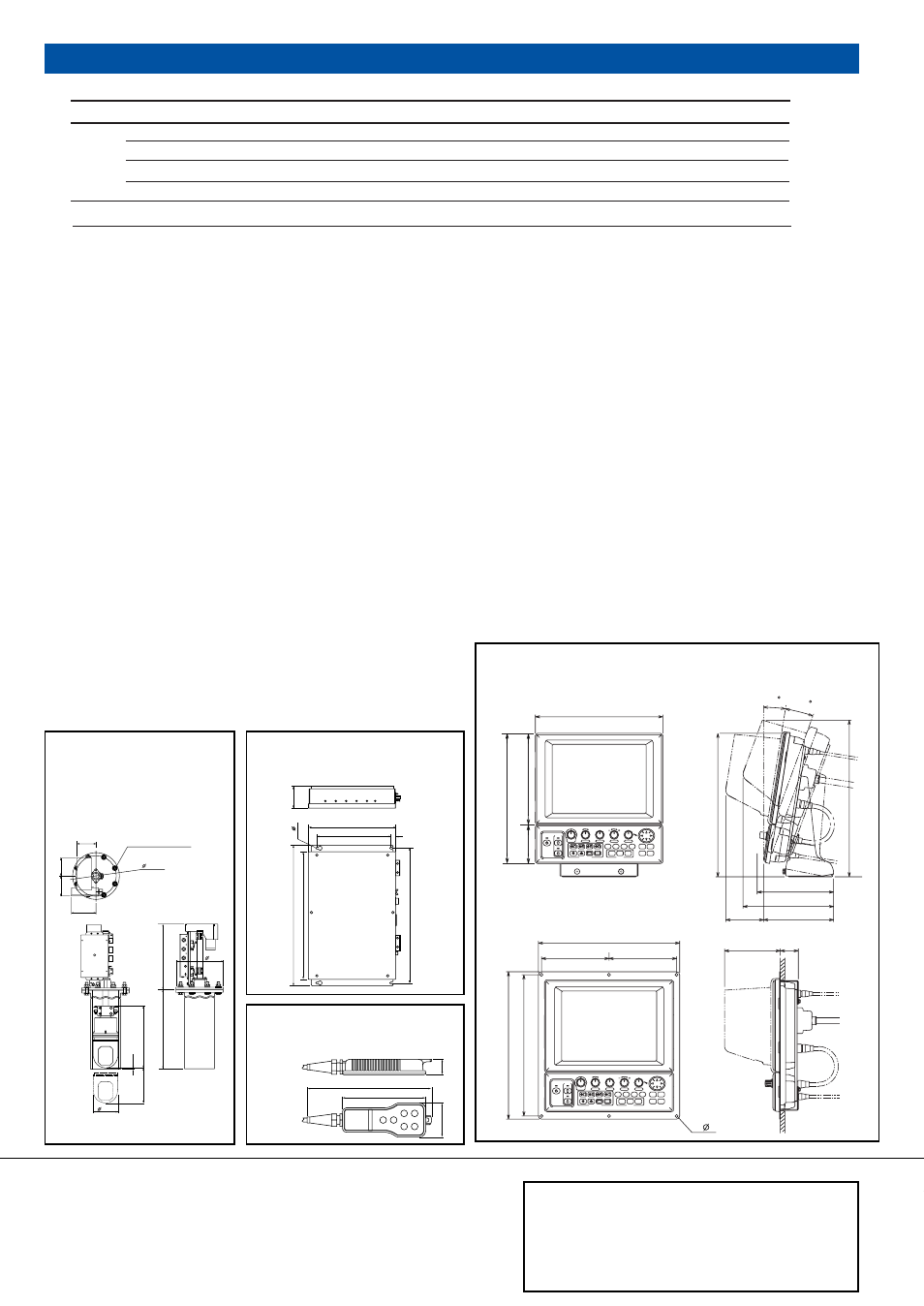

DISPLAY UNIT and CONTROL Unit
MU-100C and CH-252
5.7 kg, 12.6 lb
TRANSCEIVER UNIT
CH-253
3.2 kg, 7.1 lb
138
5.4"
8-M20 HEX BOLT
297
11.7"
131
150
5.2"
5.9"
180
7.1"
343
13.5"
475/625 18.7/24.6"
450 17.7"
10
0.4"
185
7.3"
1.0/1.8/3.5 m 39/70/137"
T
ravel
HULL UNIT
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
SPECIFICATIONS OF CH-250
0406XN Printed in Japan
FURUNO U.S.A., INC.
Camas, Washington, U.S.A.
Phone: +1 360-834-9300 Telefax: +1 360-834-9400
FURUNO (UK) LIMITED
Denmead, Hampshire, U.K.
Phone: +44 2392-230303 Telefax: +44 2392-230101
FURUNO FRANCE S.A.
Bordeaux-Mérignac, France
Phone: +33 5 56 13 48 00 Telefax: +33 5 56 13 48 01
FURUNO ESPANA S.A.
Madrid, Spain
Phone: +34 91-725-90-88 Telefax: +34 91-725-98-97
FURUNO DANMARK AS
Hvidovre, Denmark
Phone: +45 36 77 45 00 Telefax: +45 36 77 45 01
FURUNO NORGE A/S
Ålesund, Norway
Phone: +47 70 102950 Telefax: +47 70 127021
FURUNO SVERIGE AB
Västra Frölunda, Sweden
Phone: +46 31-7098940 Telefax: +46 31-497093
FURUNO SUOMI OY
Helsinki, Finland
Phone: +358 9 341 7570 Telefax: +358 9 3417 5716
Range
Unit
1
6
12
4
5
9
3
11
8
7
10
10
2
80
10
40
600
500
300
250
200
160
120
80
40
20
120
200 300
2000
1500
1000
800
600
500
400
Meters
Feet
Fathoms
P/B
20
40
60
80
120
160
200
250
300
400
2500
10
20
40
60
80
120
160
200
400
250
300
400
500
14
13
1000
3500
500
800
700
Time to train full circle (s)
60
7
7
7
7
7
10
12/13
14/16
16/20
18/24
22/32
26/40
30/48
38/64 46/81
15
100
100
700
140
140
600
1. Range scales and Pulselength
Max scale depends on the system frequency. 1600 m (60 kHz), 1200 m (88 kHz), 1000 m (150 kHz).
Training speed is subject to the system frequency and range scales. Two speeds on long range scales.
CSH-254 (Travel 400 mm)
43 kg, 94.8 lb
CSH-255 (Travel 250 mm)
42 kg, 92.6 lb
127 5.0"
180 7.1"
52 2.1"
24
0.9"
REMOTE CONTROLLER
(OPTION)
CH-256
0.3 kg
0.7 lb
150 kHz
320 12.6"
320 12.6"
334 13.2"
153 6.0"
153 6.0"
6- 7
127 5.0"
41
1.6"
4.2 kg, 9.3 lb
Flush mount
