3.4 BC-6158
3-12

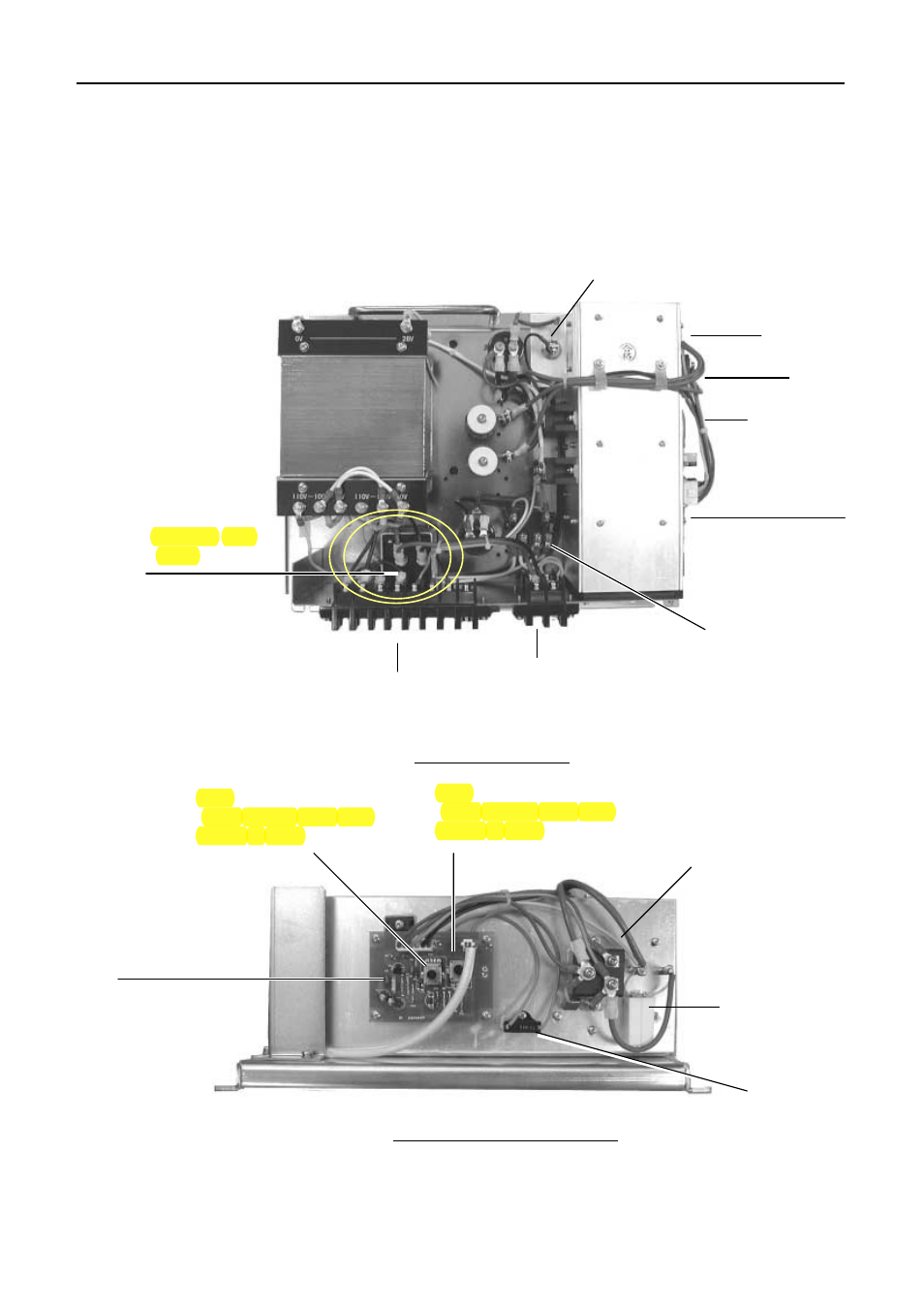

3.4 BC-6158: Battery charger unit
T1
TB3
Upper terminal:TB2
Lower terminal:TB1
Breaker: :30A
(CP1)
K1
(Input rlay)
Rectifier
(U1)
Rectifier
(U2)
05P0659 board
R3/4
(0.01ohms)
Q1
S1: 60 degrees
thermal sensor R1/2
(0.5
Ω /50W)
CR2
C3
C1
Fig. 3.4.1 BC-6158
05P0659
Q1
R3/4
(0.01ohms)
S1: 60 degrees
thermal sensor
VR2
(Over current ADJ. VR.:
Adjust to 20A)
VR1
(Over voltage ADJ. VR.:
Adjust to 28V)
Fig. 3.4.2 BC-6158 left side
