INSTALLATION
Continued

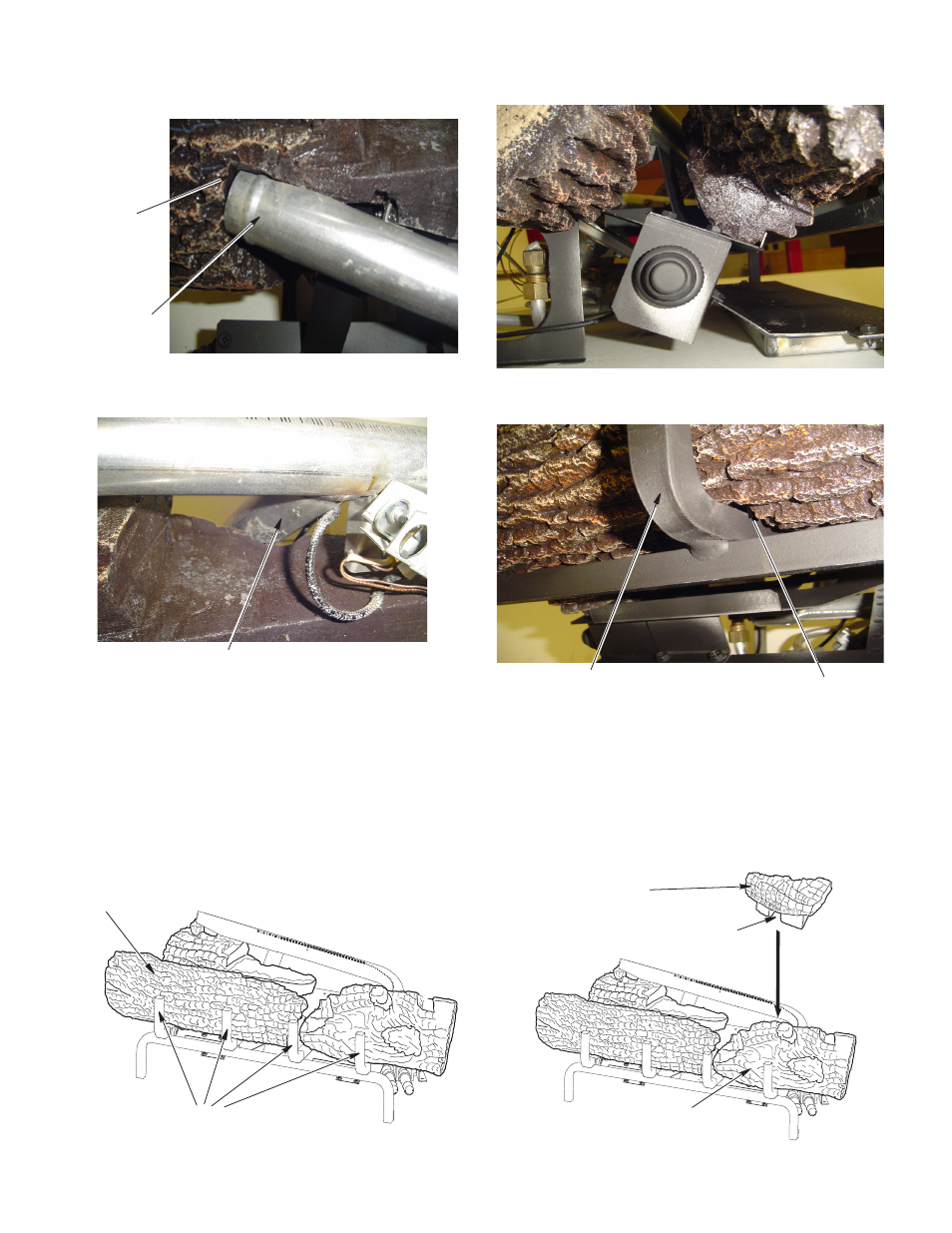

Figure 18A - Installing Back Left Log
Figure 18B - Installing Back Left Log (D-018) Rear View
Figure 19 - Installing Front Left Log
Grate Fingers
Front Left Log
(D-017 or D025)
Burner Tube
Log Notch
Find the charred log (D-020). See Figures 20, 20A, and 4.
20B. The log has a slot in the bottom that fits over the
square grate and rests against the burner tube as shown
in Figure 20. Place this log on the base as shown in fig-
ures.
Vertical Portion of Burner Tube
Find the front left log (LMF42-SC: D017 or LMF48-SC: 3.
D025). See Figures 19, 19A, and 19B. The log has a rect-
angular stand off on the bottom that fits against the lip on
the black metal base as shown in figure 19A. The bottom
of this log has a slot that fits over the second bar on the
grate as shown in Figure 19B. Place the log on the base
assembly as shown in figures.
Figure 19A - Installing Front Left Log Side View
Figure 19B - Installing Front Left Log
Charred Log
Log Notch
Right Front Log
Figure 20 - Installing Charred Log
Grate Finger
Log Slot
