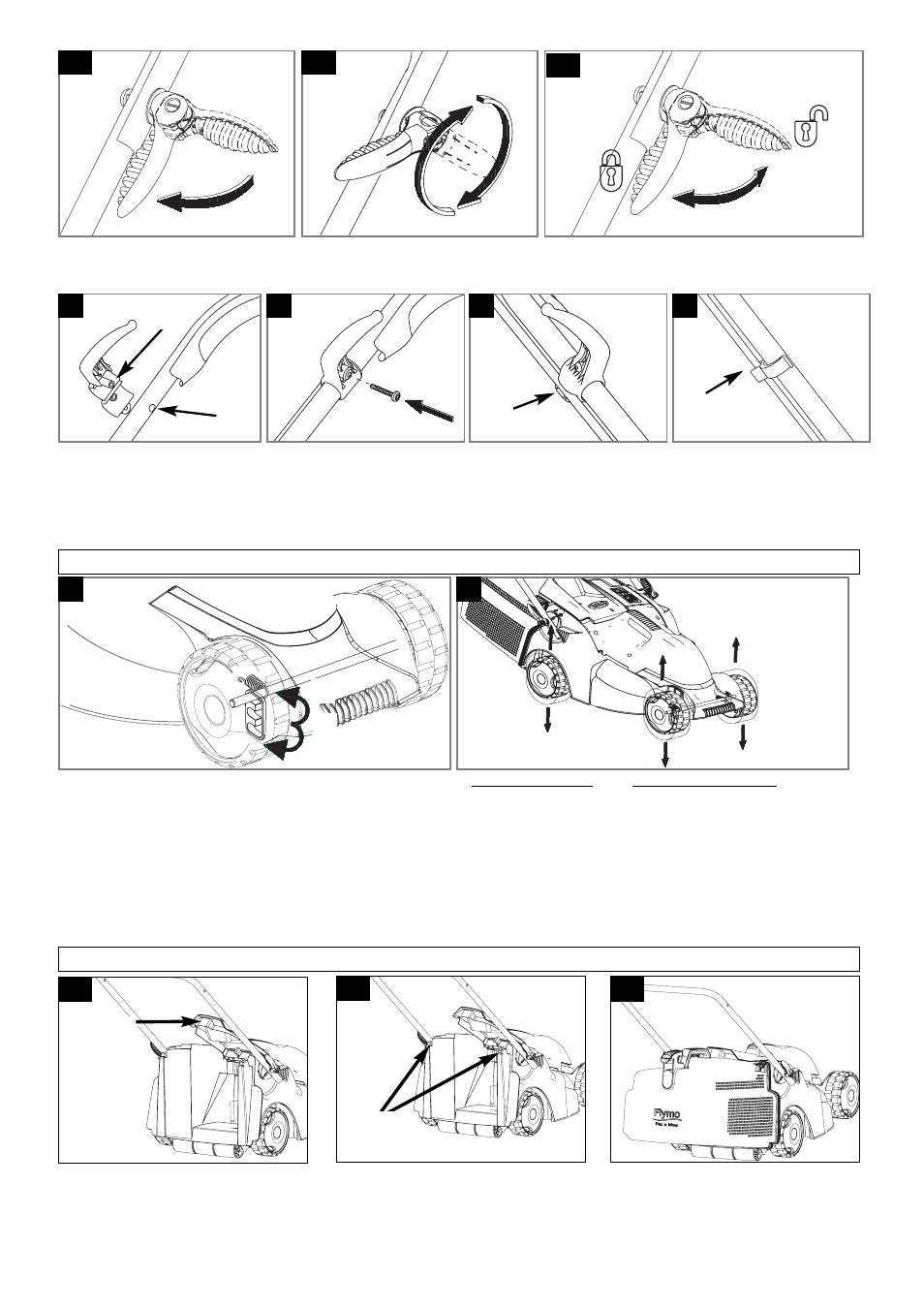

4. Fold down the Cam Lock towards the Handle as
illustrated in fig D4, and continue to turn clockwise
(D5) until tightened.
5. The Cam Lock can be unlocked and locked as illus-
trated in fig D6.
Repeat for the other side.
1
2
Grassbox
Fitting Grassbox to Lawnmower.
1. Lift Safety Flap.(L1)
2. Make sure the discharge chute is clean and free
from debris.
3. Locate Grassbox onto the location points at the rear
of the lawnmower (L2)
4. Locate Safety Flap onto the top of the Grassbox. (L3)
Ensure the Grassbox is securely located.
• IMPORTANT ! AFTER FITTING ENSURE NO GAP
REMAINS BETWEEN THE SAFETY FLAP AND
THE GRASSBOX.
• Removal is the reverse procedure.
L2
E F
L3
Cutting Height Adjustment
Cutting Height Adjustment (J) & (K)
•
Height of cut is adjusted by raising or lowering the
Front and Rear Wheels.
• There are five heights of cut on this product.
• NOTE
A medium height of cut is recommended for most
lawns.
The quality of your lawn will suffer and collection will
be poor if you cut too low.
HEIGHT OF CUT WHEELS POSITION
Low Front position 1 Also for storage
Back position 1
Low to Medium Front position 1
Back position 2
Medium Front position 2
Back position 2
Medium to High Front position 2
Back position 3
High Front position 3
Back position 3
K J
1
2
3
Attaching the Cable Hooks (for storage of the mains cable)
1. Insert the post on the Cable Hook (E1) through the hole
in the Upper Handle (E2).
2. Insert the Screw and tighten to secure (F)
Repeat for the other side.
The fixed cable from the switchbox to the motor can
be attached to the handles using the clip on the
Cable Hook (G) and with the Cable Clip provided on
to the Lower Handle (H). Make sure the cable is
not trapped between the Upper and Lower Handles.
G H
