13

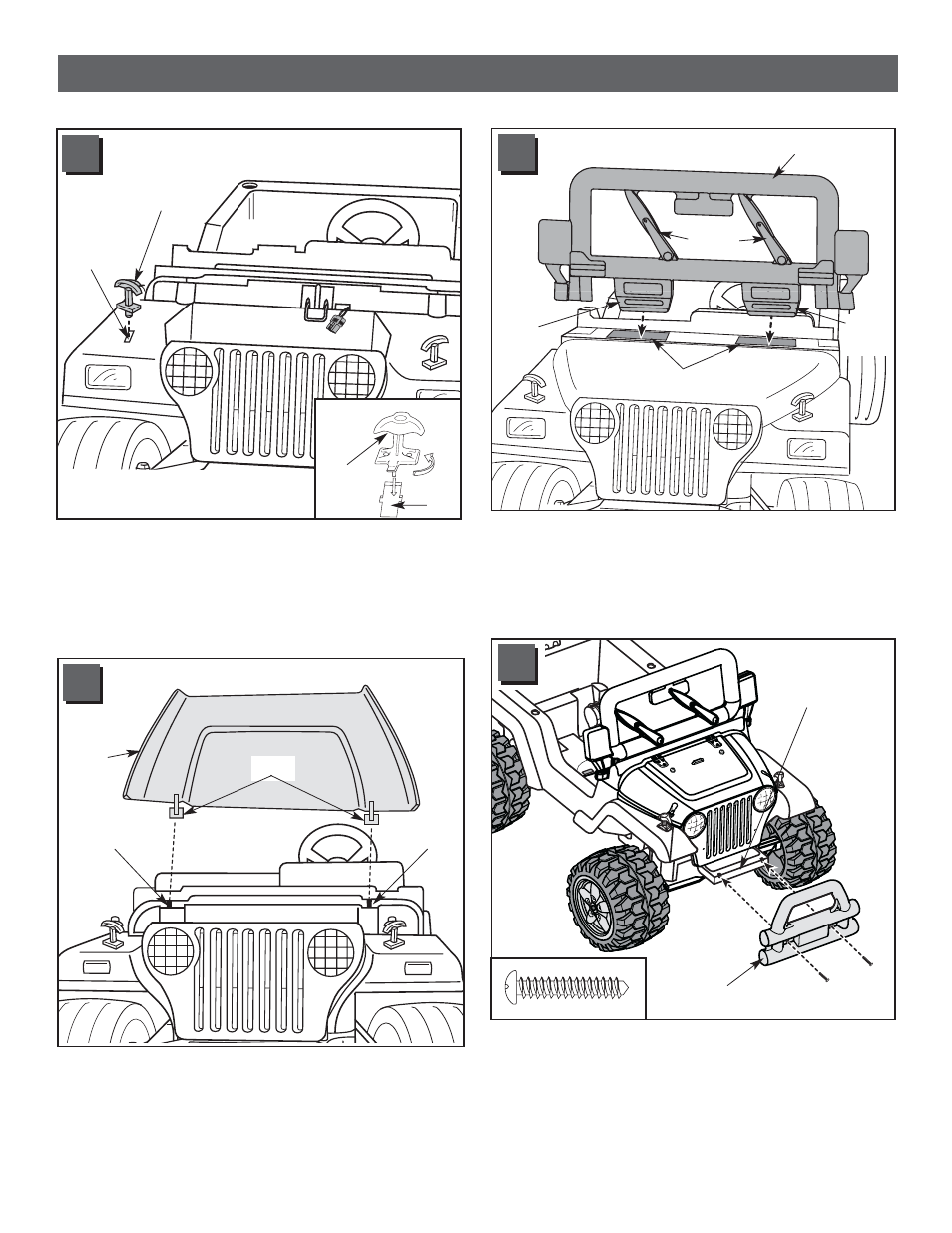

Assembly

• Position the windshield so that the wipers face the front

end of the vehicle.

• Insert and “snap” the two large tabs on the windshield

into the large slots in the dash.

• Pull up on the windshield to be sure it is secure.

Windshield

Wipers

Large

Tab

Large

Tab

Large Slots

Hood

Tabs

• Position the hood over the front of the vehicle body

as shown.

• Insert the tabs on the hood into the slots in the

vehicle body.

• Close the hood.

Slot

Slot

• Insert a hood latch into one of the holes in the vehicle

body, near the hood area.

• Twist the base of the hood latch

1

/

4

turn to secure it in

the vehicle body.

• Repeat this procedure on the other side of the hood

area to attach the other hood latch to the vehicle body.

Hood
Latch

Hole

Hood
Latch

Hole

16

17

18

Brush Guard

Front Bumper

19

• Fit and hold the brush guard against the front bumper.

• Insert two #10 x 1" screws through the front of the brush

guard and into the front bumper.

•Tighten the screws with a Phillips screwdriver. Do not

over-tighten.
