8

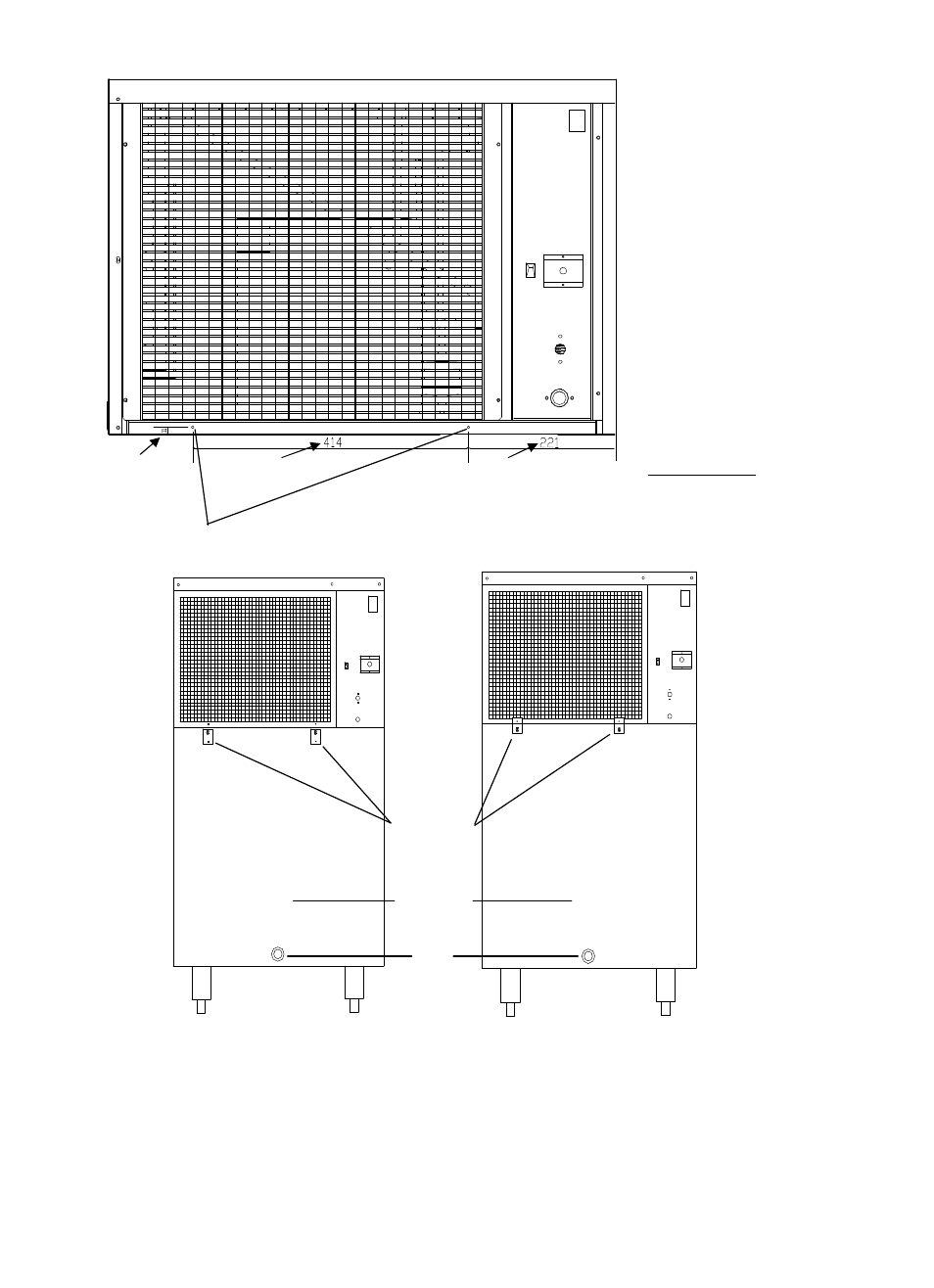

REAR VIEW



The two holes are for attachment to the ice storage bin. See drawings below.

Typical installation of ice storage bin

Two connecting brackets are attached to the upper rear edge of the ice storage bin. Turn
the brackets up (180

?

) and use two screws to connect the main machine and ice storage

bin.

?

To ensure proper ventilation for your ice maker, you need keep the front of the unit
completely unobstructed.

?

Choose a well-ventilated area with temperatures above 50ºF (10ºC) and below 100ºF

Connecting

brackets


Rear of ice

storage bin

Drain

7/16” 16.3” 8.7”
