Dwp 50 wss – Finisar DWP 50 User Manual
Page 2
Parameter
Specification
Unit
Number of Ports
5-10
Frequency Range: C Band
191.40 - 196.30
THz
Channel Spacing
50
100
Unit
Channel Count
80
40
Clear Passband
+ 10
+ 30
GHz
Bandwidth: -0.5dB
+ 14
+ 35
GHz
Bandwidth: -3.0dB
+ 20
+ 40
GHz
Optical Specifications
Typical
Maximum
Unit
Insertion Loss
6.5
dB
Insertion Loss Uniformity
1.0
dB
PDL
0.25
0.7
dB
Port Isolation (Crosstalk)
< -40
< -35
dB
Block Extinction
< -40
< -35
dB
Attenuation Range
15
dB
Attenuation Resolution
0.1
dB
Attenuation Setting Accuracy: 0-10dB
1.0
dB
Attenuation Setting Accuracy: 10-15dB
1.2
dB
Module Specifications
Module Dimensions
220 x 140 x 40
mm
Power Consumptions (typical)
20
W
Communications Interface
DPRAM, RS-232
Electrical Interface
FTSH-140-03-L-DV-EP-A
1389 Moffett Park Drive
Sunnyvale, CA 94089
Phone (US Toll Free): 888.746.6484
Phone Intl: 408.400.1000
Email: [email protected]
www.finisar.com
©2008 Finisar Corporation. All rights reserved. Finisar is a registered trademark of Finisar Corporation. Features and specifications are subject to change without notice. 08/08
X0WSAAY0N0MZZC RevB
DWP 50 WSS
OPTICAL PERFORMANCE SPECIFICATIONS

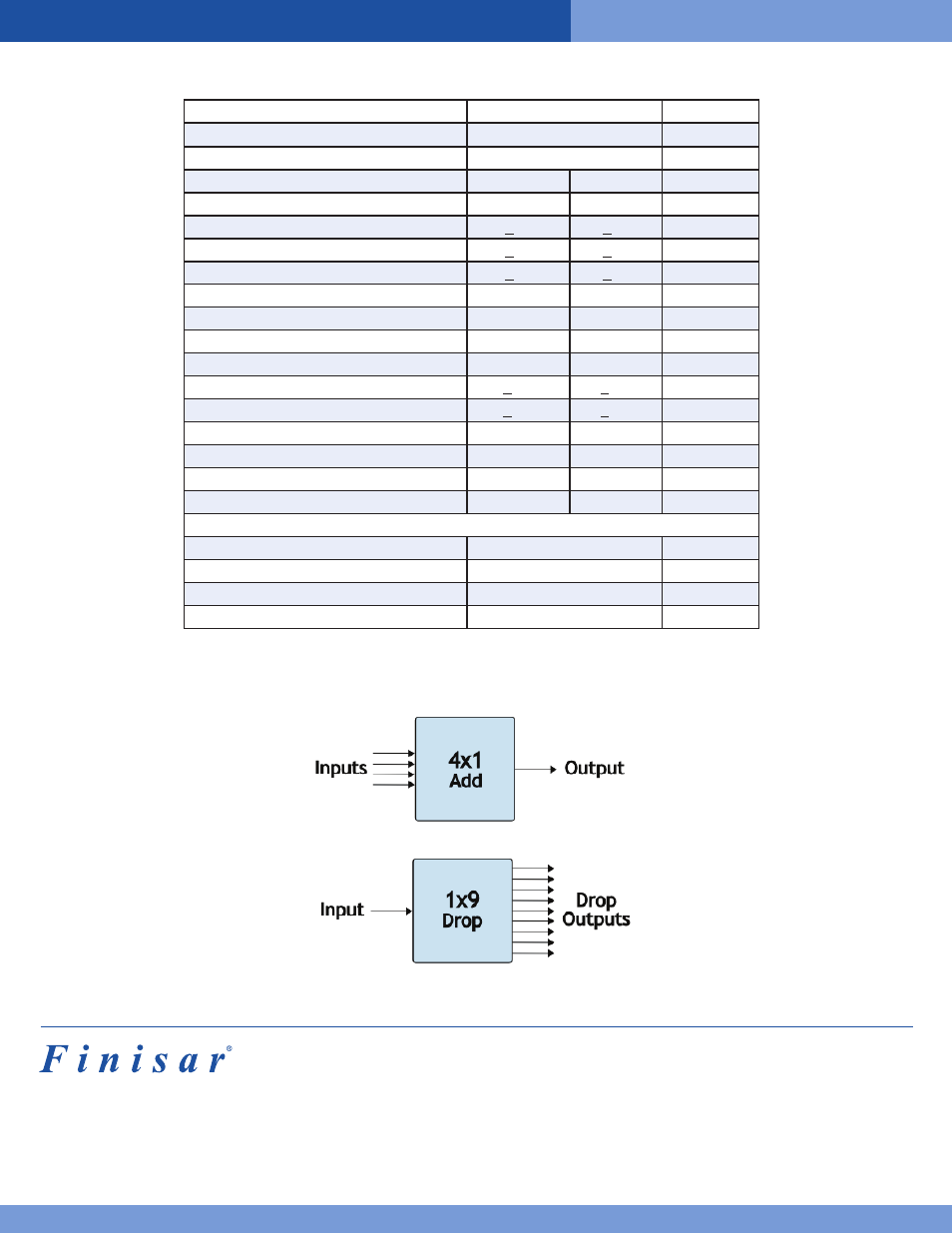

SAMPLE CONFIGURATIONS
