FSA3357
AC Loading and Waveforms
Note: Input driven by 50
:
source terminated in 50
:
Note: C
L
includes load and stray capacitance
Note: Input PRR = 1.0 MHz; t
W
= 500 ns

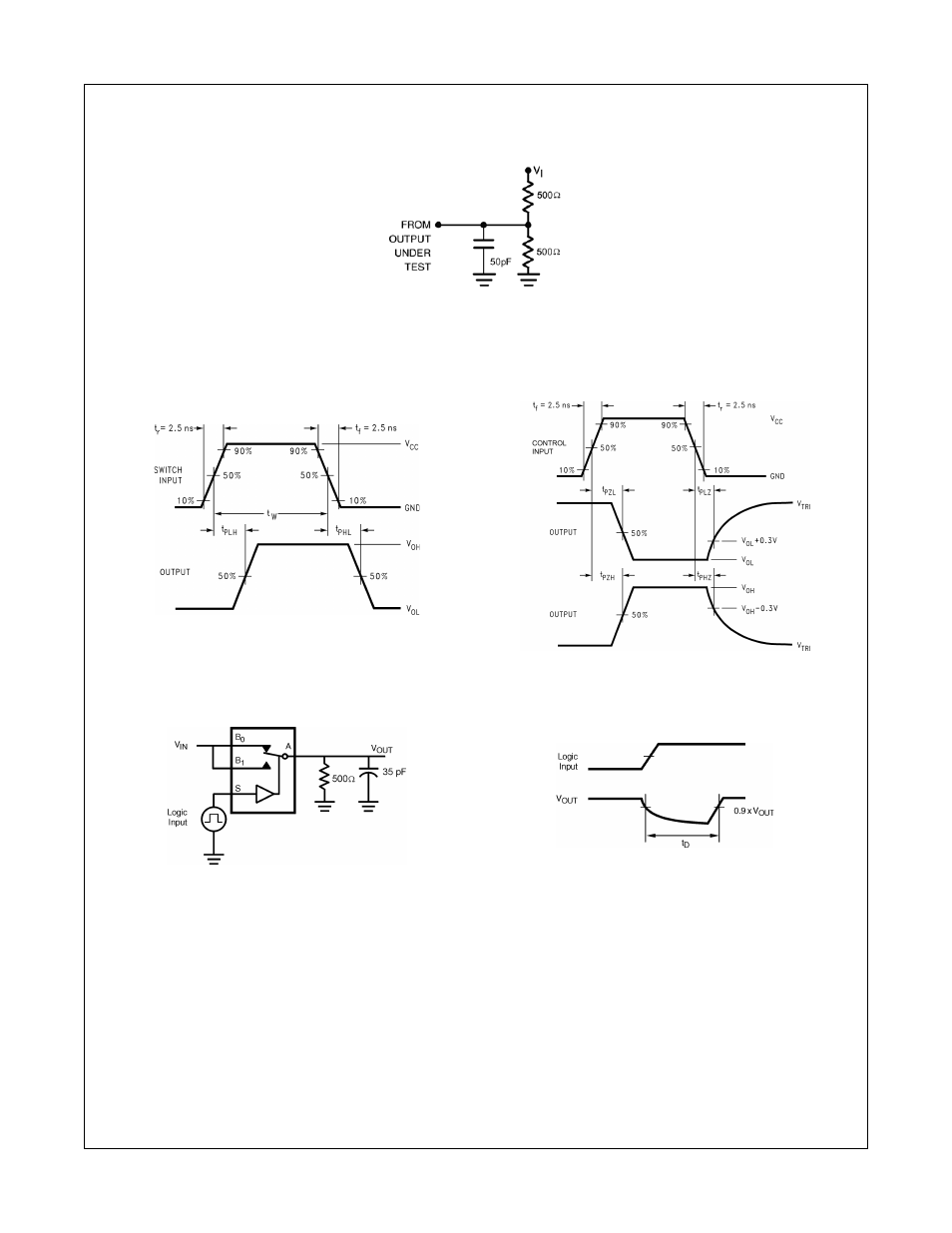

FIGURE 1. AC Test Circuit
FIGURE 2. AC Waveforms
FIGURE 3. Break Before Make Interval Timing
