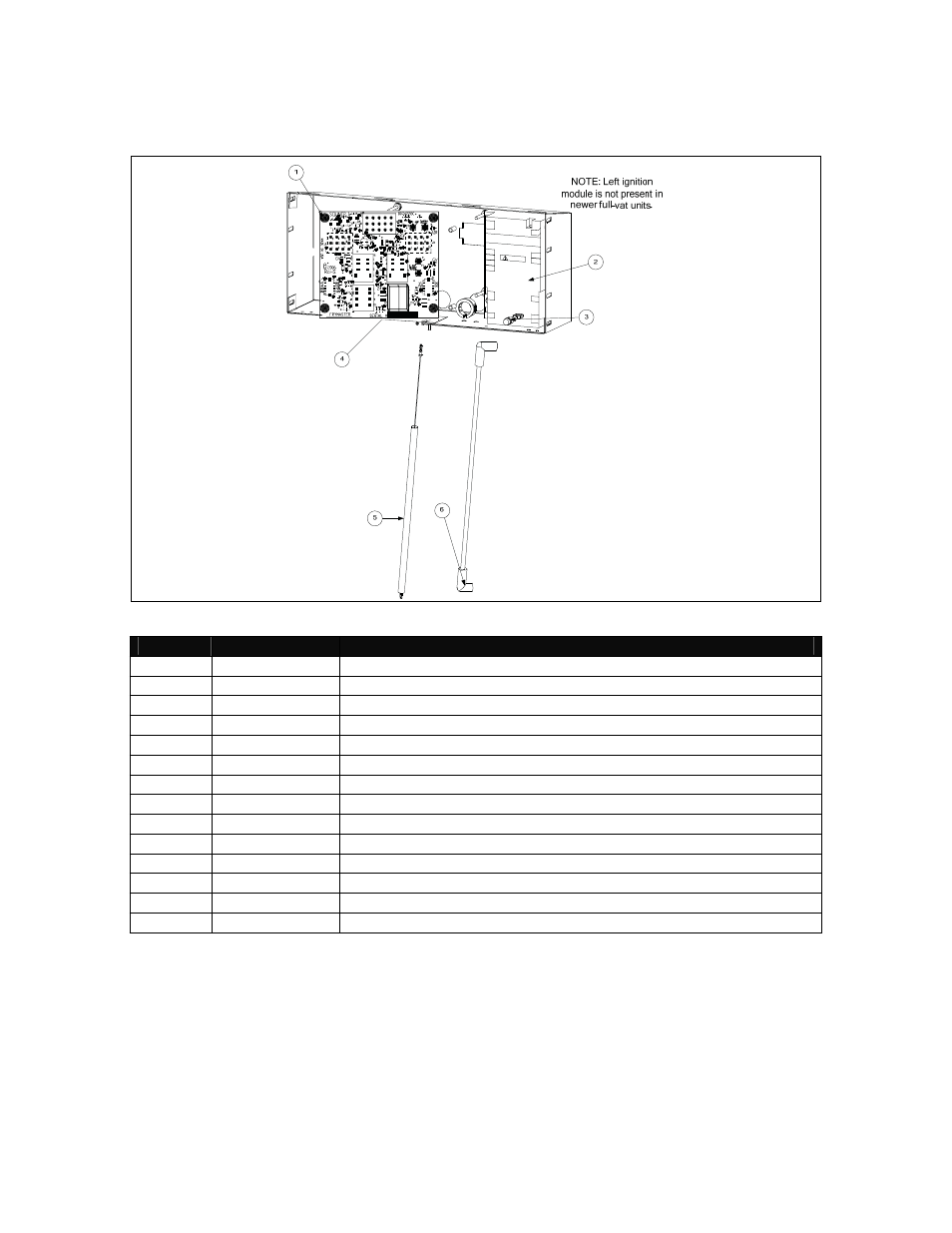

Gas Control Box Components
Item Part # Component
1 826-2264 Interface Board
2 807-3366† Ignition Module, Dual-spark Full-vat
* 807-3365† Ignition Module, Single-spark Dual-vat
* 807-1006 Ignition Module for Pre-August 2000 units
3 807-3484 Connector, Rajah
4 807-0833 Relay, DPDT 5A 12VDC Latch
* 807-0834 Relay, SPDT 15A 12VDC Basket Lift (See Note 2 below)
5 826-2024 Cable, 21-inch Ignition (comes with Rajah connector)
6 806-6085 Flame Sensor wire assembly
* 826-1721 Ignition Cable (2 ignition cables, 2 rajah connectors)
* 807-1200 Ignition Wires, 27-inch (used with 807-1006)
* 807-1878 Ignition Wires, 19-inch (used with 807-1006)
* 806-3660 Sound Device, High Output
* 826-2458 Speaker, McDonald’s
* Not illustrated.
† For dual-vat units, use 807-3365 Single-Spark Ignition Module (see NOTE 1).
NOTE 1: Dual-vat units use two 807-3365 Single-Spark Ignition Modules. Full-vat units use one
807-3366 Dual-spark ignition module. Also, in full-vat units, only one latch relay is used, located
in the lower right socket.
NOTE 2: Basket lift relays are present only on units equipped with basket lifts.
