• Plug the battery connector into the motor
harness connector.
Note: If the battery connector will not plug into the motor
harness connector, turn it over and try again! Do not force
the battery connector into the motor harness connector.
Motor Harness
Connector
Battery
Connector
IMPORTANT! Use only a Power Wheels
®
Type H 6 volt
battery with a Power Wheels
®
25 Amp fuse installed. Use of
any other battery or fuse will damage your vehicle. Make
sure that you charge the battery for at least 18 hours using
the enclosed Power Wheels
®
6 Volt charger before operating
your vehicle for the first time. Charge the battery for at least
14 hours after each use of the vehicle. Never charge the
battery longer than 30 hours. Failure to follow these
instructions may damage your battery and will void your
warranty.
Battery Installation
H

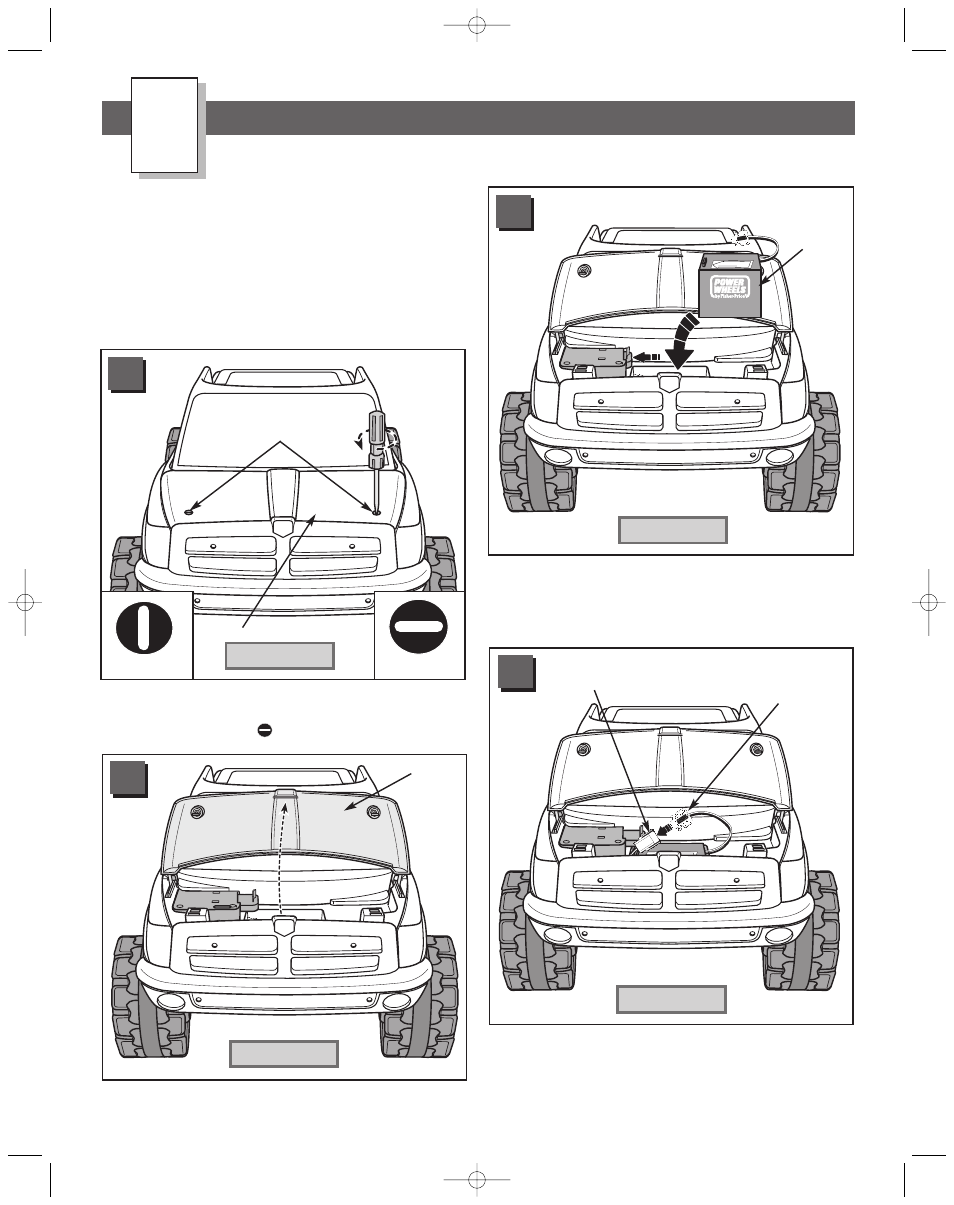

• Locate the lock fasteners in the hood.
• Using a slotted screwdriver, turn each lock fastener
1
/
4
turn to the unlocked
position.
• Lift the hood.
Locked
Unlocked
®
IMPORT ANT
A 25
AMP FUSE MUST
BE INST ALLED IN
TO
P
OF BA TTER
Y BEFORE
TO
Y WILL
RECHARGE
OR OPERA TE
• While pushing the battery clamp, fit the battery into the
battery compartment.
• Release the battery clamp to secure the battery in the
battery compartment.
Lock Fasteners
Hood
Hood
Battery
Front View
Front View
Front View
Front View
1
2
3
4
