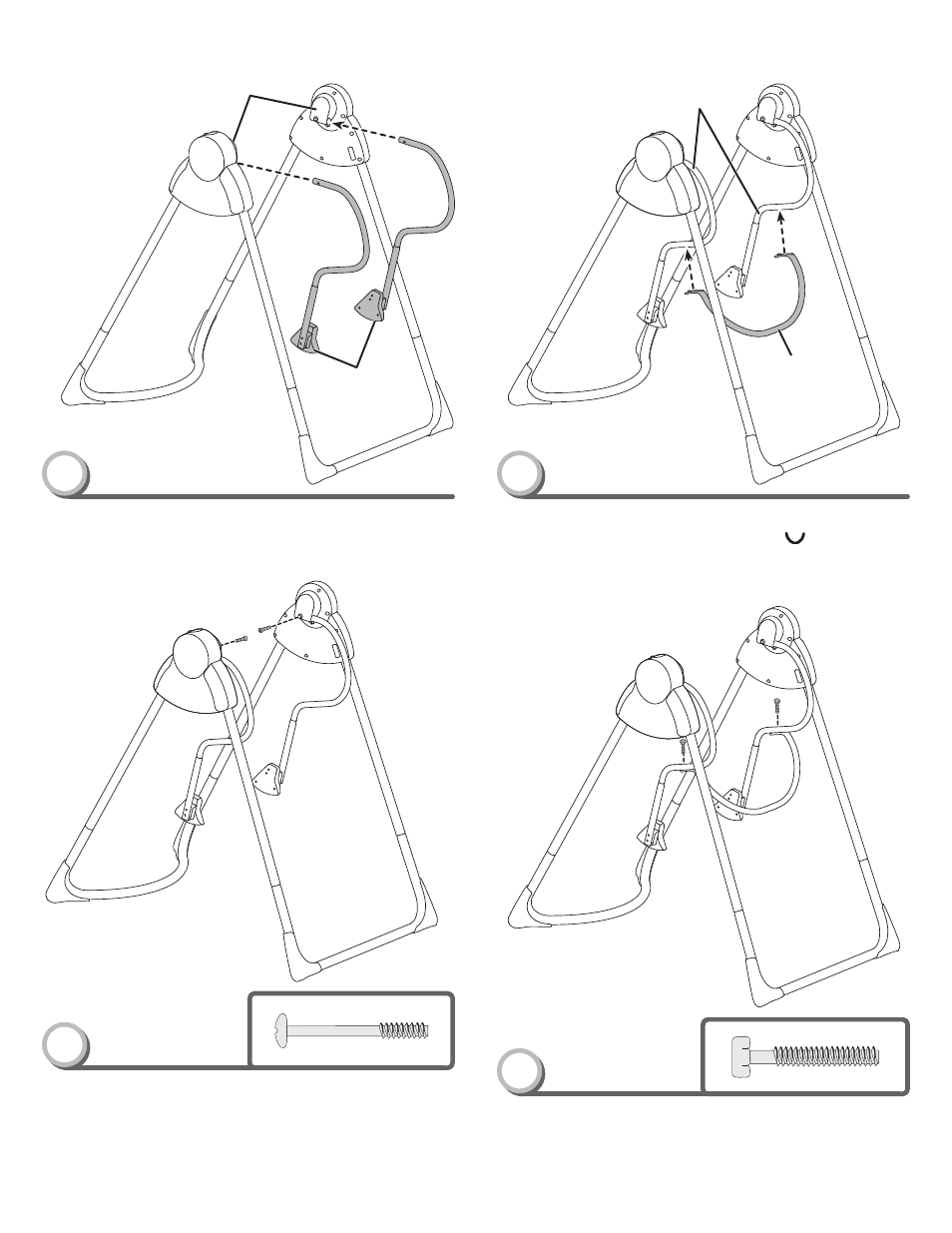

Swing Frame Assembly
Seat Tubes
• Insert the ends of the seat tubes into the sockets in the hubs.
• Push the seat tubes in until you hear a “snap” (for each).
Hubs
• Insert a #4 x 3,18 cm screw into each hub and tighten.
5
6
• Locate the holes on the bottom of the seat tubes.
• Position the seat tube support so that it is a
shape.
• Fit the seat tube support to the seat tubes. Hold the seat tube
support in place and proceed to step 8.
Seat Tubes
Seat Tube Support
7
• Insert an M5 x 2,9 cm screw through each seat tube and the
seat tube support.
IMPORTANT! Please follow the next assembly (step 9) carefully to
completely secure the seat tube support to the seat tubes.
