FMI PENINSULA FGPN - Manual (Page 9)

www.fmiproducts.com 105163-01E 9
CAUTION: Log heaters in-
stalled in this firebox create warm
air currents. These currents move
heat to wall surfaces next to fire-
box. Installing firebox next to vinyl
or cloth wall coverings or operat-
ing firebox where impurities (such
as, but not limited to, tobacco
smoke, aromatic candles, clean-
ing fluids, oil or kerosene lamps,
etc.) in the air exist, may discolor
walls or cause odors.
IMPORTANT: Vent-free gas log heaters add
moisture to the air. Although this is beneficial,
installing firebox in rooms without enough
ventilation air may cause mildew to form from
too much moisture. See Air for Combustion
and Ventilation, page 6.
IMPORTANT: Make sure the firebox is level.
If firebox is not level, log set will not work
properly.
Note: Your Vanguard firebox is designed to
be used in zero clearance installations. Wall
or framing material can be placed against any
exterior surface on the rear, sides or top of
your firebox, except where standoff spacers
are integrally attached. If standoff spacers
are attached to your firebox, these spacers
can be placed directly against wall or fram-
ing materials.
Use dimensions shown for rough openings to
create the easiest installation (see Built-In or
Internal Wall Firebox Installation, page 9).
INSTALLATION CLEARANCES
WARNING: Maintain the
minimum clearances. If you can,
provide greater clearances from
floor, ceiling and adjoining wall.
Carefully follow the instructions below. This
will ensure safe installation.
Minimum Wall and Ceiling Clearances
A. Clearances from edge of liner to any
combustible wall should not be less than
8" (see Figure 5).
B. Clearances from top of firebox opening to
the ceiling should not be less than 42".
iNSTALLATiON
Continued
C. When the firebox is installed on carpet-
ing or other combustible material, other
than wood flooring, the firebox should be
installed on a metal or wood panel extend-
ing the full width and depth of enclosure.
D. Clearances from the bottom of firebox to
the floor is 0".
E. Clearances from open end of firebox to fac-
ing wall shall should not be less than 36".
CAUTION: Do not install fire-
box directly on carpet or vinyl.
CAUTION: Use only the clear-
ances specified in this manual or
on the firebox rating plate.
Minimum clearances to combustibles are:
• Sides of outer casing 0" min.
• Drywall to sides and top of 0" min.
front face
• Ceiling to opening 42' min.
• Floor (see Minimum Wall 0" min.
and Ceiling Clearances, note C)
• Perpendicular walls 4' min.
Right and Left
• Distance to Facing Walls 36" min.
on Sides and End of Firebox

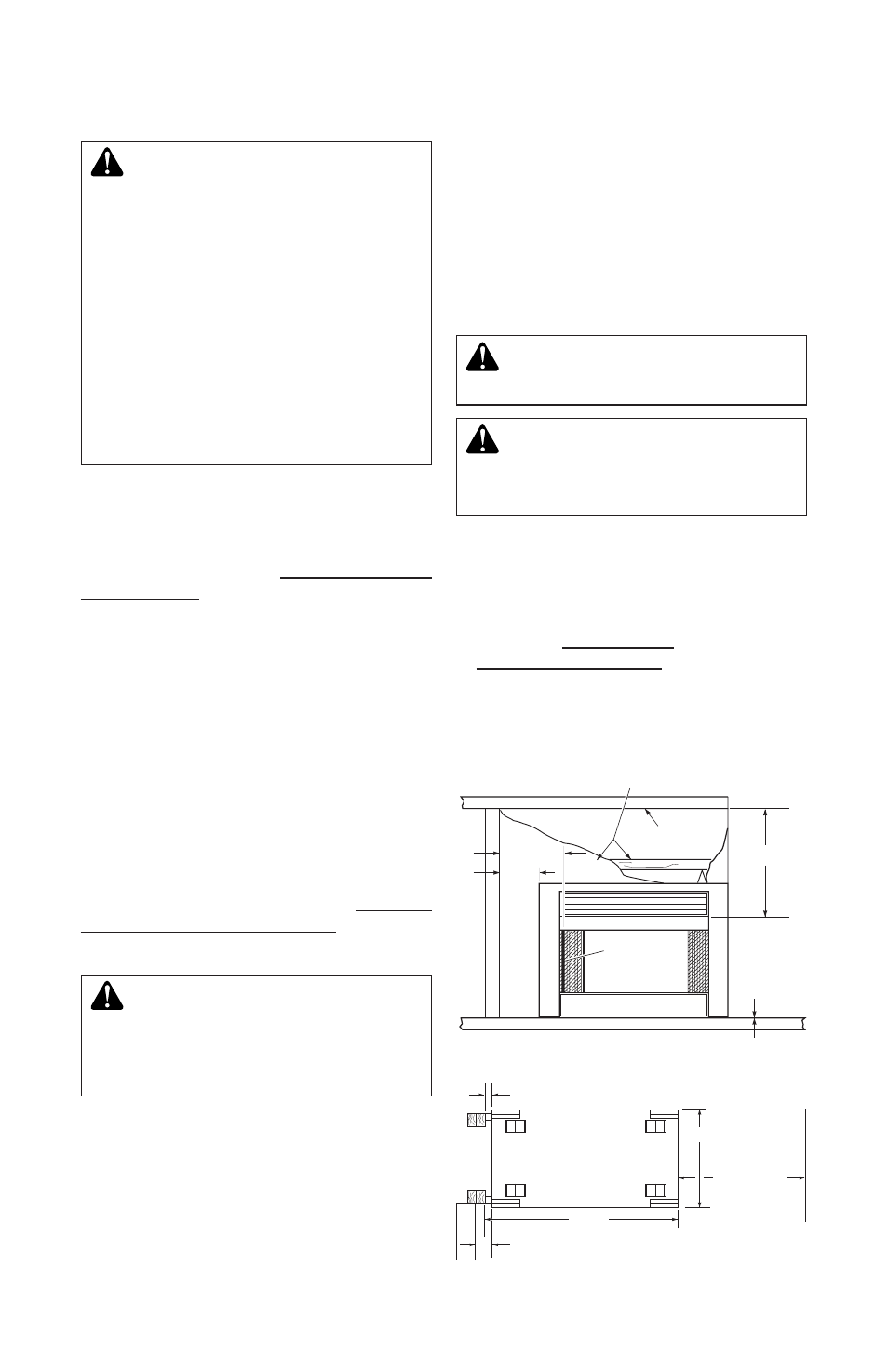

Figure 5 - Minimum Clearance Front View
42" Min.
0" to Wood
Floor
8" Min.
4"
Min.
0" Min. Clearance to Upper Frame/Wallboard
Ceiling
Edge of
Brick Liner
4" Min. from the Perpendicular
Side Wall to the Edge of Facia
1/2" Min. Clearance
to Combustibles
43 3 /
4
"
24"
36" Minimum
from Edge of
Facial to
Facing Wall
on Open End
of Firebox
Figure 6 - Minimum Clearance - Top View
