INSTALLATION OF TEE SECTION
Locate the draft control as near to the furnace or boiler as possible. If the
installation has a smokepipe stack control, locate the regulator at least 18" away
from the stack control. (See Figures 3-9)
F
OR
W
OOD
F
UEL
When burning wood, creosote builds up in the flue pipe. For this reason the tee
should be assembled so that the beaded and crimped end is pointed downward.
This prevents seepage at the joints. (See Figure 1)
F
OR
O
THER
F
UEL
Install tee with beaded and crimped end pointed upward. (See Figure 2)
NOTE: Damper must be mounted with the hinge pins horizontal and the face of the damper plumb for correct operation.
This is done by rotating the damper section within the collar for any pipe position. Tighten screw to hold firmly in place.

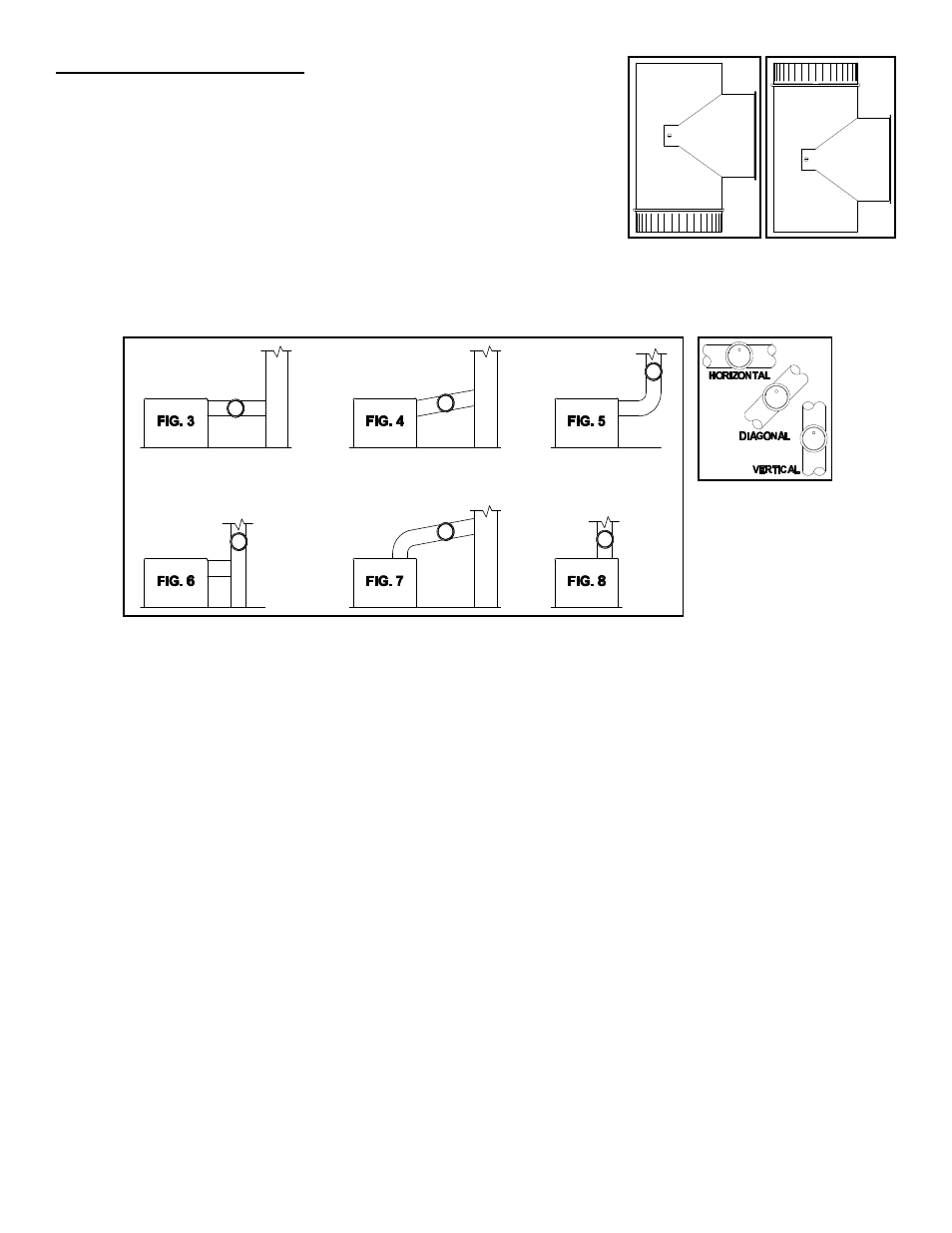

Figure 2
Figure 1
BEST LOCATIONS FOR OIL OR SOLID FUELS
Figures 3-8
*Selected sizes CSA and UL approved. Not CSA certified for solid fuels.
Figure 9
