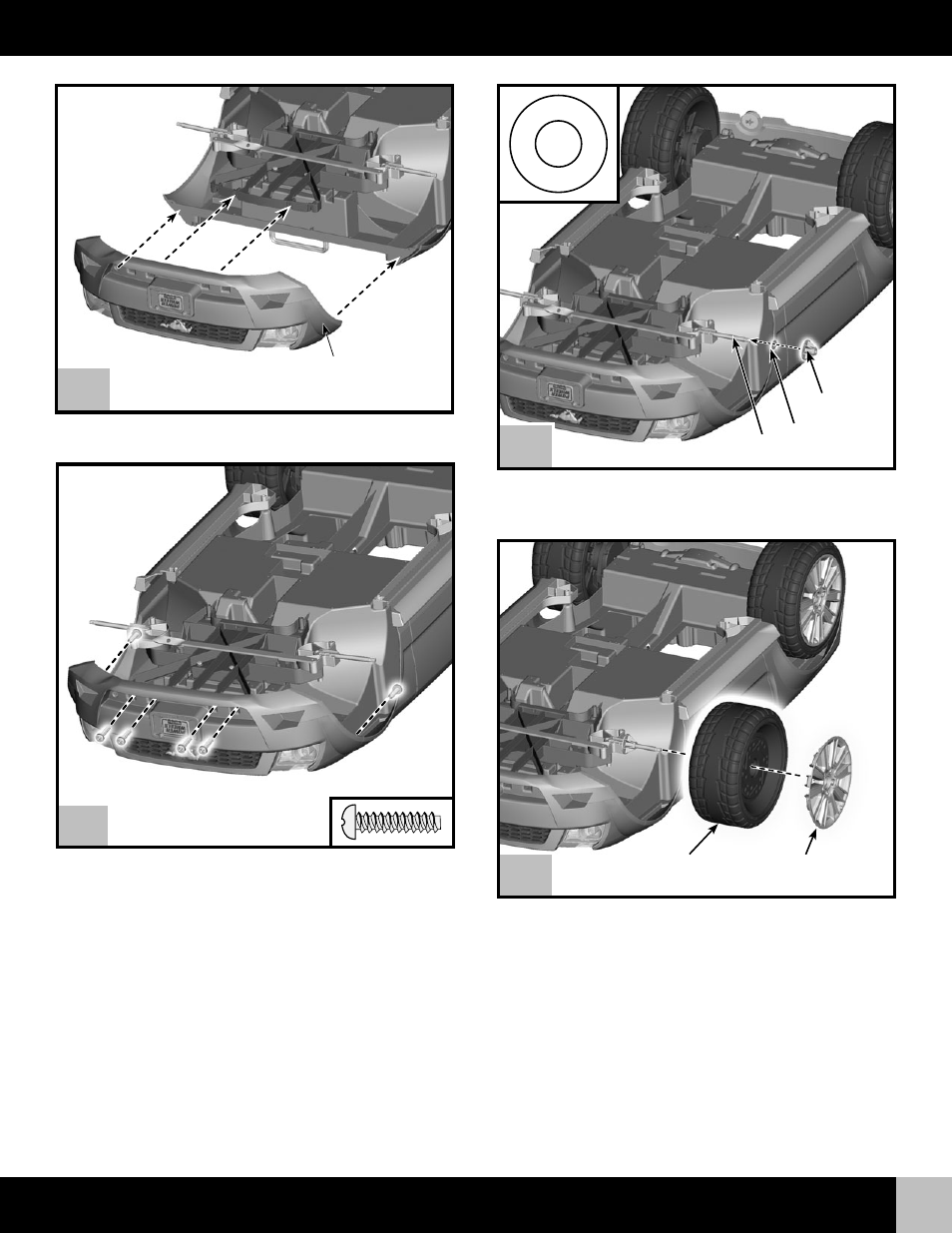

ASSEMBLY

Front Axle

4

• Slide a

7⁄16" washer the right (passenger's) side of the front axle.

• Fit a bushing, flat side first, onto the front axle.

• Insert six #8 x

¾ " screws into the front bumper and tighten.

3

Note: There is a right and left front wheel. They are marked with
an R and L.
• Locate the right front wheel marked with an R. Place the front

wheel R, onto the front axle on the right (passenger's) side of
the vehicle.

• Fit a wheel cover on to the right front wheel.

Wheel Cover

5

• Fit the front bumper onto the vehicle.

Front Bumper

Washer

Bushing

Front Wheel

(Marked R)
