EDGE 595r PARTS LIST
X595-01
1
water bottle
1
X595-02
2
monitor
1
X595-03
3
monitor tube wire
1
X595-04
4
monitor tube pulse wire
1
X595-05
5
M5 x 15mm phillips bolt
4
X595-06
6
monitor tube
1
X595-07
7
M5 x 16mm phillips bolt
4
X595-08
8
end plug
2
X595-09
9
front handlebar grip
2
X595-10
10
M8 x 20mm phillips bolt
16
X595-11
11
M8 spring washer
12
X595-12
12
M8 curved washer
10
X595-13
13
water bottle holder
1
X595-14
14
Ipod holder
1
X595-15
15R
right front end cap w/wheel
1
X595-16
15L
left front end cap w/wheel
1
X595-19
18
front foot tube
1
X595-20
20R
right foot pedal w/strap
1
X595-21
20L
left foot pedal w/strap
1
X595-22
21
crank cover
2
X595-23
22
M4 x 16mm phillips screw
16
X595-24
23R
right front shroud
1
X595-25
23L
left front shroud
1
X595-26
24
belt
1
X595-28
26
front handlebar
1
X595-33
31
main frame wire
1
X595-34
32
bottom cover
1
X595-35
33
main frame pulse wire
2
X595-36
34
main frame
1
X595-41
39
M4 x 19mm phillips screw
16
X595-42
40
AC adapter
1
X595-43
41
handlebar pulse wire
1
X595-44
42
M8 nylon nut
2
X595-49
47
seat
1
X595-50
48
M6 X 10mm allen bolt
1
X595-51
49
bumper
2
X595-52
50
M8 washer
6
X595-62
61
rectangle end cap
2
X595-63
62
seat carriage bushing
2 sets
X595-64
64
support tube
1
X595-65
65
barrel nut
1
X595-66
66R
right rear shroud
1
X595-67
66L
left rear shroud
1
X595-68
67
backrest
1
X595-69
68
M6 washer
8
X595-70
69
M6 x 16mm phillips bolt
8
X595-73
72
locking arm assembly
1
X595-74
73
locking arm grip
1
X595-75
74
rear foot tube
1
X595-76
75
rear end cap
2
X595-77
76
short leveler
2
X595-78
77
rear handlebar w/grip
1
X595-80
79
pulse sensor
2
X595-81
80
M2 x 16mm phillips screw
4
X595-82
81
M8 x 70mm allen bolt
2
X595-83
82
locking pin
1
X595-84
83
M12 large washer
1
X595-85
84
seat carriage
1
X595-86
85
wire plug
2
X595-87
86
seat carriage plug
1
X595-88
88
support tube pulse wire
2
X595-91
91
AC adapter wire
1
X595-92
92
allen wrench
1
X595-93
93
multi open end wrench
1
X595-94
94
multi "T" tool w/phillips
screwdriver
1
X595-FP
FP
fastener pack
1
X595-MC
MC
master carton
1
X595-OM
OM owners
manual
1
PART #
ITEM #
DESCRIPTION
QTY.
PART #
ITEM #
DESCRIPTION
QTY.

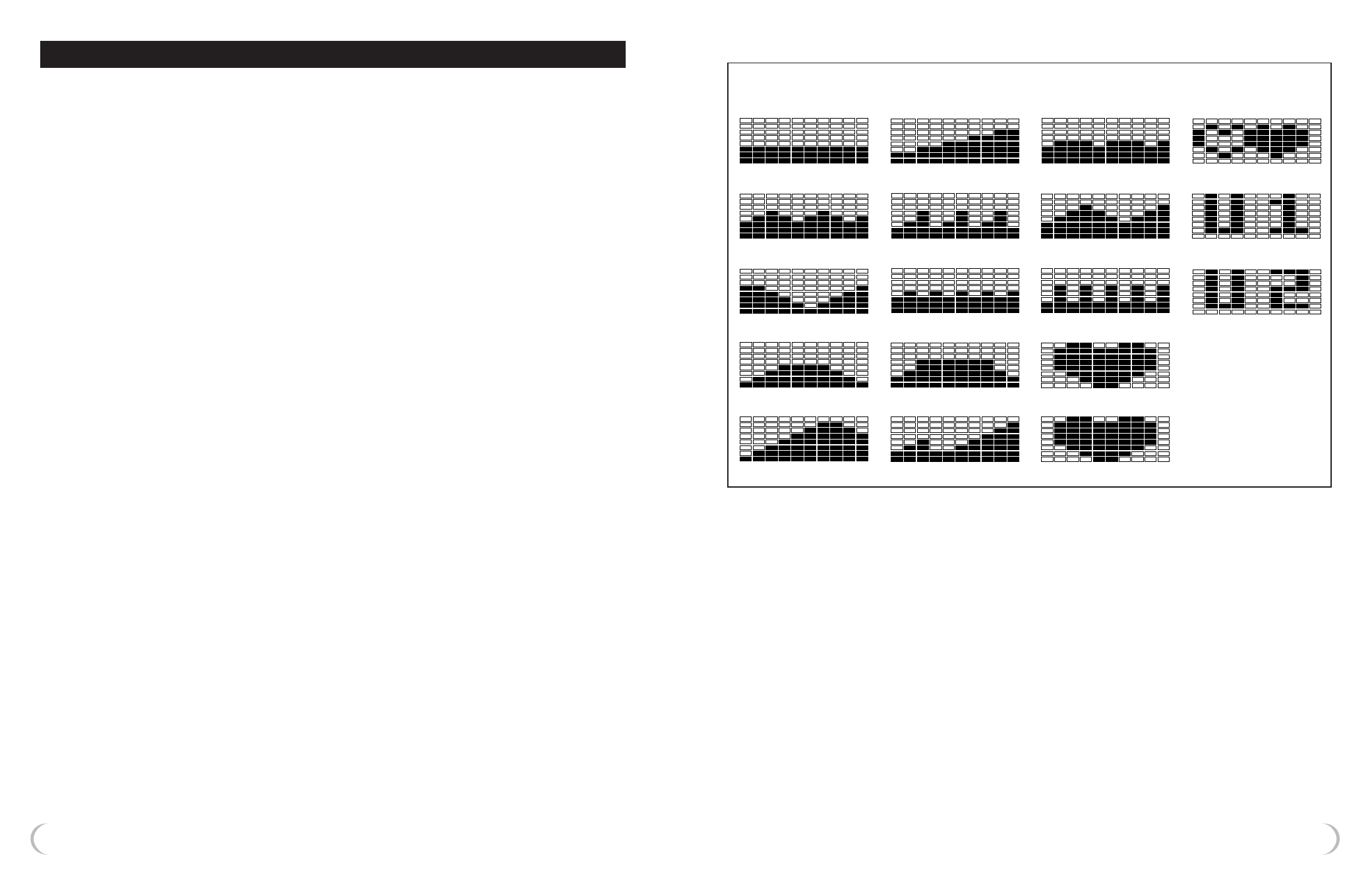

PROGRAM 2
PROGRAM 1
VALLEY
PROGRAM 3
FAT BURN
PROGRAM 4
RAMP
PROGRAM 5
FITNESS TEST
PROGRAM 6
INTERVALS
PROGRAM 7
PROGRAM 8
ROTATING
PROGRAM 13
MANUAL
ROLLING
PROGRAM 9
PROGRAM 10
RANDOM
PROGRAM 11
PROGRAM 12
PROGRAM 15
PROGRAM 16
PROGRAM 17
PROGRAM 18
PROGRAM 19
DIRECT HEART RATE
60% HEART RATE
85% HEART RATE
USER PROGRAM 1
USER PROGRAM 2
Program Profiles
