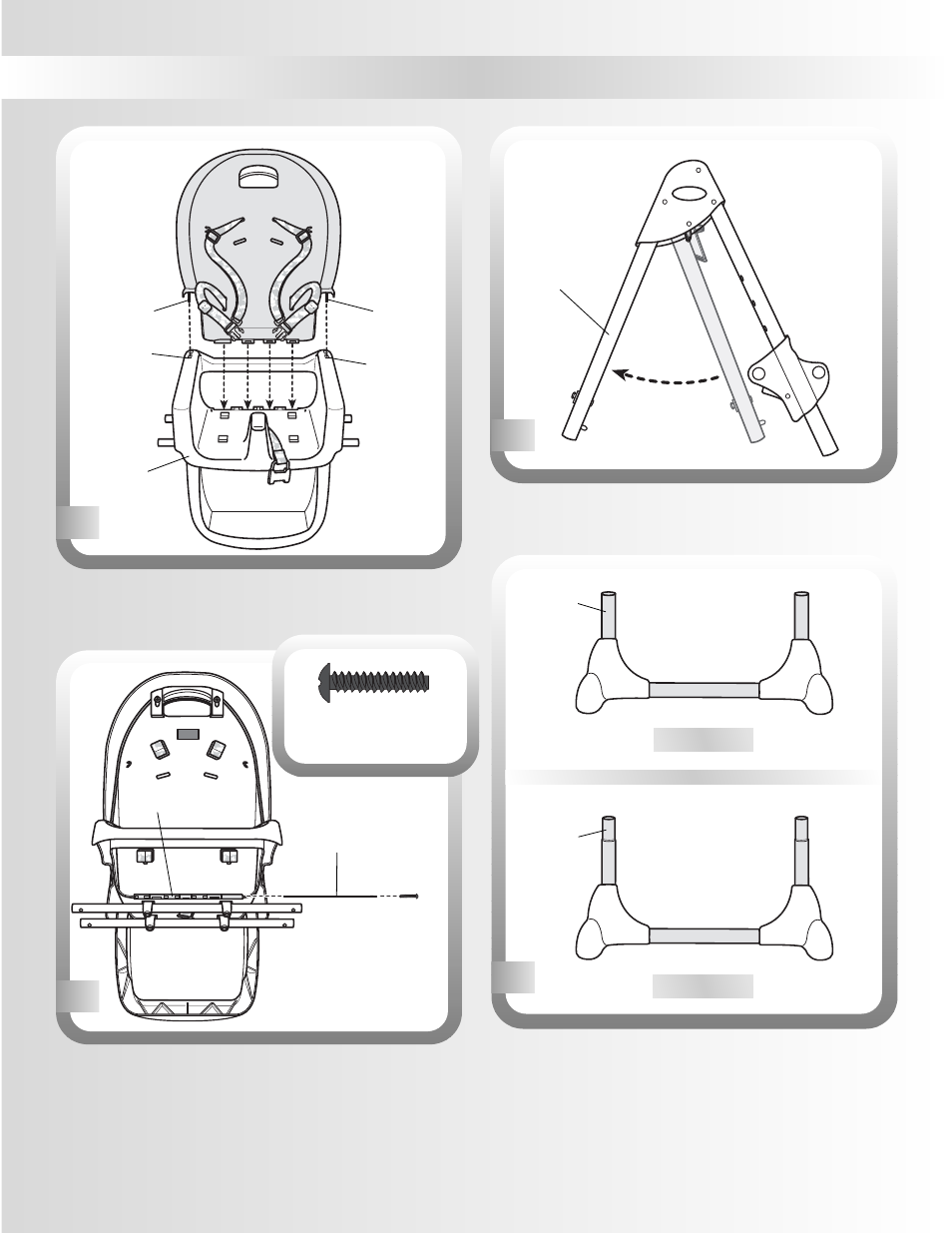

• Turn the seat bottom assembly upright.
• Fit the seat back pins into the openings in the top side of
the seat bottom assembly.
Seat
Bottom
Assembly
Seat Back
Pin
Seat Back
Pin
Opening
Opening
Assembly
• Turn the seat assembly face down.
• Insert the hinge rod through the hinge on the seat back
and seat bottom, as shown.
• Insert a #10 x 7 / 8 " black screw into the hinge rod.
• Tighten the screw with a Phillips screwdriver.
Do not over-tighten.
• Set the seat assembly aside for Assembly step 11.
• Pull the frame leg out on each frame to open. Make sure it
“clicks” into place.
5
Hinge Rod
Long
Tapered
Leg Tube
Hinge
Frame Leg
• Identify the back and front base. The back base has short leg
tubes and the front base has long, tapered leg tubes. You will
use the back base for the next assembly step.
Front Base
Back Base
5
6
8
7
#10 x 7 /
8
" Black Screw
SHOWN ACTUAL SIZE
Short Leg
Tube
