Foundations 100-EH - Manual (Page 2)

1
A.D.A. Compliance:
4.4.1 Maximum Protruding Objects
4.2.5 Forward Reach
4.2.6 Parallel Approach
4.27.4 Operation
Compliant when properly installed.
ADULT INSTALLATION REQUIRED.

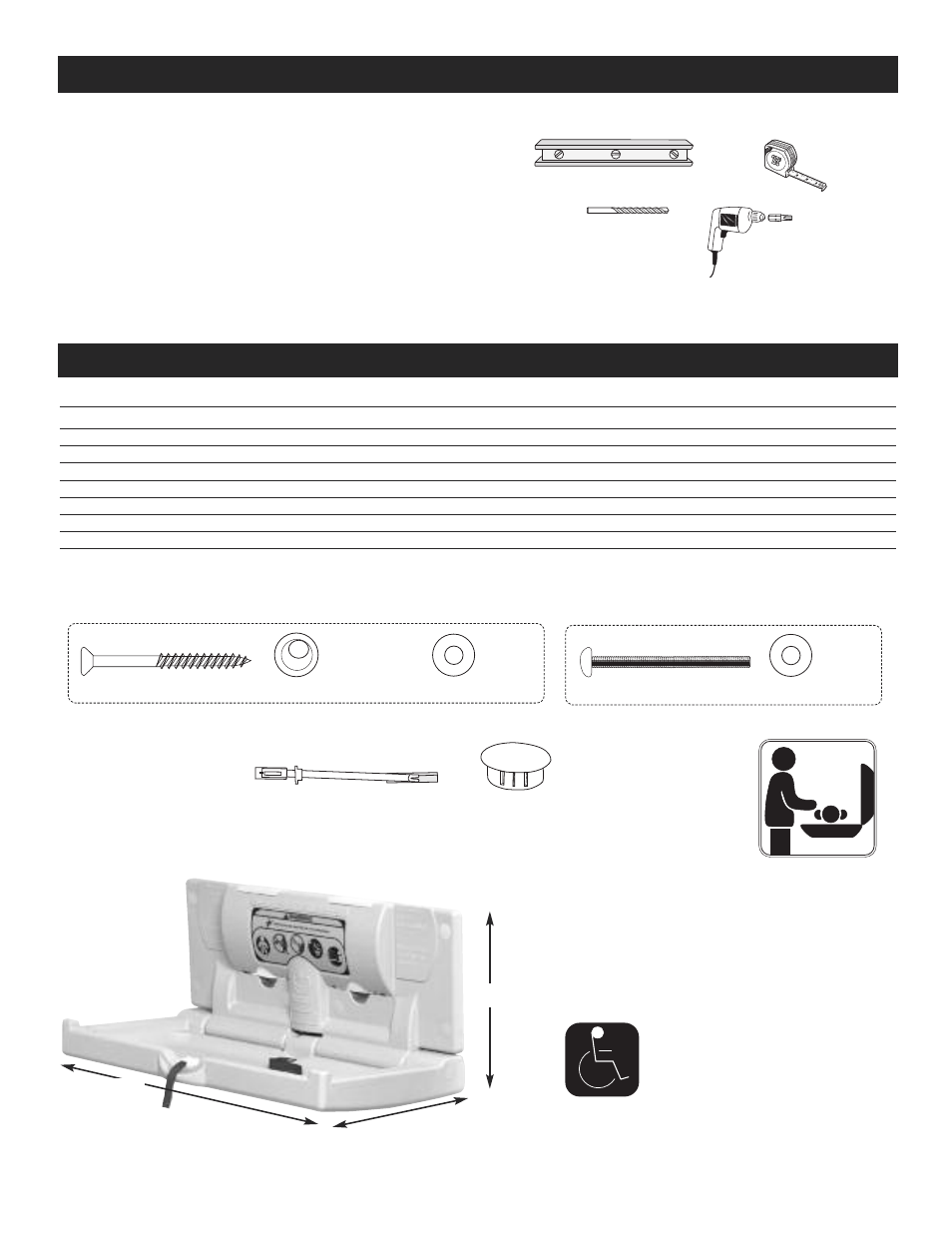

TOOLS REQUIRED:
Level (A)
Measuring tape (B)
Power drill with 7/32”, 1/8” and 1/2” masonry bits (C)
Power screwdriver with bull nose phillips bit (D)
•
READ ALL INSTRUCTIONS BEFORE ASSEMBLY OF Diaper Changing Station.
• Unpack carton and identify all parts.
ASSEMBLY INSTRUCTIONS
Parts Description Quantity
Hardware for installation:
3” Wood Screws 4
3/4” Finishing Washers 4
3” Machine Screws 2
3/4” Flat Washers 4
Toggle Anchors 2
1-1/4” Caps 6
Door / Wall Plate 1
3” Wood Screws
PARTS LIST
3/4” Finishing Washers 3” Machine Screws 3/4” Flat Washers
Toggle Anchors
1-1/4” Caps
15-3/8”
(390 mm)
17-1/2”
(445 mm)
34-1/4”
(870 mm)
For Wood Studs:
3/4” Flat Washers
For Use With Toggle Anchors:
Door / wall plate to be
mounted on outside of
restroom door.
A B
D C
