Installation instructions

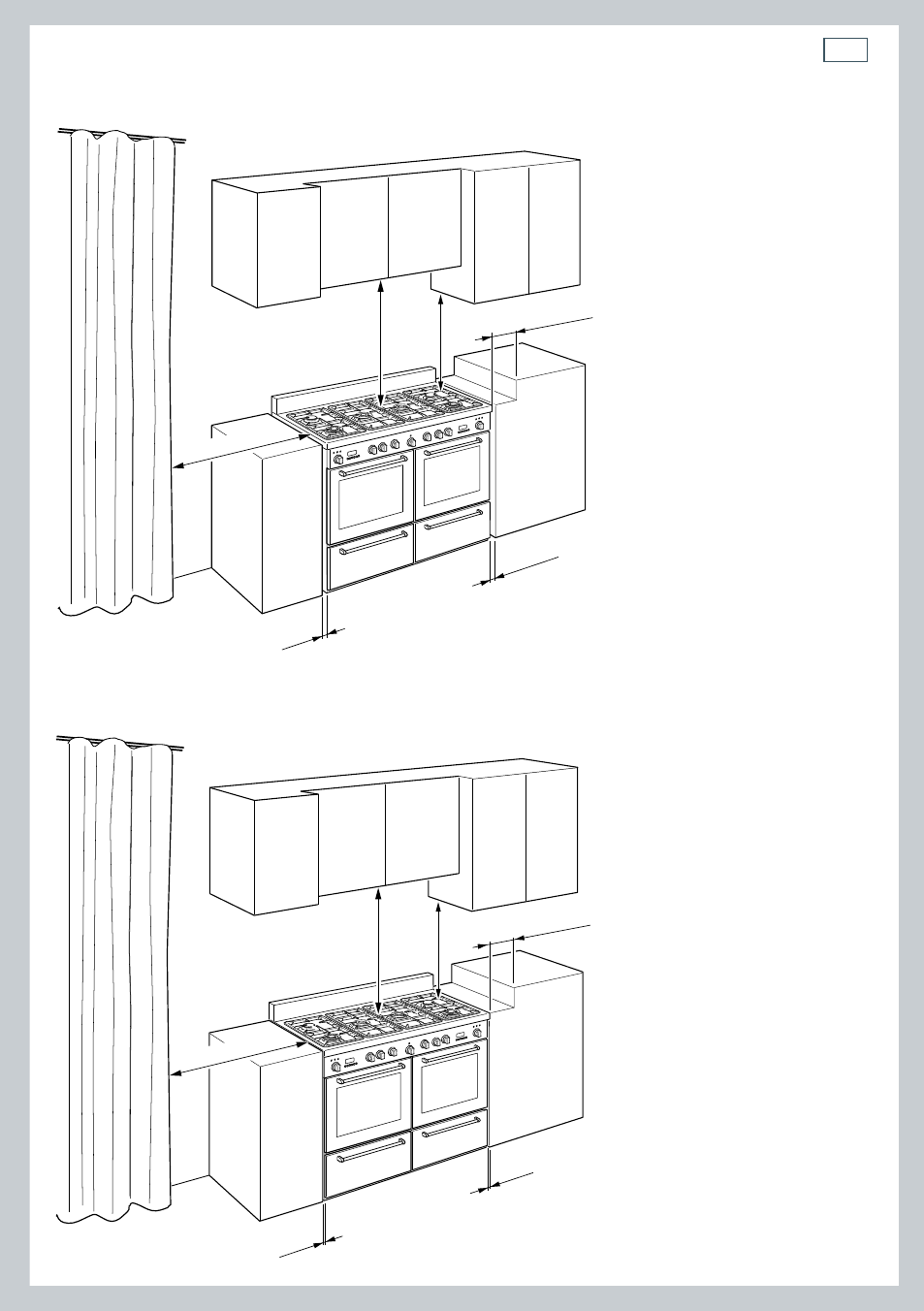

450 mm
minim
um
minim
um
650 mm
0 mm
0 mm
500 mm minim
um
200 mm minim
um
450 mm
minim
um
minim
um
650 mm
20 mm
20 mm
500 mm minim
um
200 mm minim
um
Gas connection made
using rigid or flexible
metal pipe.
Class 2
Subclass 1
Class 1
Gas connection made
using rubber hose
which must be visible
and easily inspected or
using rigid or flexible
metal pipe.
Fig. 3a
Fig. 3b
