FORD 1998 E-150 - Manual (Page 83)

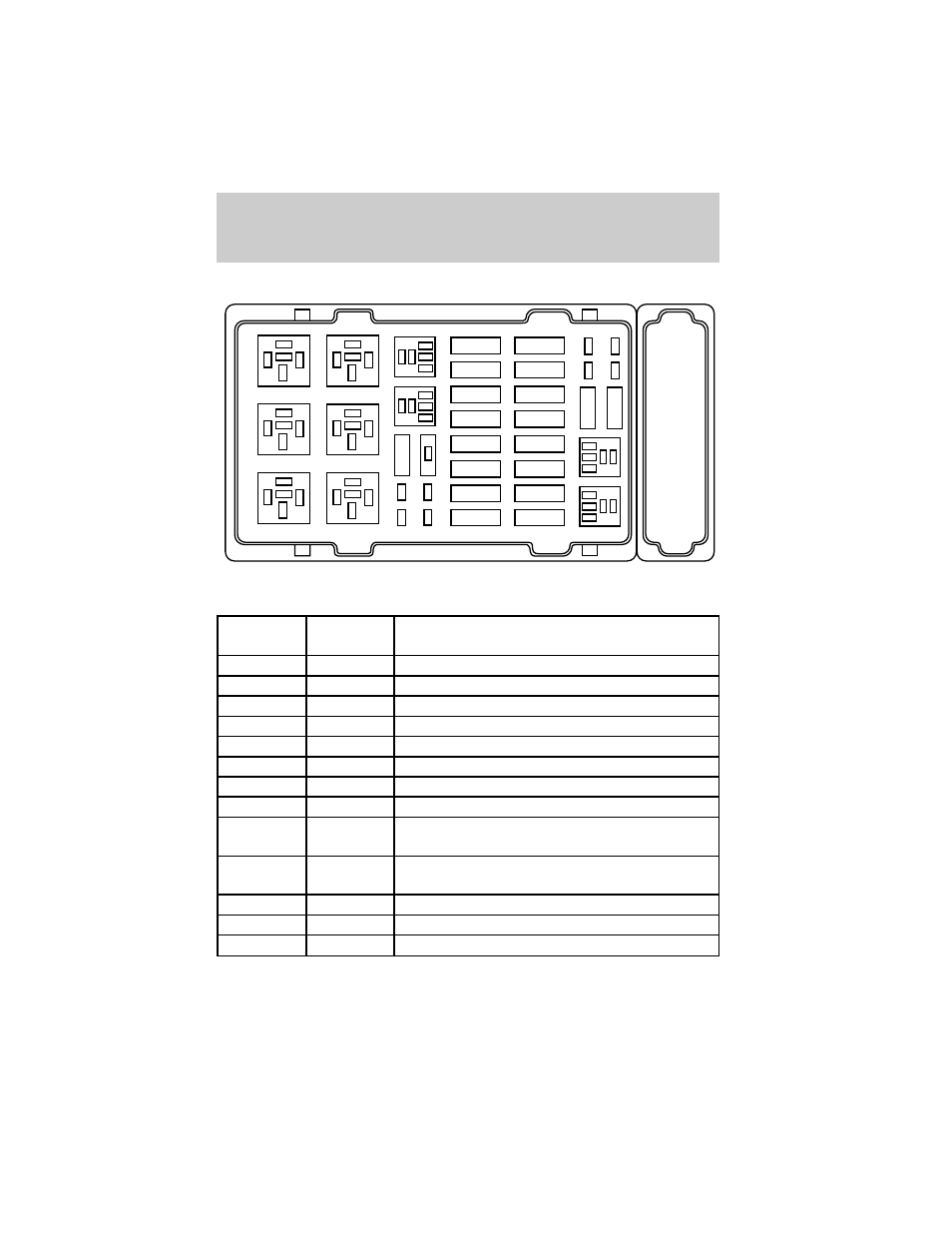

The high-current fuses are coded as follows.
Fuse/Relay
Location
Fuse Amp
Rating
Description
1 — Not Used
2 — Not Used
3 — Not Used
4 10A PCM Keep Alive Memory, Instrument Cluster
5 10A Right Trailer Turn Signal
6 10A Left Trailer Turn Signal
7 — Not Used
8 60A I/P Fuses 5, 11, 23, 38, 4, 10, 16, 22, 28
9 30A PCM Power Relay, Engine Compartment Fuse
4
10 60A Auxiliary Battery Relay, Engine Compartment
Fuses 14, 22
11 30A IDM Relay (1998 1/2 Vehicles)
12 60A Engine Compartment Fuses 26, 27
13 50A Blower Motor Relay (Blower Motor)
AB
3 2
1
46 57
15
14
13
12
11
10
9
8
23
22
21
20
19
18
17
16 24
26
25
27
29
CD
G
F
E
K
J
H
28
