Faria Instruments IS0157 - Manual (Page 11)

Page 9
P1
Harness P2

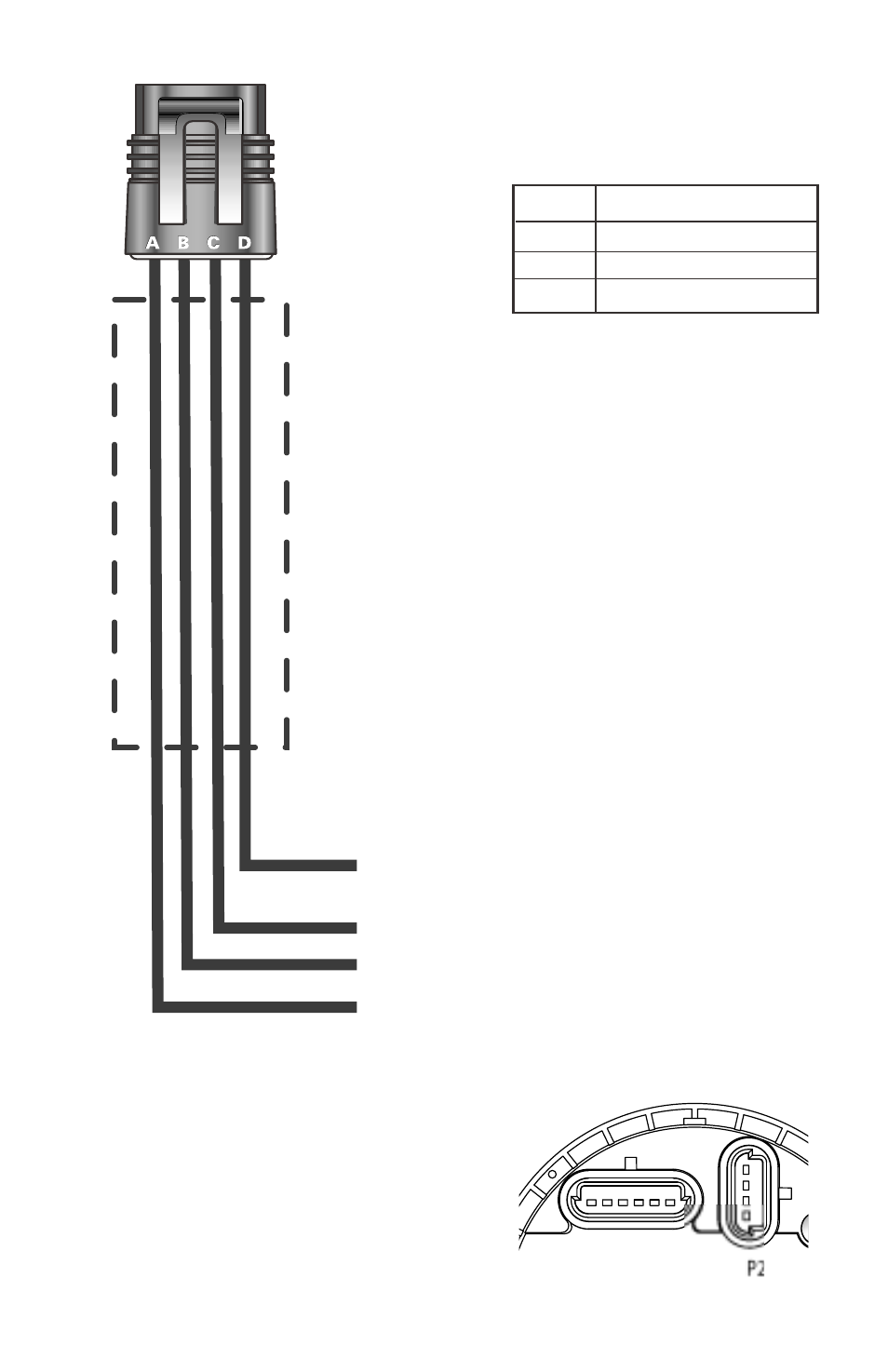

4 - pin connector
Shrink Tubing
or Wrap
Pin A Sensor V Out
Pin B Sensor Signal Input
Pin D Back/Dash Lights
Pin C Ground
Power for external sensor
Speed pulses in from sensor
Ground
Dash lights (controls
gauge back lights)
