– 7 – EN
Setup

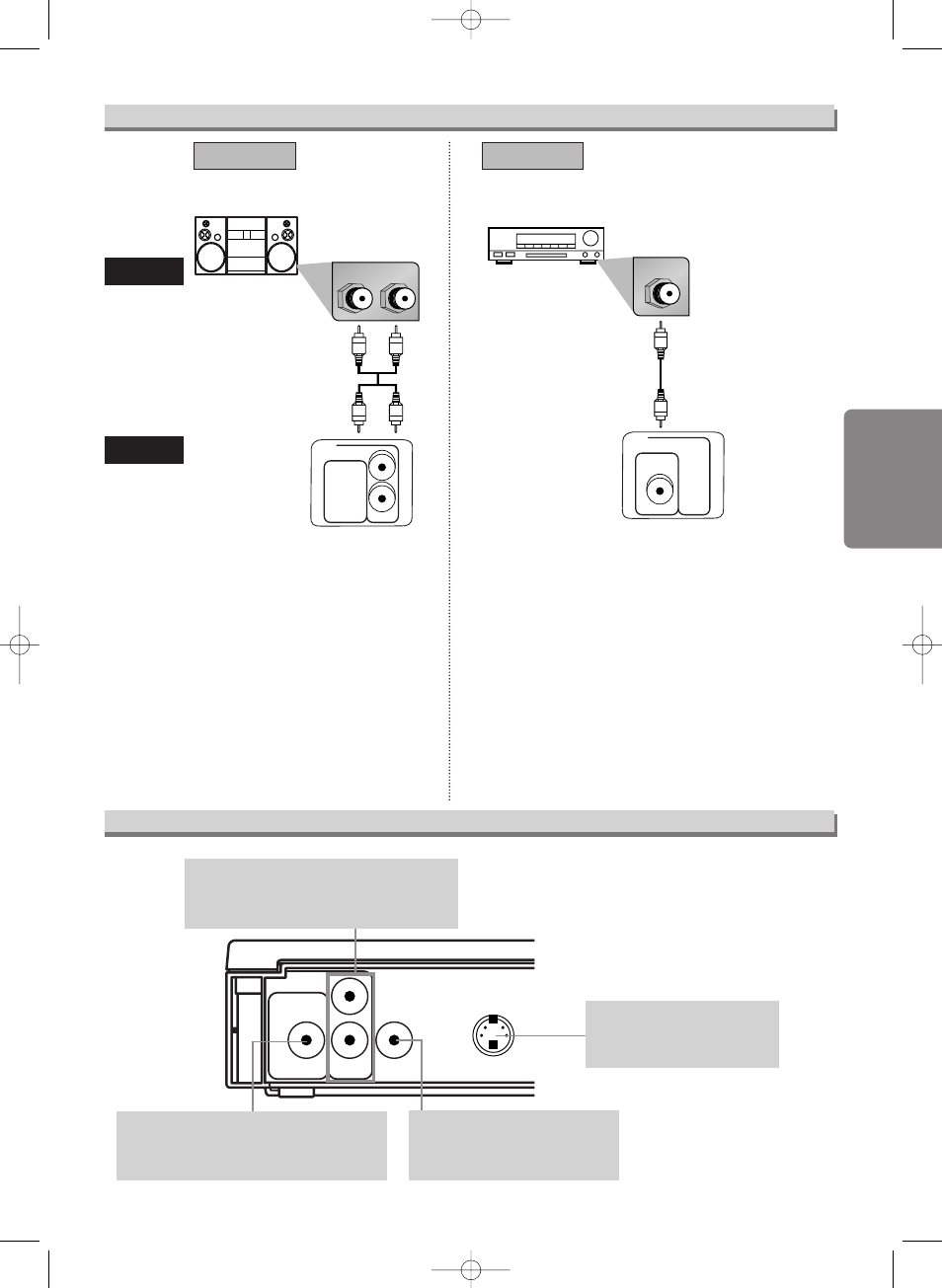

Rear Terminals
R L
AUDIO OUT
L
R
DIGITAL
AUDIO OUT
COAXIAL
Stereo system
COAXIAL
AUDIO OUT
L
R
DIGITAL
AUDIO OUT
COAXIAL
AUDIO
This unit
Method 1
Analog audio
input jacks
Digital audio
input jack
(Analog)
AUDIO OUT DIGITAL
AUDIO OUT
Method 2
Connection to an Audio System
Audio cable
(supplied)
Audio Coaxial
Digital cable
(commercially
available)
NOTES:
• If output is Dolby Digital encoded audio, connect to a Dolby
Digital decoder and set “DOLBY DIGITAL” to “ON” for the
AUDIO setting in the setup mode. (Refer to pages 14-15)
• The audio source on a disc in a Dolby Digital 5.1 channel
surround format cannot be recorded as digital sound by an
MD or DAT deck.
• Unless connected to a Dolby Digital decoder, set “DOLBY
DIGITAL” to “OFF” for the AUDIO setting in the setup mode.
Playing a DVD using incorrect settings may generate noise
distortion and may also damage the speakers. (Refer to
pages 14-15)
• Set “DOLBY DIGITAL” to “OFF” for the AUDIO setting in the
setup mode for connecting to an MD deck or DAT deck.
(Refer to pages 14-15)
• By hooking this unit up to a Multi-channel Dolby Digital
decoder, you can enjoy high-quality Dolby Digital 5.1 channel
surround sound as heard in the movie theaters.
Dolby Digital decoder,
MD deck or DAT deck
NOTE:
• Set “DOLBY DIGITAL” to “OFF” for the AUDIO setting in
the setup mode for method 1 only. Playing a DVD using
incorrect settings may generate noise distortion and
may also damage the speakers. (Refer to pages 14-15)
AUDIO OUT
L
R
DIGITAL
AUDIO OUT
COAXIAL VIDEO
OUT
S-VIDEO
OUT
AUDIO OUT jacks
Connect the supplied audio cable (red/white)
here through the audio in jacks of a TV or
other audio equipment.
S-VIDEO OUT jack
Connect an optional S-Video
cable here through the S-video
in jack of a TV.
VIDEO OUT jack
Connect the supplied video cable
(yellow) here through the TV’s
video in jack. DIGITAL AUDIO OUT COAXIAL jack
Connect an optional coaxial digital audio
cable here through the coaxial digital audio
in jack of a decoder or audio receiver.
