WATER CONNECTION
Recommended HOT
(Maximum 140°F/60°C).
Supplied hose to suit
3 /
8
”(9mm) male
compression fitting.
WATER SOFTENER MODELS
Refer to your DishDrawer® User Guide
for how to set up your water softener.
WATER PRESSURE
DRAIN CONNECTION
Drain Hose Joiner to suit Ø 3 /
4
” ± 5 /
64
” and Ø 5 /
8
” ± 5 /
64
” waste tees.
ELECTRICAL CONNECTION
110-120 VAC power outlet, 4.5 Amps Minimum.
WEIGHT
Full 93 lb (42kg) Prefinished
Empty 62 lb (28kg) Prefinished
SINGLE MODELS
NN
w
NN
w
NN
5BC
w
NN
4JEF7JFX
w
NN
%SBXFS0QFO
NN
w
NN
NN
VœÕ˜ÌiÀ̜«
“œˆÃÌÕÀi
«ÀœÌiV̈œ˜
Ì>«i
w NN
w
NN
+
.JOJNVN
UIJDLOFTTPG
DBWJUZTJEFT
JT w NN
×
 w NNTFSWJDFT
IPMFJNNFEJBUFMZ
BEKBDFOUUPDPSOFS
DBOCFFJUIFSTJEF
+ +
+
.PJTUVSF
1SPUFDUJPO5BQF
w
NN
w NN
w NN
UISPVHIPVUDBWJUZ
w
NN
w
NN
w NN
w
NN
R
SERVICES SPECIFICATIONS
LENGTH OF SERVICES (FROM PRODUCT EXIT POINT)
Drain hose - 88 9 /
16
” (2250mm)
Inlet hose - 68 7 /
8
” (1750mm)
Power supply cord - 44” (1125mm)
NOTE: Services approximately exit product 7
7 /
16
” (189mm) from left;
21 5 /
8
” (550mm) from front; 15 1 /
2
” (393mm) from top.
Maximum Minimum
Water Softener Models 145 p.s.i. (1000kPa) 14.5 p.s.i. (100kPa)
Other Models 145 p.s.i. (1000kPa) 4.3 p.s.i. (30kPa)

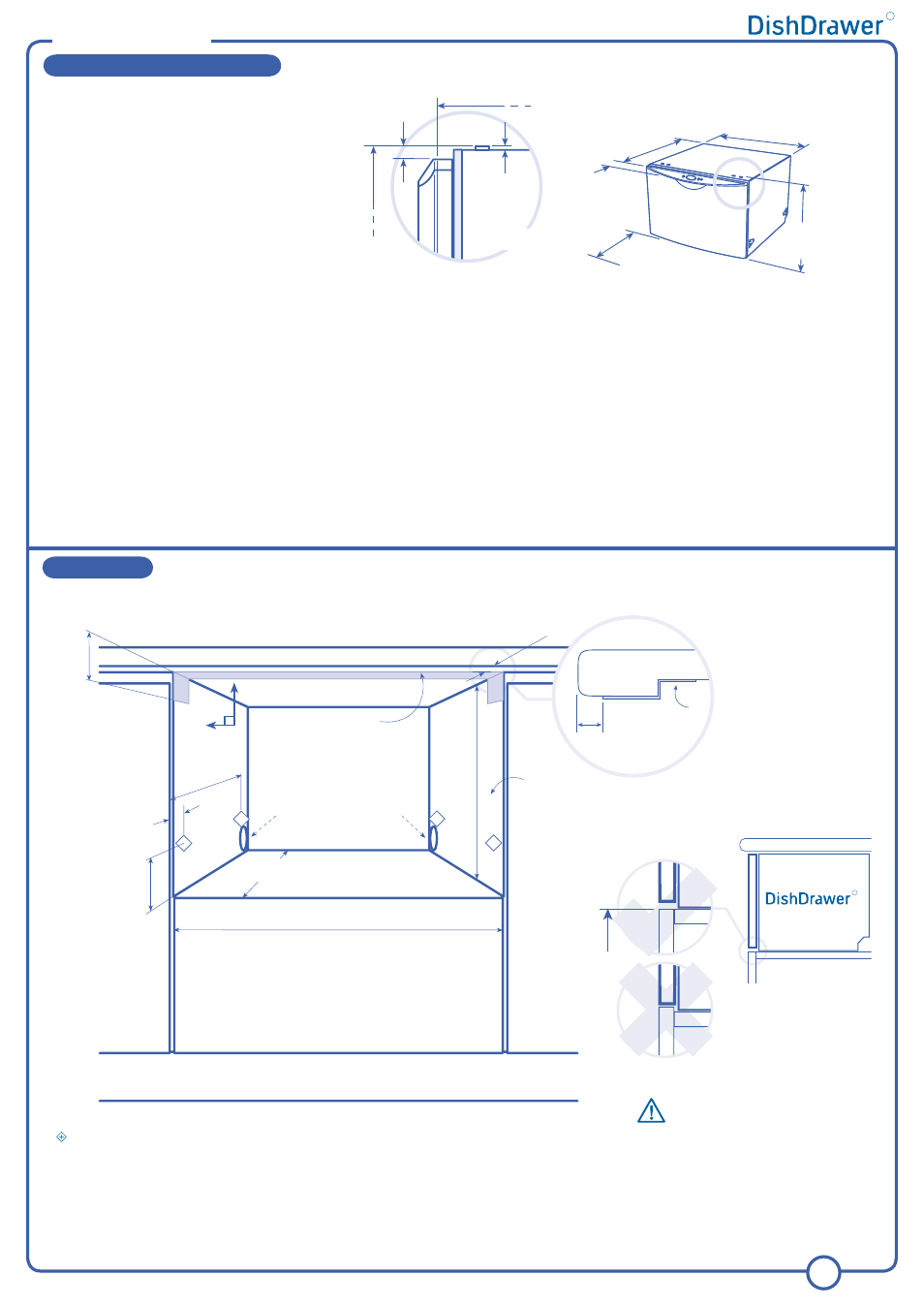

THE CAVITY
NOTE: All depth measurements are taken
from the front face of the adjacent cabinetry.
WARNING!
Be sure the edges of the services hole
are smooth or covered. If the services
hole is through a metal partition the
hole must be protected with the Edge
Protector provided to prevent damage to
the power cord or hoses.
NOTE: To align drawer front to adjacent
cabinetry, the product to countertop
clearance can be increased from
1 /
8
” (3mm).
Important!
Adjacent cabinetry must
not extend above
cavity base.
5
R
These marks indicate mounting
tab screw locations
(refer to step 1 page 7)
**
*
Prefinished model shown
*For an Integrated DishDrawer® the product depth is specified with an
11 /
16
” (18mm) Integrated Panel thickness.
** Depth of product excludes Curvature (1 3 /
16
” (30mm) -
prefinished only), or Handle.
