4-4 C141-E205
4.1.2 Mounting

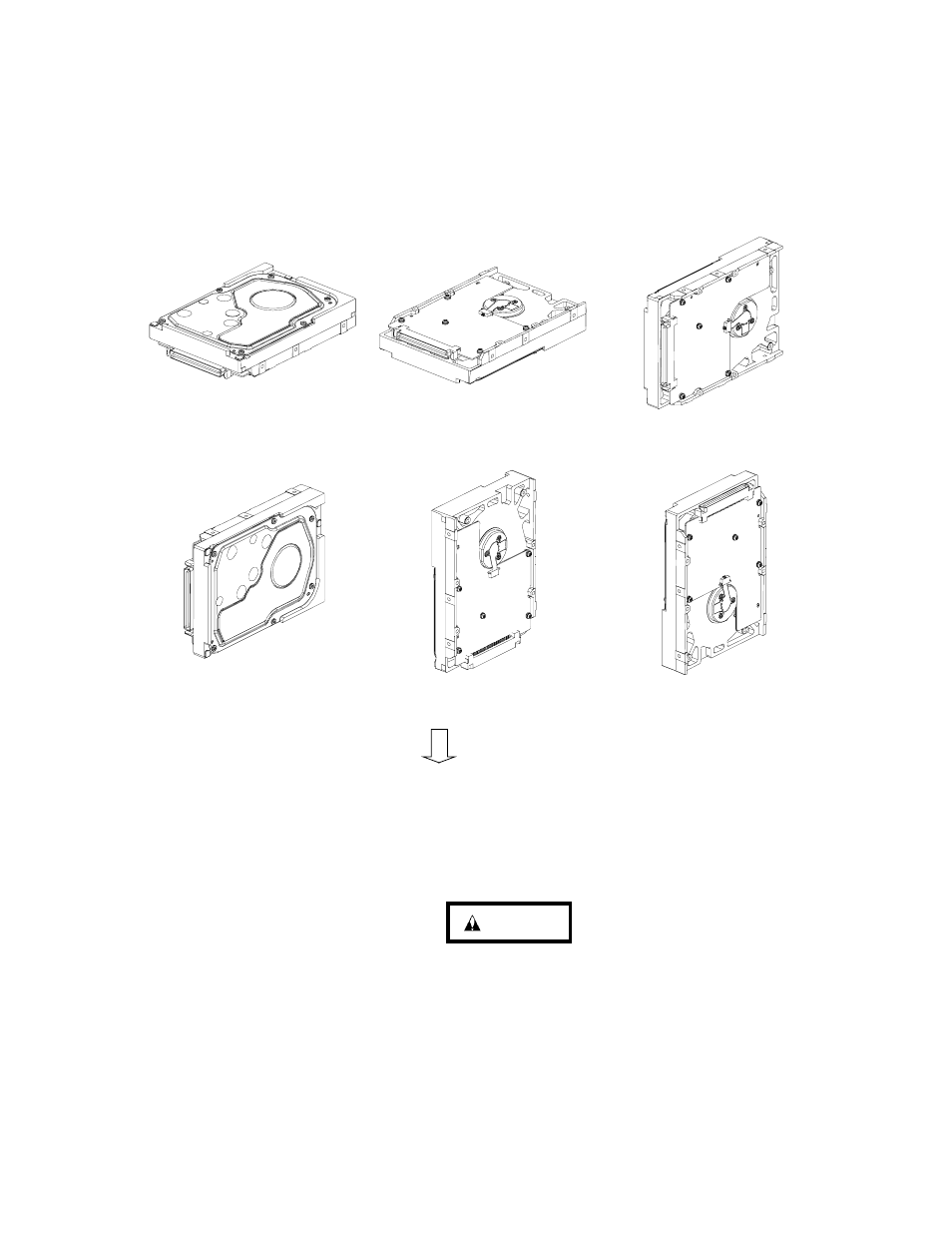

The permissible orientations of the IDD are shown in Figure 4.3, and the tolerance of the angle is
±5° from the horizontal plane.
(a) Horizontal –1 (b) Horizontal –2 (c) Vertical –1
(d) Vertical –2 (e) Upright mounting –1
Direction of
gravity
(f) Upright mounting –2
Figure 4.3 IDD orientations
4.1.3
Notes on mounting
CAUTION
Damage
Seals on the DE prevent the DE inside from the particle. Do not
damage or peel off labels.
