Elmo's musical peek-a-boo gym, Instruction sheet, Warning

background image

BATTERY SAFETY INFORMATION
In exceptional circumstances batteries may leak fluids that can
cause a chemical burn injury or ruin your toy (product).
To avoid battery leakage;
• Non-rechargeable batteries are not to be recharged.
• Rechargeable batteries are to be removed from the product before

being charged (if designed to be removable).

• Rechargeable batteries are only to be charged under adult supervision

(if designed to be removable).

• Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-

cadmium) batteries.

• Do not mix old and new batteries.
• Only batteries of the same or equivalent type as recommended are to

be used.

• Batteries are to be inserted with the correct polarity.
• Exhausted batteries are to be removed from the product.
• The supply terminals are not to be short-circuited.
• Dispose of battery(ies) safely.
• Do not dispose of this product in a fire. The batteries inside may

explode or leak.

Item No : G5136
Version : English
Size

: 8.5 x 11" (Double)

Paper

: Woodfree paper 80 gsm

Color :

Black

Date

: Apr,15. 2005 (AW)

G5136

Elmo's Musical Peek-a-Boo Gym

INSTRUCTION SHEET

Please keep these instructions for future reference as they contain important information.

Sesame Workshop ®, Sesame Street ® and associated characters,
trademarks and design elements are owned and licensed by Sesame Workshop.
©2005 Sesame Workshop. All Rights Reserved.
Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, NY 14052 U.S.A.
PRINTED IN CHINA.
Manufactured for Fisher-Price. © 2005 Mattel, Inc. All Rights Reserved.
Fisher-Price and the Fisher-Price logo are U.S. trademarks of Mattel, Inc.
Packaging and address should be retained for future reference.

Mattel Canada Inc., Mississauga, Ontario L5R 3W2. You may call us free at 1-800-432-5437.
Mattel U.K. Ltd., Vanwall Business Park, Maidenhead SL6 4UB. Helpline 01628500303.
Mattel Australia Pty., Ltd., Richmond, Victoria. 3121. Consumer Advisory Service - 1300 135 312.
Mattel East Asia Ltd., Room 1106, South Tower, World Finance Centre, Harbour City, Tsimshatsui, HK, China.
Diimport & Diedarkan Oleh: Mattel SEA Ptd Ltd.(993532-P) Lot 13.5, 13th Floor, Menara Lien Hoe,
Persiaran Tropicana Golf Country Resort, 47410 PJ. Tel:03-78803817, Fax:03-78803867.
Mattel, Inc., 333 Continental Blvd., El Segundo, CA 90245 U.S.A. Consumer Affairs 1 (800) 524-Toys.

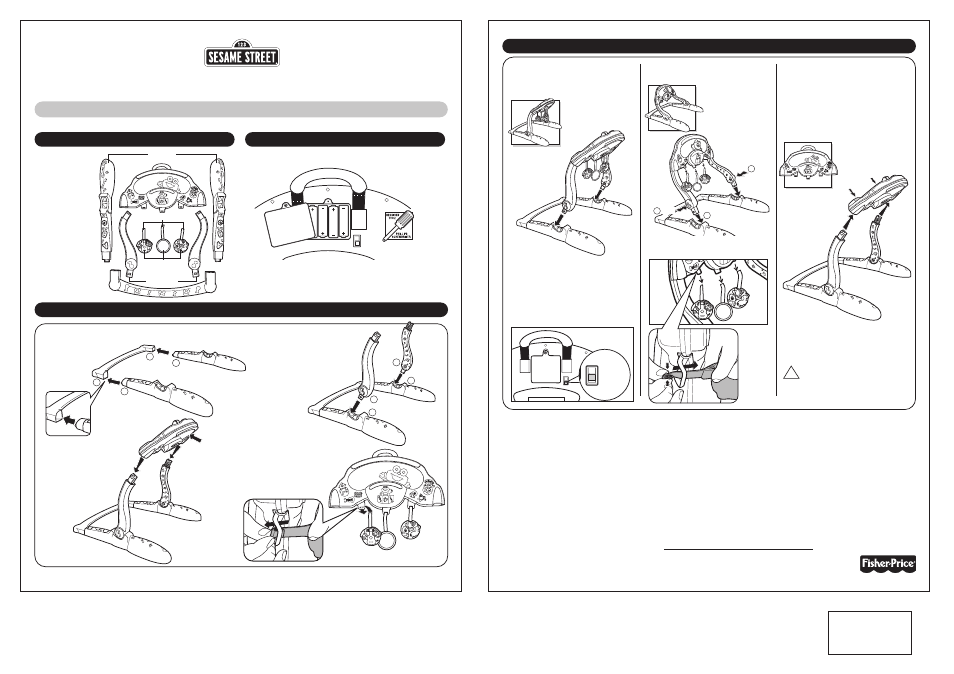

PARTS

BATTERY INSTALLATION

ASSEMBLY

HOW TO PLAY

G5136-0920

• (2) Floor Legs
• (1) Crossbar
• (2) Support Arms
• (1) Main Unit with

carry handle

• (3) Straps
• (3) Overhead Toys

• Unscrew and lift cover away
from back of product.
• Replace batteries as shown.

• The battery compartment is located on the back of the main unit.

1. Attach the two floor legs to the crossbar as shown. Make sure leg A
is attached to side A, and leg B is attached to side B.

2. Insert the Support Arms into the slots on the
Floor Legs as shown. NOTE: There are 2 possible
positions for the support arms
(see “HOW TO PLAY”).

3. Attach the Main Unit to the Support
Arms by inserting the Support Arms
into the Main Unit as shown.
Make sure Elmo is facing down
towards the floor.

4. Attach the (3) overhead toys to the Main

Unit by folding the T-shaped ends of the
straps down and then inserting them into
the slots on the Main Unit, as shown.

Overhead Gym Play

For the newborn baby who is not yet ready to crawl or sit
up - baby lies on its back looking up.

There are 2 modes that can be used for Overhead Gym Play:

SOOTHING GYM
Soothing music plays continually for 10 minutes as Elmo
moves randomly and the lights flash in a pattern. Overhead
toys and other switches are not yet activated.

STANDARD GYM
Music, lights, and Elmo are activated when baby bats at any
of the three overhead toys. Other switches are not yet
activated.

• Make sure the support arms are
in the upper position as shown.
• Set the mode switch on the back
of the main unit to the
desired mode.

Sit-Up Activity Play

For the baby who is able to sit up – baby sits and plays in
front of the toy.

• Remove the support arms from
the floor legs by pressing
the music notes on the sides
of the floor legs.
• Re-insert the support arms into
the floor legs, changing to
the lower position as shown.

• Set the mode switch on the back of the main unit to
SIT-UP ACTIVITY mode.
Baby sits up at the play center and plays with Ernie’s roller
ball, Zoe’s dial, and Cookie’s piano keys. Press the center
yellow key to make Elmo's face pop out from behind the
numbers and play “peek a boo” with the baby!

Take Along Play

For travel fun on the go!

• Press the 2 buttons on
the back of the main

unit and detach the

main unit from the

support arms as shown.

• Disassemble the support arms and store the parts
safely away.
• Keep the mode switch set to SIT-UP ACTIVITY.
• Use the convenient handle for carry around play.

Crossbar

Overhead Toys

Straps

Main Unit with carry handle

Support Arms

There are 3 ways to play with
Elmo's Musical Peek-a-Boo Gym:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Mattel Inc. 333 Continental Blvd. El Segundo, CA (310) 252-2400
NOTE: Changes or modifications not expressively approved by the manufacturer responsible for
compliance could void the user’s authority to operate the equipment.

G5136

BATTERY INSTALLATION:
Please keep these instructions for future reference as they contain important information.
Requires 4 “AA” (LR6) batteries.
Batteries included are for demonstration purposes only.
For longer life use only alkaline batteries.

A

A

B

B

C

D

D

C

Elmo

faces down.

Floor Legs

SOOTHING GYM
STANDARD GYM
SIT-UP ACTIVITY
OFF

Press

Press

Re-insert

2

Press

1

Press

1

• Remove the overhead toys by folding the T-shaped ends

of the straps down and then sliding them back through
the slots on the Main Unit, as shown.

!

To prevent entanglement injury, NEVER place
gym in a crib or playpen. NEVER add strings,
ties or other products to this item.

WARNING:
