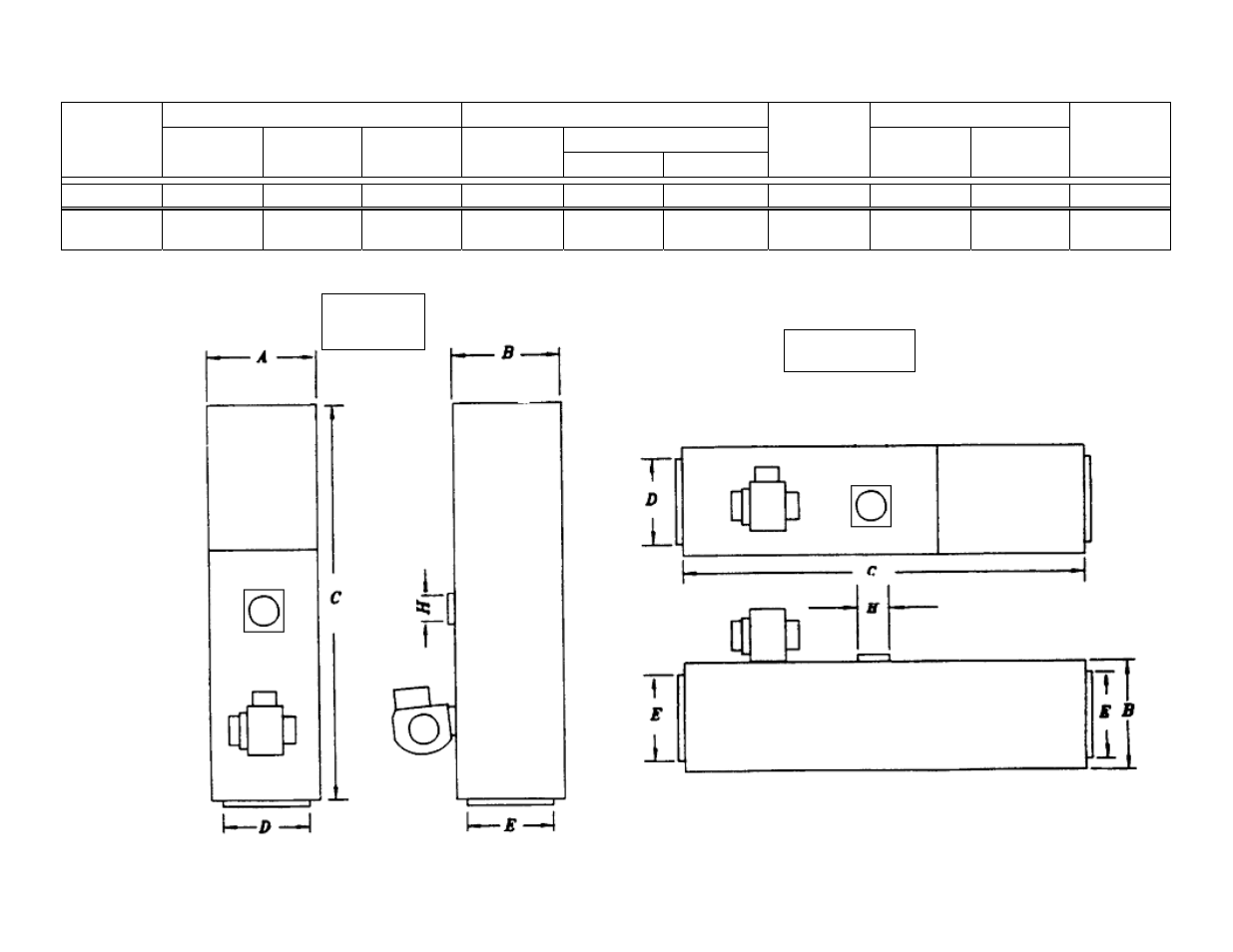

Table A-9 General Dimensions (Inches)
Cabinet Plenum Openings Filter
Return
Furnace
Model
Width
A
Depth
B
Height
C
Supply
D x E Side Bottom
Flue
Diameter
H
Type Size
Shipping
Weight
WML-C 22 22-1/8 55-1/4 19 x 19 18 x 18 18 x 18 5 Permanent 20 x 20 x 1 265
MPL-B 22-1/4 22-1/4 62
20-1/2 x 20-
1/2
18 x 18 18 x 18 6 Permanent 20 x 20 x 1 292
WML-C &
MPL-B
Down flow
WML-C & MPL-B
Horizontal
